Tornado 98168 Marathon 1200 chassis assembly part 2 replacement parts for Model 98168. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
01. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Lock Washer – 0157403. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Wheel 10″ – 0266105. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Ext E Retaining Ring – 0347007. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 1/2-13 x 1″ – 0544108. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 1/4-20 x 1/2″ – 0619214. Tornado 98168 12″ Gallon Self Contained Carpet Extractor QD Coupler 1/4”M x 1/4” FPT – PX515. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Lock Nut – 1509217. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Washer – 1785017. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Washer – 1785019. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Axle – 1914320. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Axle Retaining Clamp – 1914421. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nut – 1914522. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hinge 1/4″ x 2″ – 1914823. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Shroud/Nozzle Mounting Bracket Weldment – 1915524. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nozzle 20″ (order w/19197) – 1916825. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 3/8-16 x 1-1/4″ – 1917128. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 1/4-20 x 1/2″ – 1924029. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Chassis – 1924130. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Spacer – 1925934. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw M4 x 16 – 23192Find genuine Tornado 98168 Marathon 1200 chassis replacement parts for Model 98168, part two of two. This diagram covers the rolling chassis and the nozzle mount — the chassis weldment itself, the axle and its retaining clamp, the 10″ wheels and their E-retaining rings, the 20″ nozzle and the shroud/nozzle mounting bracket weldment, the 1/4″ x 2″ hinge, the quick-disconnect coupler that feeds solution forward, and the spacers, lock nuts and washers that set the ride height. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 01 | Lock Washer | 01574 | $2.99 | |
| 03 | Wheel 10″ | 02661 | $98.99 | |
| 05 | Ext E Retaining Ring | 03470 | $1.99 | |
| 07 | Screw 1/2-13 x 1″ | 05441 | $5.99 | |
| 08 | Screw 1/4-20 x 1/2″ | 06192 | $2.99 | |

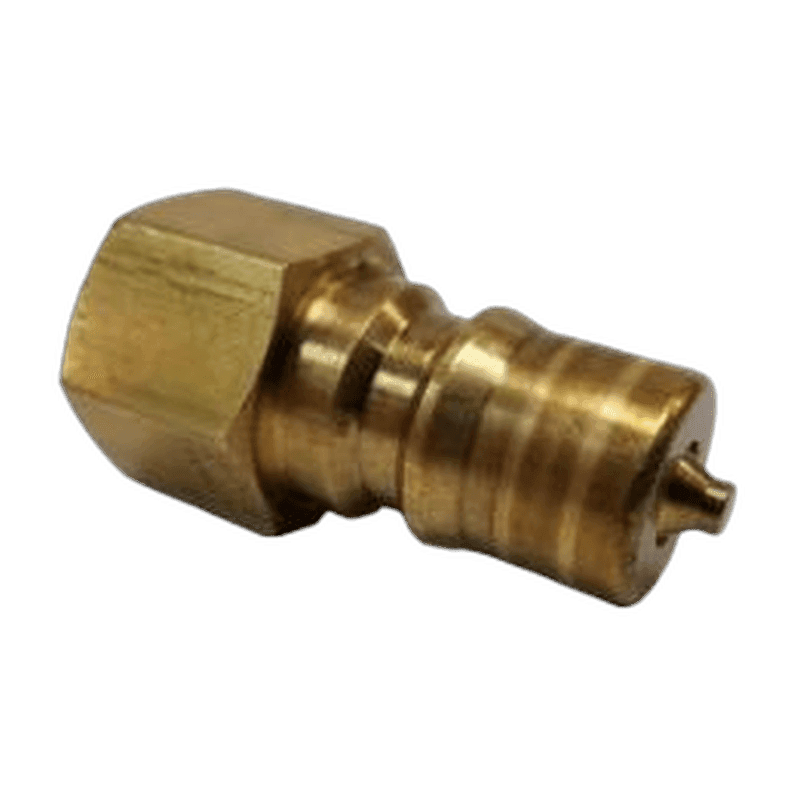

| 14 |  | QD Coupler 1/4”M x 1/4” FPT | PX5 | $12.99 |
| 15 | Lock Nut | 15092 | ||
| 17 | Washer | 17850 | $2.99 | |
| 19 | Axle | 19143 | $24.99 | |
| 20 | Axle Retaining Clamp | 19144 | $17.99 | |
| 21 | Nut | 19145 | ||
| 22 | Hinge 1/4″ x 2″ | 19148 | $61.99 | |
| 23 | Shroud/Nozzle Mounting Bracket Weldment | 19155 | $85.99 | |

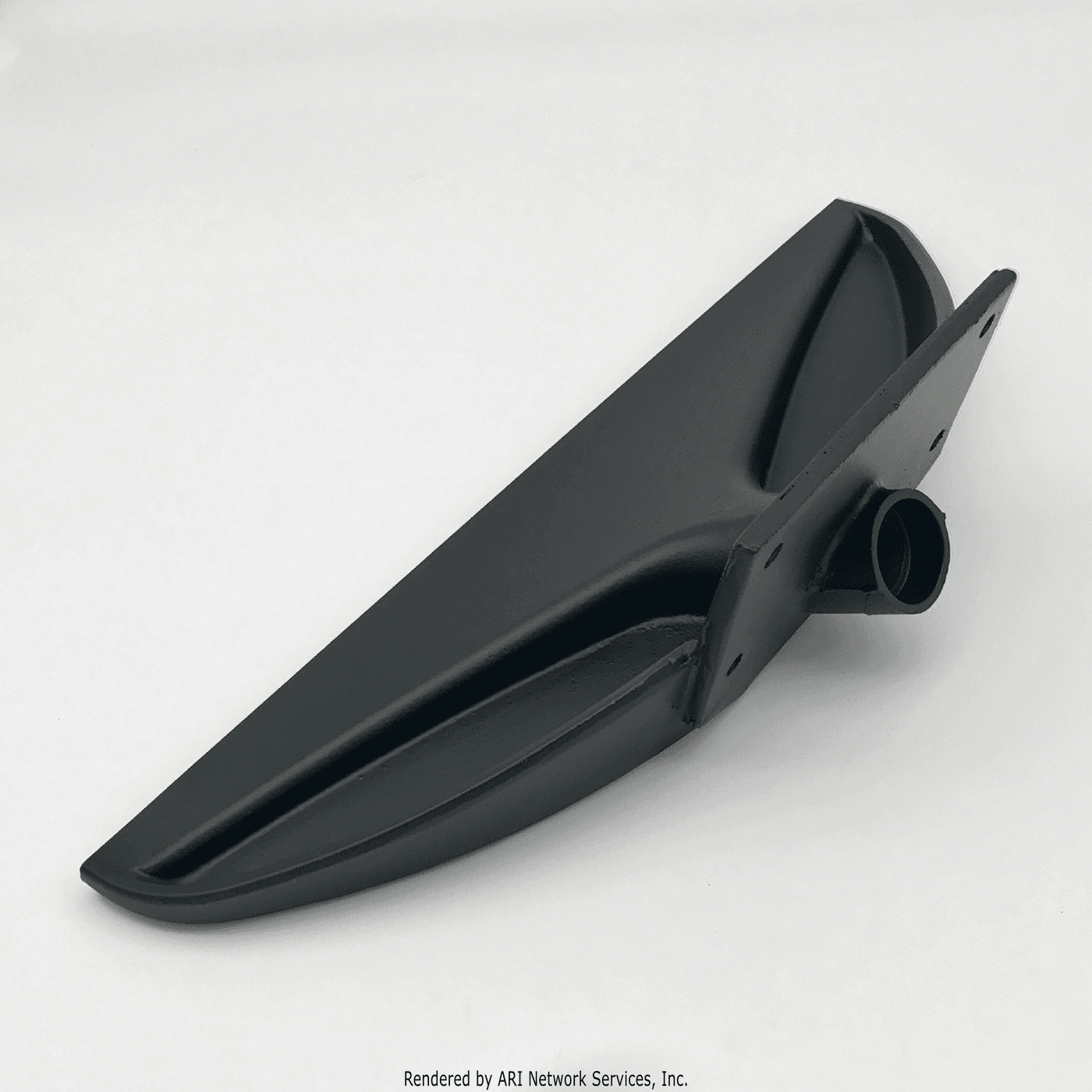

| 24 | Nozzle 20″ (order w/19197) | 19168 | $192.99 | |
| 25 | Screw 3/8-16 x 1-1/4″ | 19171 | $2.99 | |
| 28 | Screw 1/4-20 x 1/2″ | 19240 | $1.99 | |
| 29 | Chassis | 19241 | $521.99 | |
| 30 | Spacer | 19259 | $11.99 | |
| 34 | Screw M4 x 16 | 23192 | $1.99 |
Frequently Asked Questions
One of my 10″ wheels keeps working loose. What holds it on?
An external E-retaining ring on the axle. Once a ring has been forced off and refitted it rarely holds again — replace the ring rather than reusing it, and check the axle retaining clamp while you are in there, because a loose clamp lets the axle walk and pops rings off repeatedly.
Does the 20″ nozzle come as a complete part?
The nozzle is listed as its own part and Tacony notes it should be ordered together with 19197. If you are replacing a damaged nozzle, order both so you are not waiting on the second piece to finish the job.
My machine sits crooked or drags on one side. What should I check?
Check the spacers and washers at the wheel and the shroud/nozzle mounting bracket weldment. A bent bracket or a missing spacer changes nozzle height on one side, which shows up as uneven water pickup long before anyone notices the machine is not sitting level.
Can I get the chassis as a bare weldment?
Yes — the chassis is listed on this diagram as its own part. It is a large item, so call 763-535-0770 before ordering and we will confirm freight and current availability from Tacony for your series.
Browse every assembly for this machine on the Tornado 98168 parts hub, or call 763-535-0770 and we will identify your part from the serial number. Twin City Vacuum, 5415 West Broadway, Crystal, MN 55428.
