Find genuine Tornado 93030 replacement parts for Model 93030. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
10. Cord Retainer Hook B352-6900
1. Serial Number Label X8459
2. Handle Assembly 115V 19984
4. Tornado 93030 Round Tornado Label X9222
3. Cam Handle Kit 33102-KIT
3.1. Cam Lever Stud 33104A
3.2. Cam Lever Handle Metal Washer 33106
3.3. Cam Lever Washer 33103
3.4. Cam Lever Handle 33102
3.5. Cam Lever Hinge Pin 33105A
6. Brush Motor Kit 32369
7. Ground Symbol Label X9214
8. Washer 00851
9. Screw 1/4-20 x 1/2" 33202Tornado 93030 handle lock parts
Find genuine Tornado 93030 handle lock parts and brush motor pulley parts for Model 93030 — the cam lever and its washers, the handle lock hardware, the brush motor pulley and the serial number label. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
8 of these parts also appear on the Handle Assembly diagram.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 1 | Serial Number Label X8459 | X8459 | $3.28 | |
| 2 | Handle Assembly 115V 19984 | 19984 | $508.99 | |
| 3 | Cam Handle Kit 33102-KIT | 33102-KIT | $70.99 | |
| 3.1 | Cam Lever Stud 33104A | 33104A | $4.56 | |
| 3.2 |  | Cam Lever Handle Metal Washer 33106 | 33106 | $6.99 |
| 3.3 |  | Cam Lever Washer 33103 | 33103 | $2.99 |
| 3.4 |  | Cam Lever Handle 33102 | 33102 | $7.99 |
| 3.5 | Cam Lever Hinge Pin 33105A | 33105A | $2.88 | |
| 4 | Tornado 93030 Round Tornado Label X9222 | X9222 | Call 763-535-0770 | |
| 6 | Brush Motor Kit 32369 | 32369 | $527.99 | |

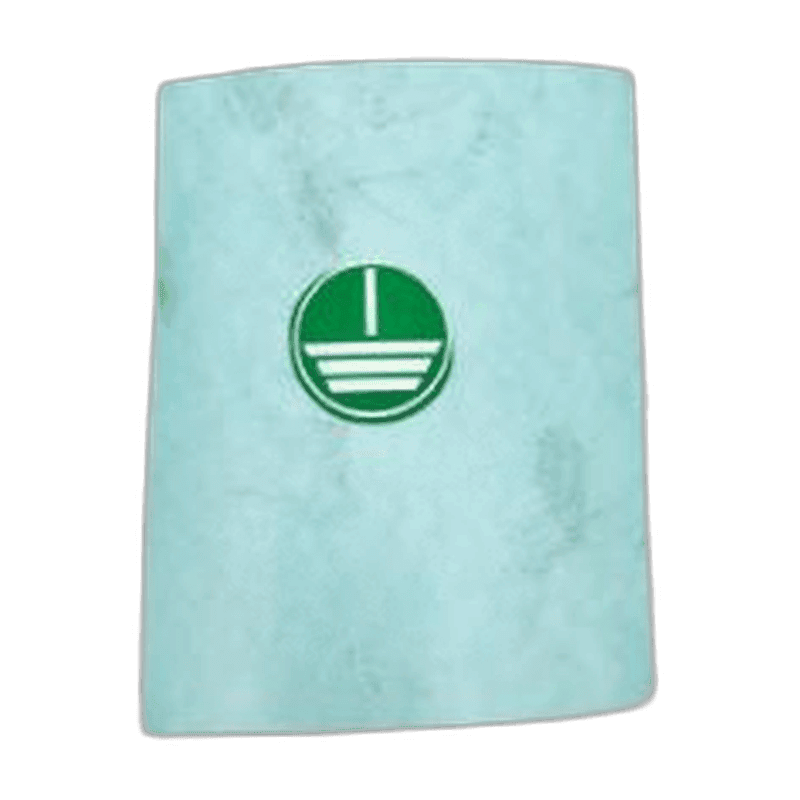

| 7 |  | Ground Symbol Label X9214 | X9214 | $2.99 |
| 8 |  | Washer 00851 | 851 | $2.99 |
| 9 | Screw 1/4-20 x 1/2″ 33202 | 33202 | $1.99 | |
| 10 |  | Cord Retainer Hook B352-6900 | B352-6900 | $4.99 |
Frequently Asked Questions
My Tornado 93030 handle will not stay up — which part do I need?
That is the cam lever assembly on this sheet. The cam lever kit (part 33102-KIT, callout 3) supplies the lever together with its washers and hinge pin, which is usually the right choice because the washers wear alongside the lever. The individual pieces are listed as callouts 3.1 through 3.5 if you only need one.
What does the brush motor pulley do?
The pulley is pressed onto the brush motor shaft and drives the belt that turns the brush roll. A pulley that is cracked, or that has a worn groove, will throw or shred belts. If you are replacing belts often and the belt path is correct, inspect the pulley.
Why is the serial number label on this sheet?
Tacony lists the serial number data plate (part X8459) on this sheet. It carries the serial number and electrical rating and is what identifies the machine for parts lookups. If it is missing or unreadable, call 763-535-0770 and we can help identify the machine another way.
How do I order Tornado 93030 handle lock parts?
Click any dot on the diagram or any part number in the table to open that part, then add it to your cart. Or call us at 763-535-0770 — our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing Tornado equipment since 1956 and can confirm the right part for your machine.
Browse every assembly on the Tornado 93030 Carpetkeeper parts page, or call us at 763-535-0770. Twin City Vacuum has been selling and servicing Tornado equipment since 1956 at 5415 West Broadway, Crystal, MN 55428. Machine specifications are published by the manufacturer at tornadovac.com. No restocking fee.
