Tornado 98169 Marathon 1200 chassis assembly replacement parts for Model 98169, sheet 1 of 2. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.
4. Washer – 033216. Nyloc Nut – 038689. Spring – 1084110. Washer – 1121911. Washer – 1295716. Nut – 1667322. Axle Retaining Clamp – 1914426. Screw #10-24 x 1-1/4" – 1920527. Shroud Latch Bracket – 1923931. Exhaust Hose Fitting – 1926032. Wing Nut – 1930133. Washer – 1961635. Pump 100 P.S.I. 230VAC 50/60 Hz – 3222736. Nylon Connector QD F 3/8 Tube x 1/4” Thread – 32186Find genuine Tornado 98169 Marathon 1200 chassis assembly replacement parts for Model 98169. The chassis is the structural frame everything else mounts to, and it is split across two drawings because a single sheet cannot show the frame and all its mounted hardware legibly. This first sheet shows the chassis tub with the running gear below it and the handle bar across the top, and it carries the hardware that mounts into the frame: the solution pump and its nylon quick-disconnect connector, the exhaust hose fitting, the axle retaining clamp, the shroud latch bracket and its spring, the motor protection sponge, and the washers, nuts and wing nut that hold them. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 4 |  | Washer | 03321 | $2.99 |

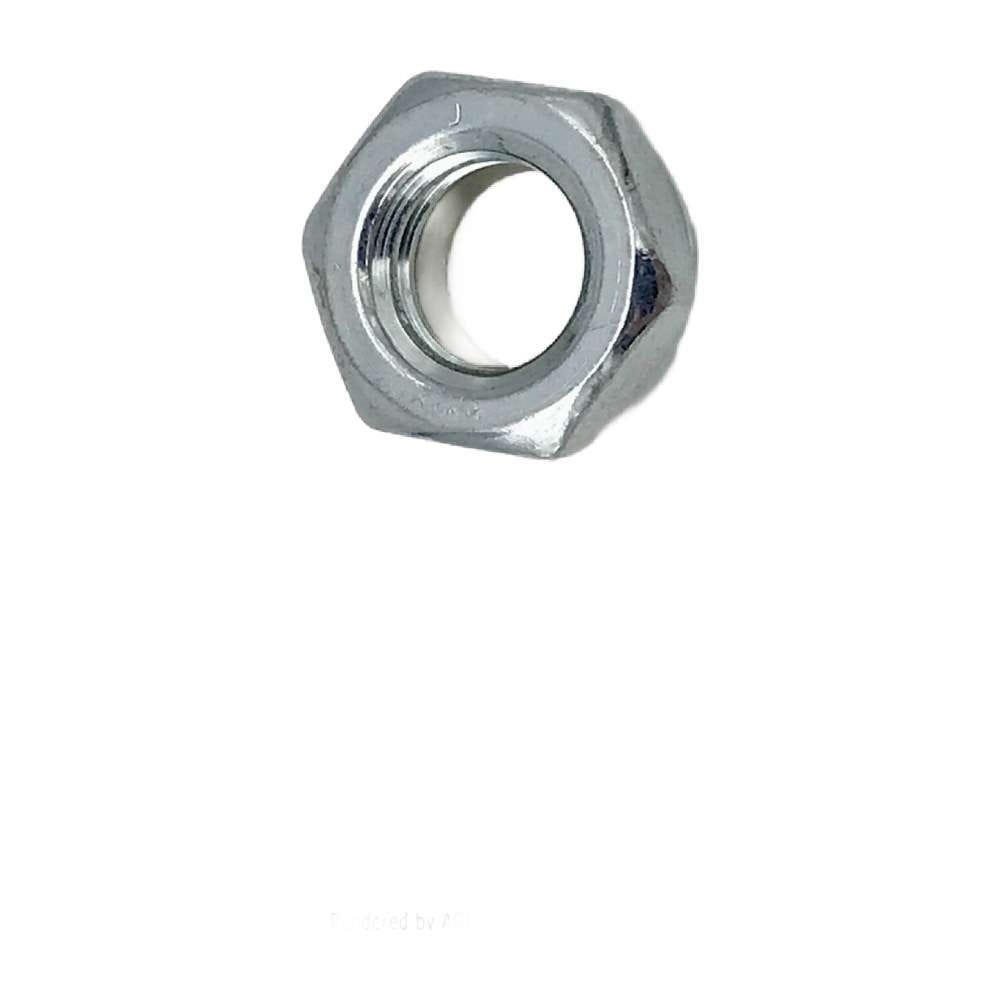

| 6 |  | Nyloc Nut | 03868 | $1.99 |

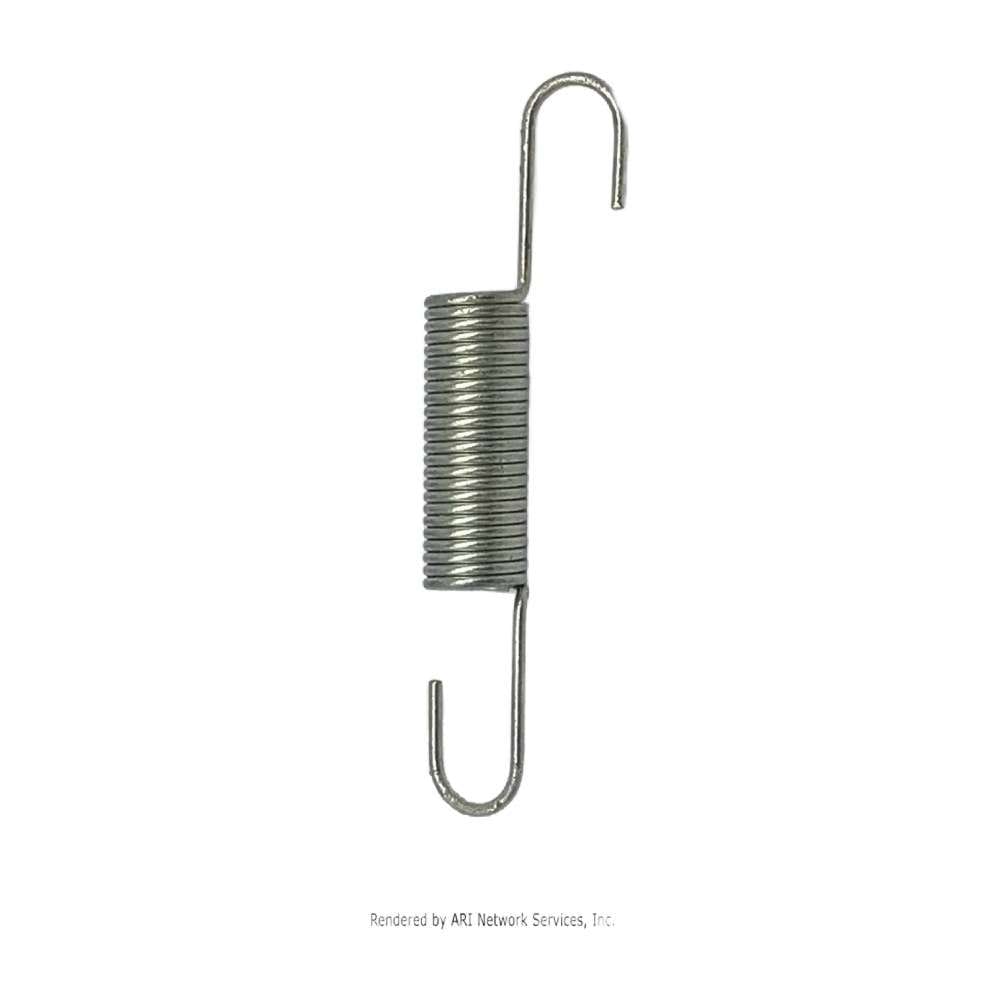

| 9 |  | Spring | 10841 | $28.99 |
| 10 |  | Washer | 11219 | $2.99 |

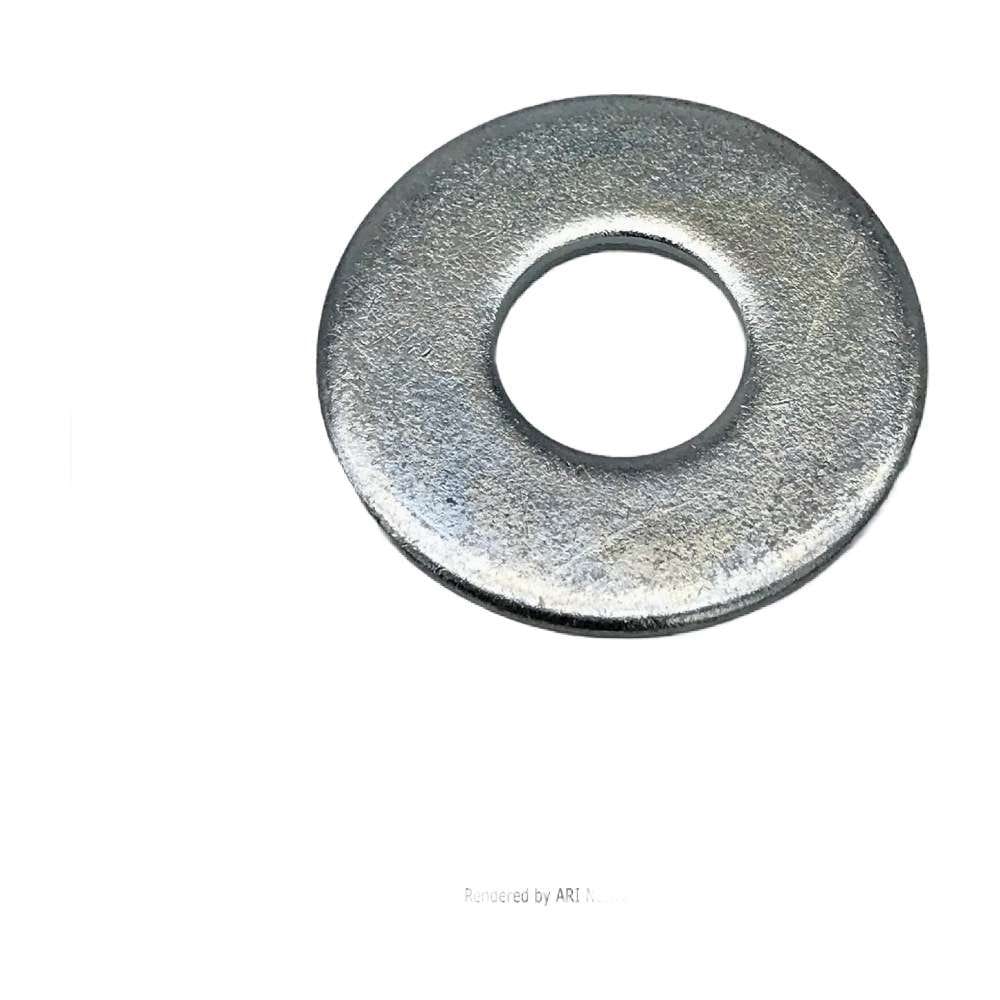

| 11 |  | Washer | 12957 | $2.99 |
| 16 | Nut | 16673 | $1.99 | |

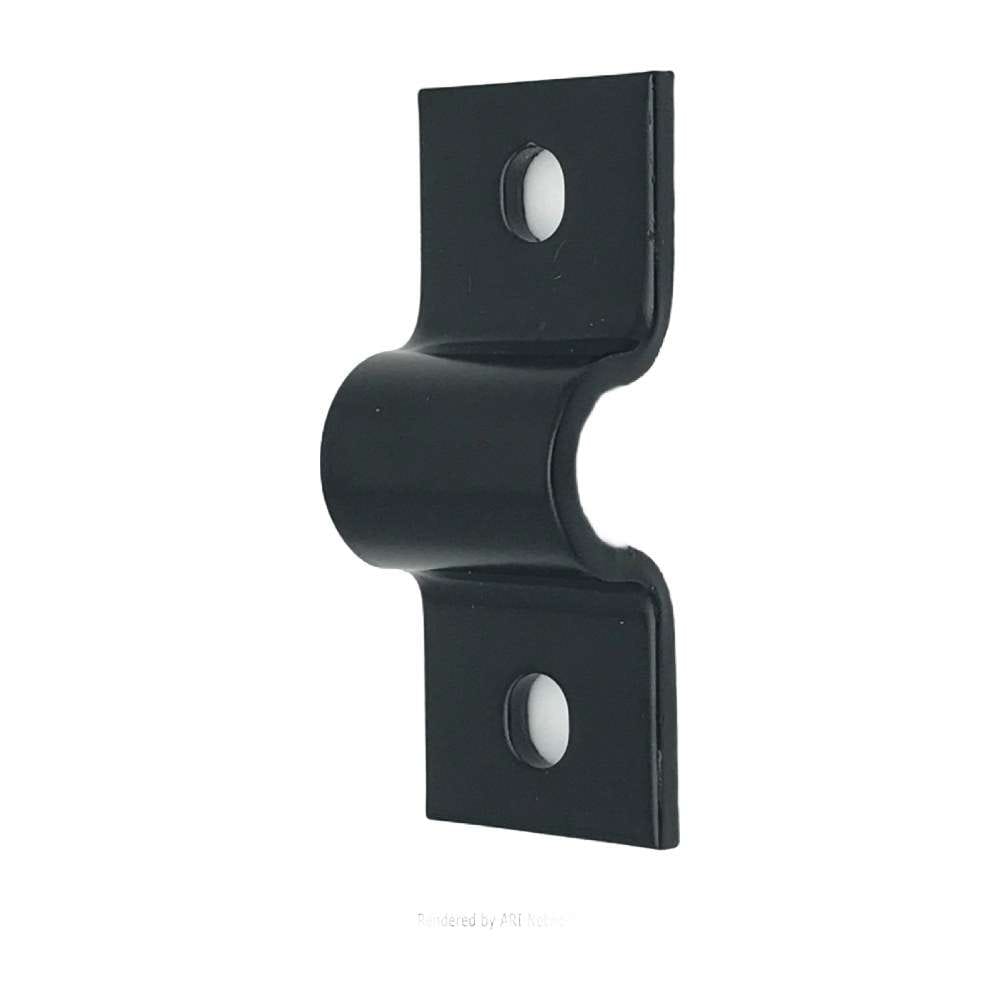

| 22 |  | Axle Retaining Clamp | 19144 | $17.99 |
| 26 |  | Screw #10-24 x 1-1/4" | 19205 | $1.99 |
| 27 | Shroud Latch Bracket | 19239 | $19.99 | |
| 31 | Exhaust Hose Fitting | 19260 | $35.99 | |
| 32 | Wing Nut | 19301 | $4.99 | |
| 33 |  | Washer | 19616 | $2.99 |
| 35 | Pump 100 P.S.I. 230VAC 50/60 Hz | 32227 | Call for price | |

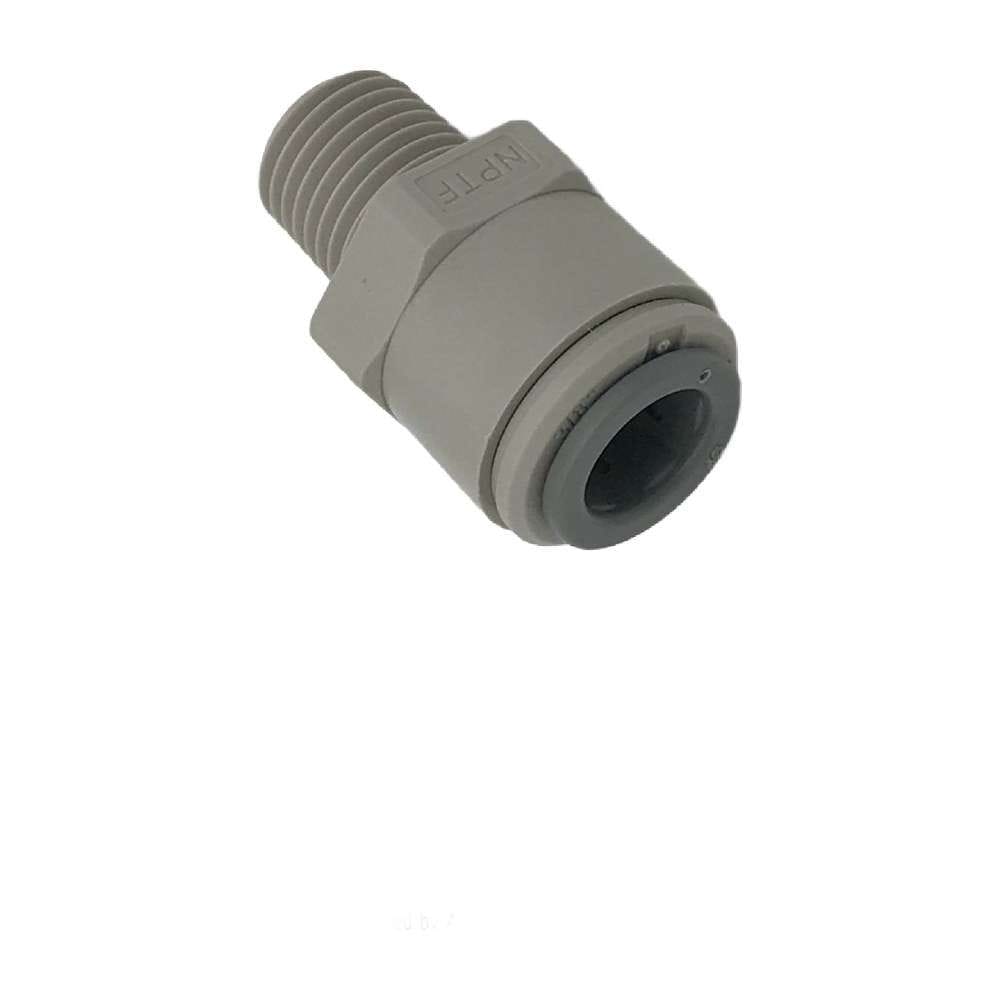

| 36 |  | Nylon Connector QD F 3/8 Tube x 1/4” Thread | 32186 | $8.99 |
| 37 | Motor Protection Sponge | 32527 | $9.99 | |
| 38 | Washer | 30075 | Call for price |
