The consumable side of the Tornado CV 48/2, the 19-inch HEPA filter upright sold as model 91419. Bags, the sealed HEPA cartridge, the motor intake filter, the drive belt and the two roller brushes made for this width — all listed straight from the manufacturer’s accessories sheet for the machine.
Match the number printed beside an item on the drawing to the same number in the table. A red dot names its part on hover, and each row links to the listing.

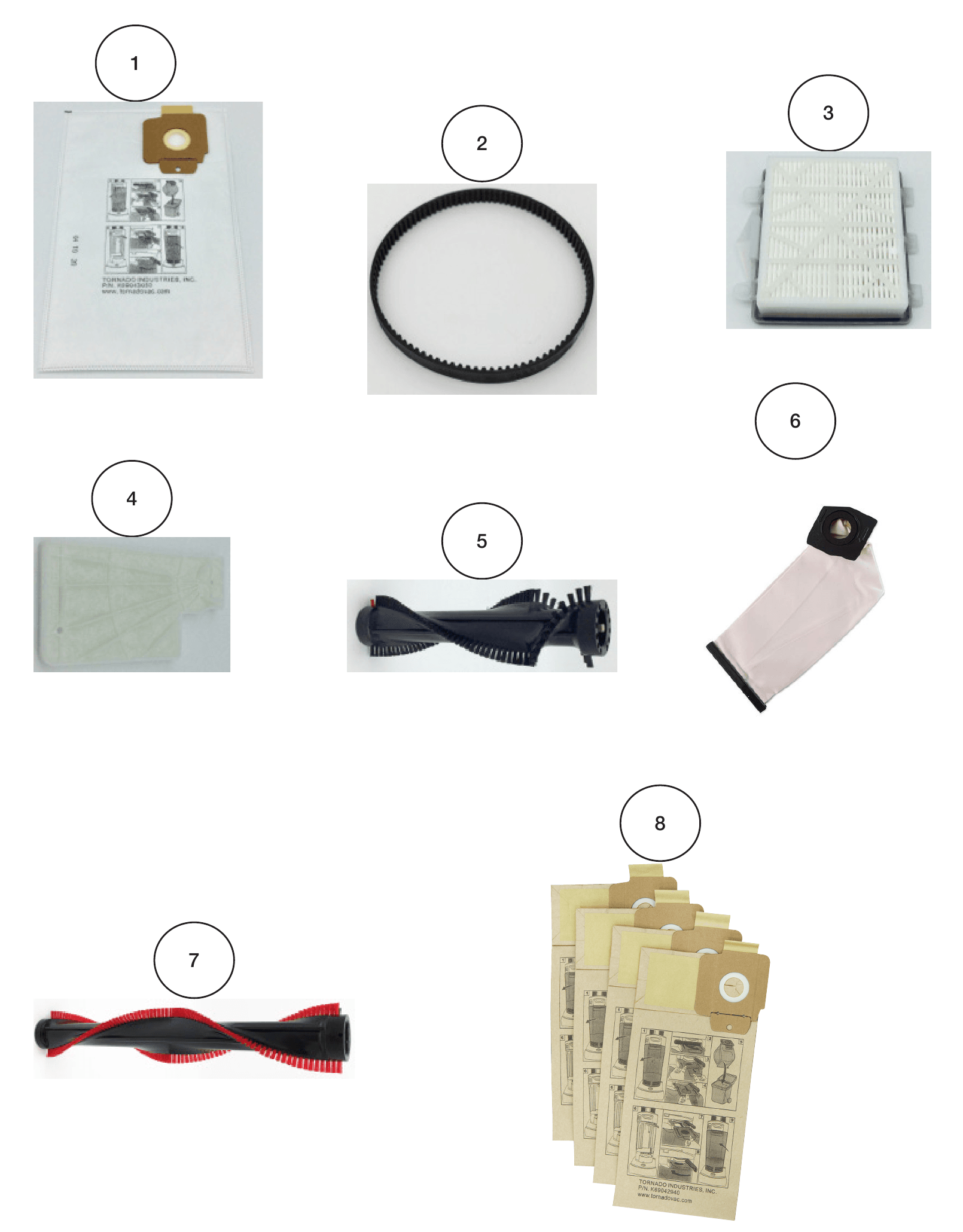

Tornado CV 48/2 Accessories and Consumables Diagram
1. Tornado CVD Clean Breeze Disposable Filter Bag 10-Pack – K690430502. Tornado CVD Dual Motor Vacuum Belt – K634846003. Tornado Sealed HEPA Filter – K288928604. Tornado Intake Filter – K573161105. Tornado 19-Inch Black Roller Brush – K476248906. Fabric Vacuum Filter Bag – K690430107. Tornado 19-Inch Red Bristle Roller Brush – K476248808. Tornado Paper Vacuum Bag 10 Pack – K69042940Most of what is on this page fits the 15-inch CV 38/2 as well. The bags, the HEPA cartridge, the intake filter and the belt are all common parts, which matters if a building runs both sizes: stock one set of consumables and it covers the fleet. The two roller brushes are the exception and are cut specifically for a 19-inch head.
On bags, the choice is between buying them and washing them. The Clean Breeze disposable and the plain paper bag both come ten to a box; the cloth bag is a single item you empty and refit. All three seal into the same compartment and none of them changes what the HEPA cartridge has to do.
| # | Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|---|
| 1 |  | Tornado CVD Clean Breeze Disposable Filter Bag 10-Pack K69043050 | K69043050 | 1 | $11.99 | View part |
| 2 |  | Tornado CVD Dual Motor Vacuum Belt K63484600 | K63484600 | 1 | $18.99 | View part |
| 3 |  | Tornado Sealed HEPA Filter K28892860 | K28892860 | 1 | $48.99 | View part |
| 4 |  | Tornado Intake Filter K57316110 | K57316110 | 1 | $2.99 | View part |

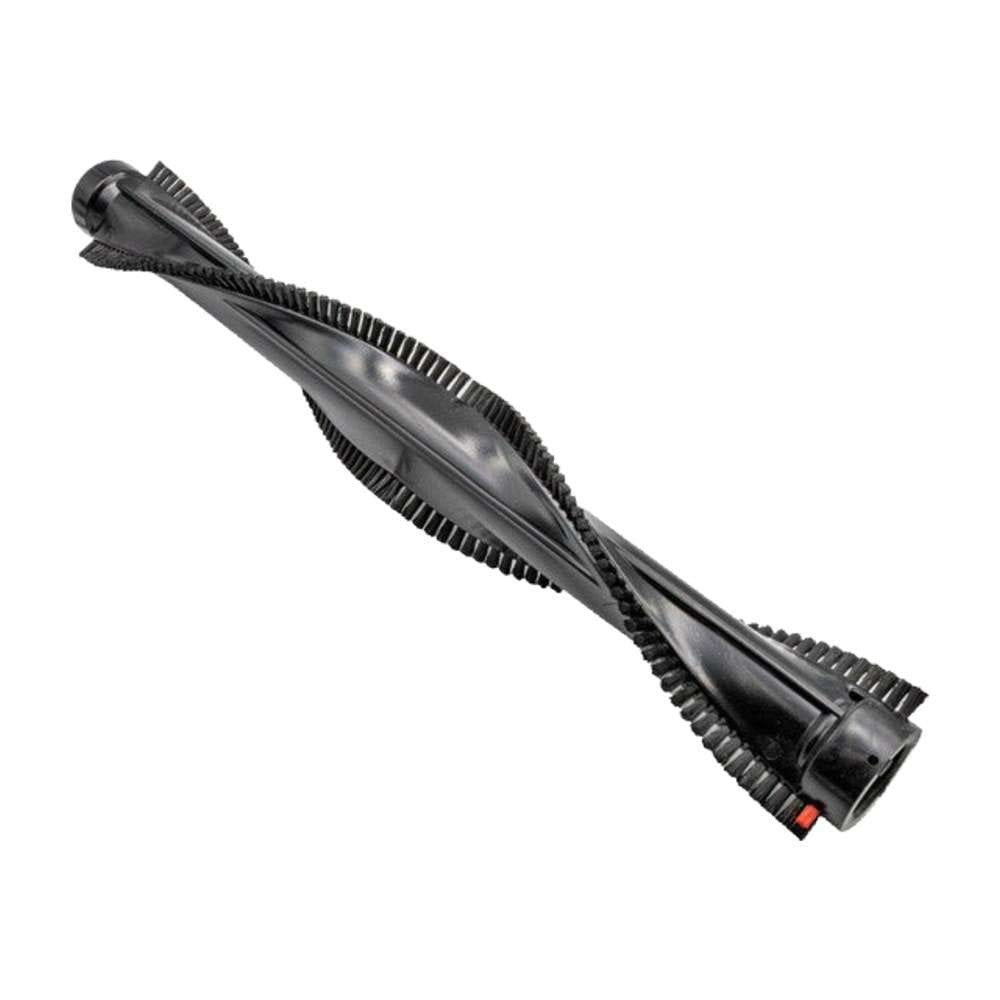

| 5 |  | Tornado 19-Inch Black Roller Brush K47624890 19-inch soft black bristle. | K47624890 | 1 | $67.99 | View part |
| 6 |  | Fabric Vacuum Filter Bag K69043010 | K69043010 | 1 | $97.99 | View part |

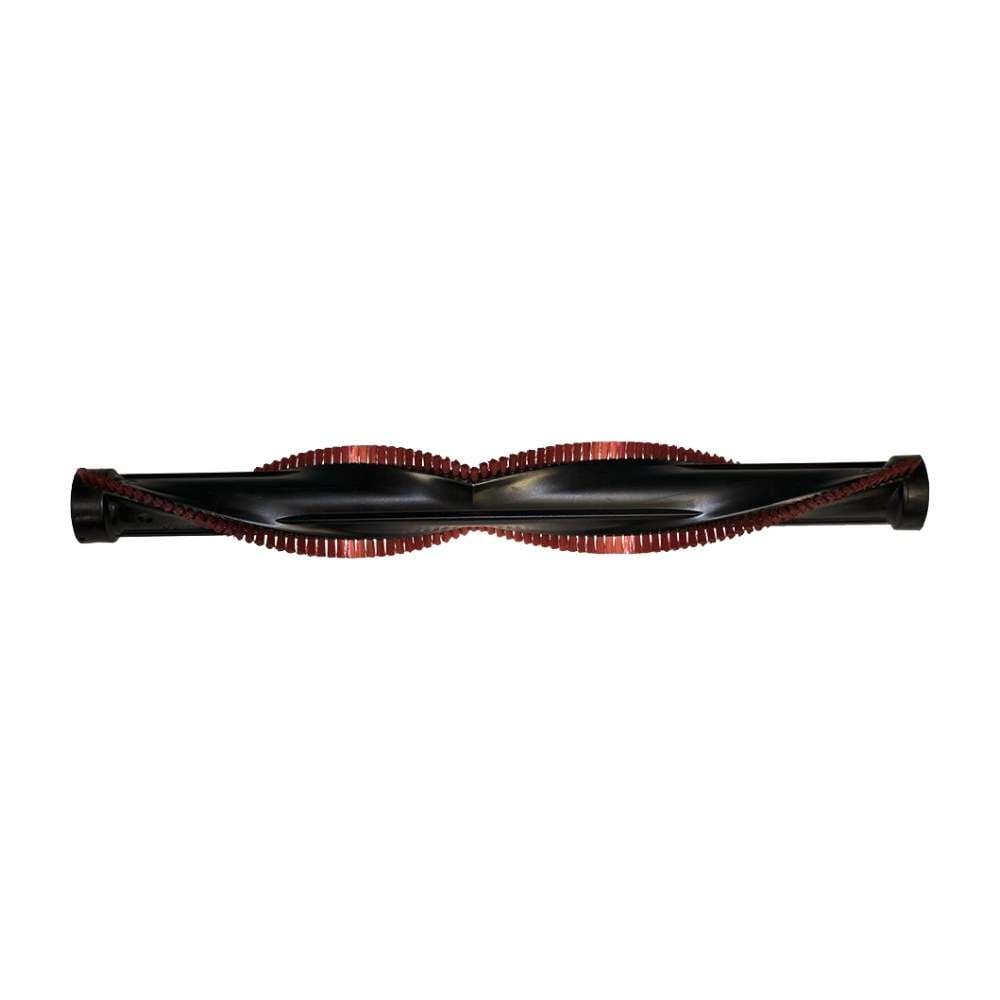

| 7 |  | Tornado 19-Inch Red Bristle Roller Brush K47624880 19-inch stiff red bristle. The brush head drawing prints this number as K46724880, which is a typing error in the parts book. | K47624880 | 1 | $80.99 | View part |
| 8 |  | Tornado Paper Vacuum Bag 10 Pack K69042940 | K69042940 | 1 | $10.99 | View part |
Frequently asked questions
Why does this sheet show only two roller brushes when the 15-inch shows three?
Tornado lists an anti-static roller for the narrow machine and does not list one at 19 inches. What you get for this width is the black soft roller K47624890 and the red stiff roller K47624880. If you specifically need an anti-static roller in a 19-inch head, ring us rather than assuming the 15-inch number will fit — it will not.
Are the bags and filters the same as the CV 38/2 uses?
Yes. Bags, the sealed HEPA cartridge, the motor intake filter and the drive belt are common across both widths of this platform, which is convenient if you run a mixed fleet: one box of bags and one shelf of filters covers both machines. Only the roller brushes are width-specific.
How do I know when the belt needs changing?
A tired belt shows up as a roller that stalls under load or stops altogether while the vacuum motor keeps running, and often as a burnt-rubber smell. K63484600 is inexpensive enough that replacing it on suspicion is reasonable; it is also worth checking the roller bearings at the same time, because a seizing roller is what destroys belts.
Can I run this machine without a bag?
No. The bag is the primary filtration stage on a CV 48/2 and running without one loads the sealed HEPA cartridge directly with grit, which will choke it quickly and is expensive to put right. If you do not want to buy disposables, fit the reusable cloth bag K69043010 instead.
The mechanical breakdowns for this machine are indexed on the Tornado CV 48/2 parts hub, and the head these rollers fit is detailed on the CV 48/2 brush head parts page.
