This page covers the 19-inch brush head fitted to the Tornado CV 48/2, model 91419, as The drawing shows it in the machine’s own parts book. A 19-inch head clears more floor per pass, which is the whole reason to buy this size, and it also means the roller, the sole plate and the outer shell are parts you will not find on the narrower CV 38/2.
Work from the drawing: locate the item, read the number stamped next to it, then find that number in the table. Hovering any red dot names the position without scrolling. Each entry links through to the part.

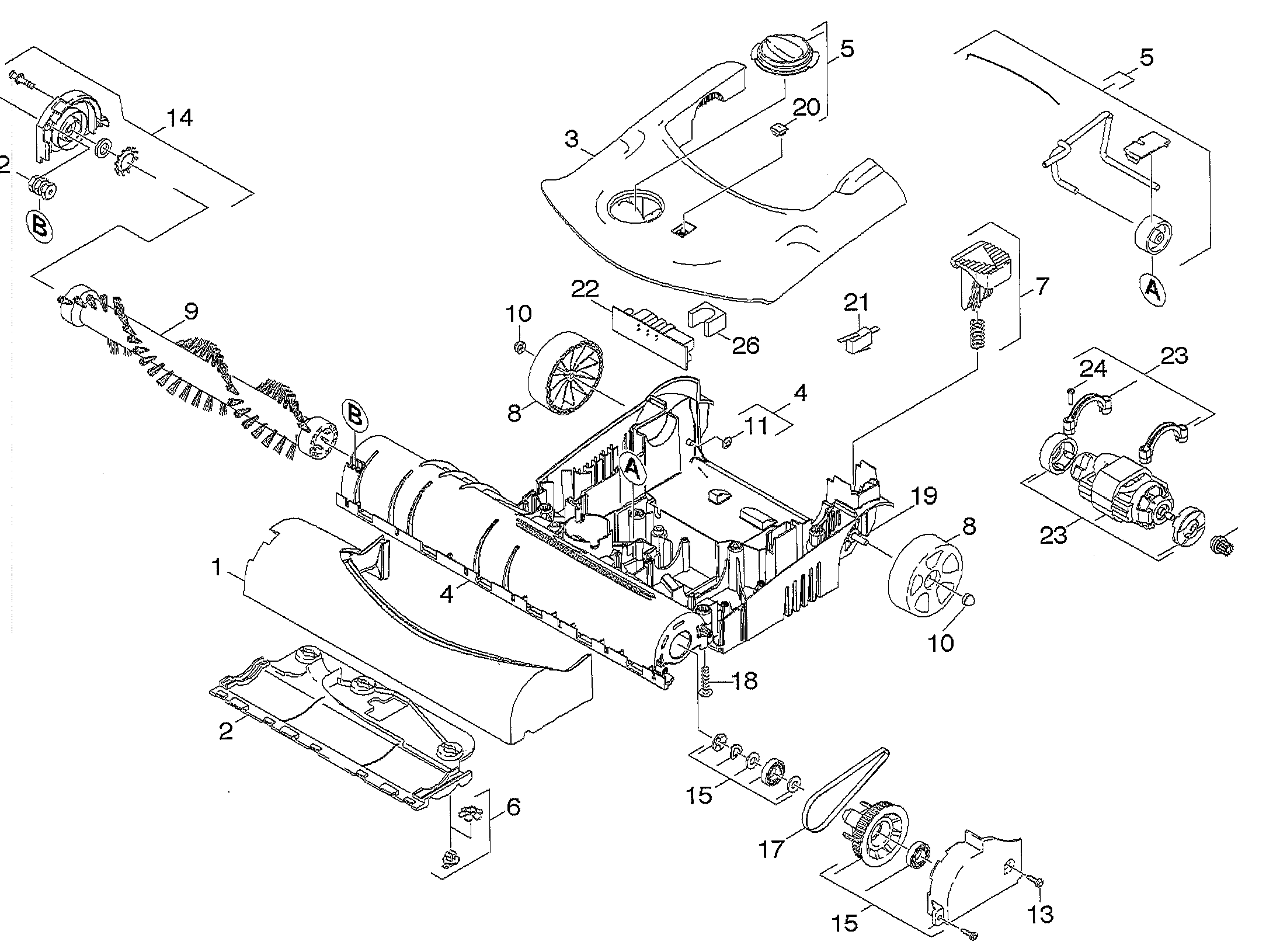

Tornado CV 48/2 Brush Head Parts Diagram
1. Tornado 19-Inch Bumper – K5033457010. Lock Washer – K6343187010. Lock Washer – K6343187011. Lock Washer – K6343119012. Screw Union Part – K5401288013. Screw M4 x 12 – K7303106014. Brush Side Cap – K4063892015. Complete Belt Side Covering Cap – K4063774015. Complete Belt Side Covering Cap – K4063774017. Tornado CVD Dual Motor Vacuum Belt – K6348460018. Tornado CV 38/2 & 48/2 Screw M5 x 25 – K6303200019. Axle Shaft – K941217802. Tornado 19-Inch Glide Sole Bottom Plate – K5059142320. Tornado CV 38/2 & 48/2 Brush Head Lens – K5033452021. Tornado Microswitch – K6630135022. Tornado CV 38/2 & 48/2 Circuit Board – K6682291023. Tornado Brush Head Motor – K4613009023. Tornado Brush Head Motor – K4613009024. Tornado Screw M4 x 22 – K7303096025. Tornado Pinion – K5033459026. Tornado Cap – K628657303. Tornado CV 38/2 & 48/2 Top Housing – K406200804. Tornado 19-Inch Bottom Housing – K406200904. Tornado 19-Inch Bottom Housing – K406200905. Tornado CV 38/2 & 48/2 Complete Adjusting Wheel – K451531105. Tornado CV 38/2 & 48/2 Complete Adjusting Wheel – K451531106. Tornado CV 38/2 & 48/2 Lock Piece Kit (4 Sets) – K288908407. Complete Foot Pedal – K448126507. Complete Foot Pedal – K448126508. Rear Wheel – K551537408. Rear Wheel – K551537409. Tornado 19-Inch Black Roller Brush – K47624890Position 9 carries two roller brushes rather than one. K47624890 is the black soft-bristle roller; K47624880 is the red hard-bristle roller. Which one a machine left Tornado with depends on the order, so check what is in yours before buying — the two are interchangeable in fitment and quite different in how aggressive they are on carpet.
Read the numbers on this sheet against the accessories sheet if anything looks odd. One entry on the brush head drawing does not exist in the current parts list at all, and the note under the table explains what to order instead.
Frequently asked questions
Why does the drawing show K46724880 when you sell K47624880?
Because the brush-head sheet has a typing error. The drawing prints the red roller at position 9 as K46724880, and that number returns nothing anywhere in the current parts list. The number that exists, describes the identical brush and appears on the accessories sheet for this very machine is K47624880 — the middle two digits transposed. Order K47624880. If a supplier has told you K46724880 cannot be found, this is why.
Black roller or red roller — which does my machine want?
Both are correct for the 19-inch CV 48/2 and both live at position 9. K47624890 is the softer black-bristle roller, which suits carpet that is plush or delicate and cuts noise. K47624880 is the stiff red-bristle roller, which digs harder into dense commercial loop pile. Neither will fit a 15-inch machine.
Can I use CV 38/2 brush head parts on this machine?
Most of them, yes. The brush motor, belt, microswitch, main board, adjusting wheel, foot pedal, rear wheels, axle shaft and every screw and washer are common to both widths. Four items are not: the bumper, the glide sole, the bottom housing and the black top cover are all cut for 19 inches on this machine and carry their own numbers.
Why do three parts show Call for price instead of a figure?
The M5 screw set K63032000, the brush head lens K50334520 and the cap K62865730 do not appear in the Tornado dealer price file, so we have nothing to publish. They are still supplied. Send us the number and we will price it from the parts book.
