The harness assembly of the Tornado Zephyr cordless backpack vacuum (model TV570-Q03-U) — the switch and wiring assembly, the wearable harness with its straps, and the screws that hold it to the machine. Taken from the factory parts sheet dated 15 February 2024.
Three parts, and between them they cover both things that stop a backpack being usable: the control that turns it on and the straps that carry it. For the motor, electronics and filtration see the Zephyr main unit parts page; for bags, hose, wand and tools see the Zephyr accessories page.
65. Harness Assembly – K6541018366. Screw M8 x 16 – K7306254037. Switch Harness and Wiring Assembly, Zephyr – K464573603 parts, 3 callouts, 3 dots. The harness sheet is short because the harness is supplied as complete assemblies rather than as individual straps and buckles.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|

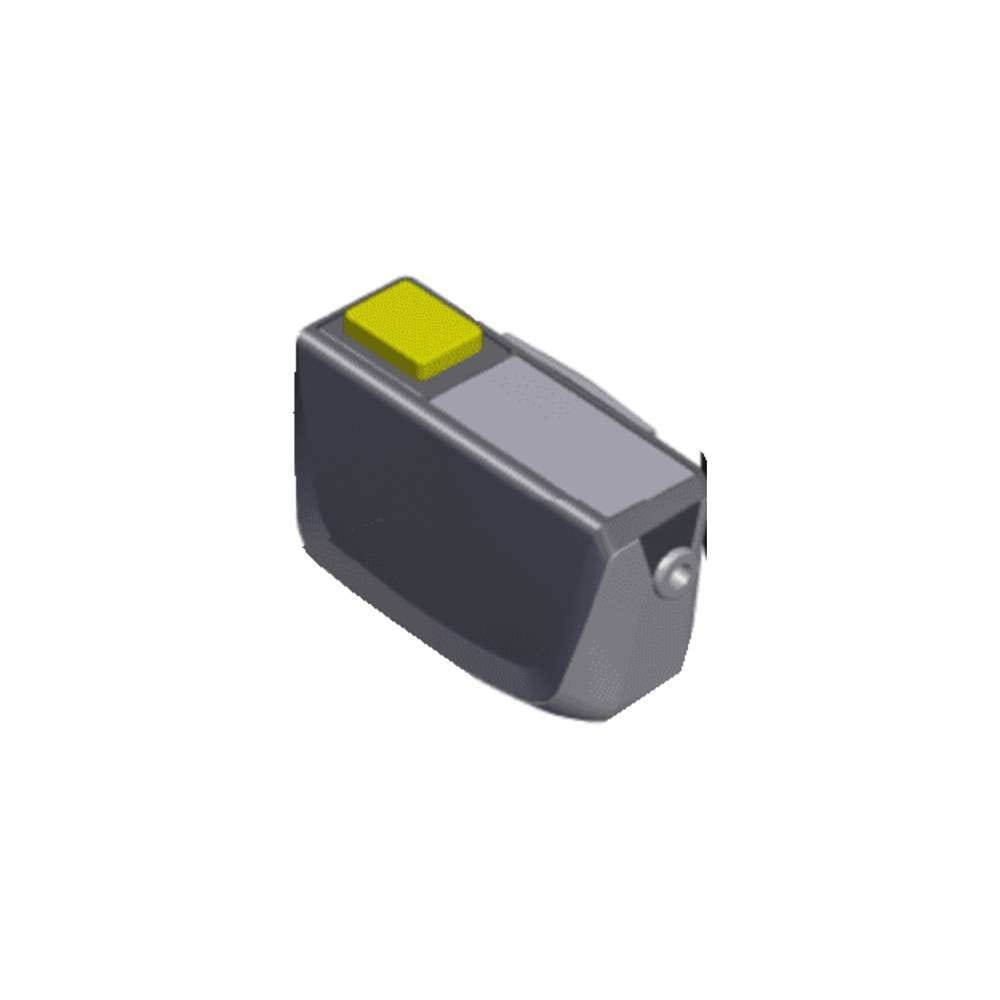

| 37 |  | Switch Harness and Wiring Assembly, Zephyr | K46457360 | $153.99 |

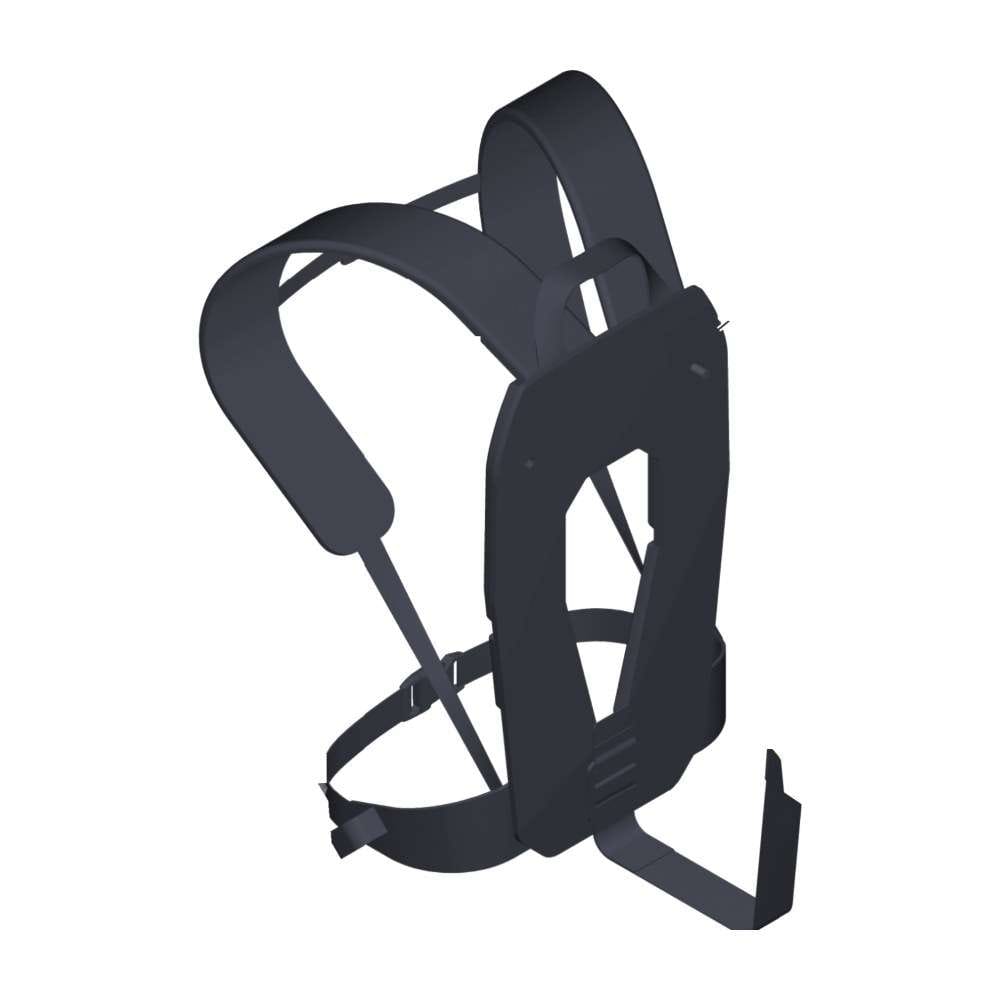

| 65 |  | Harness Assembly | K65410183 | $227.99 |
| 66 |  | Screw M8 x 16 | K73062540 | $0.99 |
Frequently Asked Questions
My Zephyr does not respond to the switch. Is it the switch harness?
Possibly. Rule out the battery first by trying a known-good pack, then check the battery control cable. If the machine is dead with a good pack and good cables, the switch harness and wiring assembly (K46457360) or the control board are next.
Can I buy individual straps or buckles?
No. Tornado supplies the harness as one assembly (K65410183) with its straps and padding. It is the part that wears fastest on a machine in daily use, so it is worth inspecting monthly.
What holds the harness to the machine?
Two M8 x 16 screws (K73062540). They carry the entire weight of the machine, so check them at every service and replace them whenever the harness is changed — they cost pennies.
Does the harness come with the strap magnet?
No. The magnet is K66530260 and appears on the main unit sheet, not this one.
Not sure which part you need? Call Twin City Vacuum on 763-535-0770 with your model number and the callout number from the diagram. See all Tornado Zephyr parts. See the full Tornado Zephyr parts hub.
