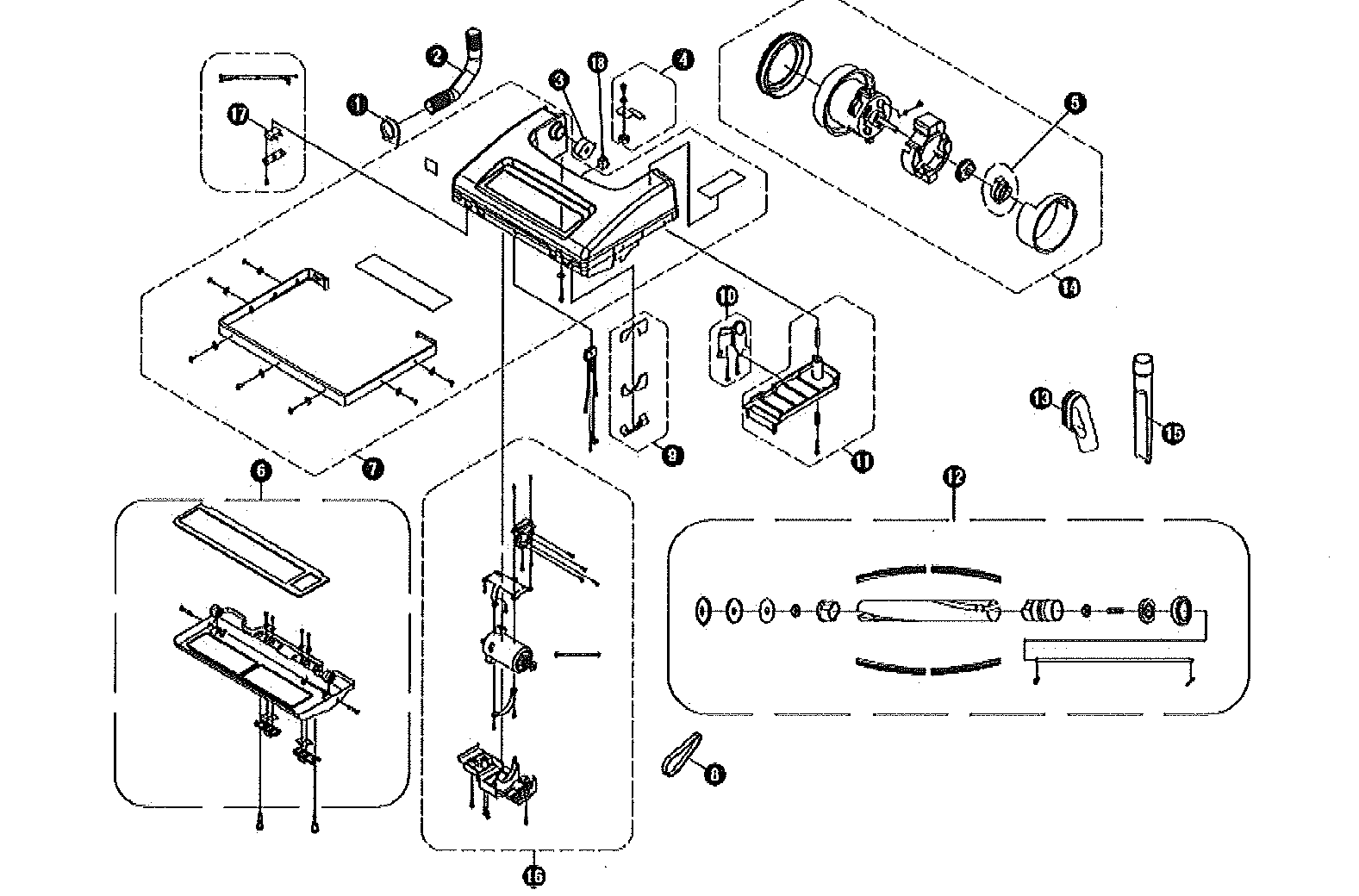

Brush base parts for the Tornado CK 14/2 Pro commercial upright, model 98152. This section covers the nozzle, the brush roll and belt, the shoe, and both motors — the suction motor and the dedicated brush motor that gives this machine its second number. Hover a red marker on the diagram to see what it is, or click it to open that part.
1. Hose Collar 393222. Tornado Brush Base Hose 393233. Brush Base Collar 393244. Detent Spring 393255. Motor Sleeve 393266. Shoe Assembly 393277. Nozzle Housing Assembly 393448. Poly-Vee Power Nozzle Belt B350-25149. Brush Support 3932910. Belt Support Bracket 3933011. Belt Cover Assembly 3933112. Brush Assembly 3933413. Dusting Brush 9014314. Vacuum Motor with Cover 3940115. Crevice Tool 9014216. Brush Motor 3933817. Circuit Breaker 3933918. Brush Switch 39346Baseplate Stud CM011012Baseplate Stud CM011012Parts on this diagram
| # | Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|---|
| 1 |  | Hose Collar | 39322 | 1 | $1.99 | View part |
| 2 |  | Brush Base Hose | 39323 | 1 | $15.99 | View part |
| 3 |  | Brush Base Collar | 39324 | 1 | $1.99 | View part |
| 4 | | Detent Spring | 39325 | 1 | $2.99 | View part |
| 5 | | Motor Sleeve | 39326 | 1 | $2.99 | View part |
| 6 |  | Shoe Assembly | 39327 | 1 | $44.99 | View part |
| 7 | | Nozzle Housing Assembly | 39344 | 1 | $38.99 | View part |
| 8 |  | Poly V Belt | B350-2514 | 1 | $8.99 | View part |
| 9 | | Brush Support | 39329 | 1 | $10.99 | View part |
| 10 | | Belt Support Bracket | 39330 | 1 | $3.99 | View part |
| 11 |  | Belt Cover Assembly | 39331 | 1 | $20.99 | View part |
| 12 | | Brush Assembly | 39334 | 1 | $58.99 | View part |
| 13 |  | Dusting Brush | 90143 | 1 | $5.99 | View part |
| 14 |  | Vacuum Motor w/Cover | 39401 | 1 | $142.99 | View part |
| 15 |  | Crevice Tool | 90142 | 1 | $7.99 | View part |
| 16 | | Brush Motor | 39338 | 1 | $85.99 | View part |
| 17 | | Circuit Breaker | 39339 | 1 | $6.99 | View part |
| 18 | | Brush Switch | 39346 | 1 | $6.99 | View part |
| — |  | Stud Screw — listed without a callout number; it carries two markers on the diagram. | CM011012 | 1 | $2.99 | View part |
Prices shown are current manufacturer list. Twin City Vacuum has been selling and servicing Tornado equipment since 1956 — call 763-535-0770 with your model and serial number if you want a part confirmed before you order.
Bag housing parts for this machine · All Tornado CK 14/2 Pro parts
Frequently Asked Questions
Which machine does this diagram cover?
The Tornado CK 14/2 Pro, model 98152. Most of these parts are also catalogued for the Powr-Flite Borelli Dual Pro (PV160-W14-U), which is built on the same platform under a different brand. The poly-V belt reaches much wider still, across more than thirty Riccar and Simplicity machines.
My brush has stopped turning. Where do I start?
In this order: the poly-V belt B350-2514, then the circuit breaker 39339 – clear the roll and reset it, because a jam is the usual cause – then the brush switch 39346. Only when all three check out is the brush motor 39338 the suspect.
Why does this machine have a separate brush motor?
That is what the 2 in 14/2 means. A dedicated brush motor keeps agitator speed up in deep pile instead of bogging down the way a belt driven off the suction motor does, and it leaves the suction motor free to move air.
Will the nozzle housing fit my CK 14/1 Pro?
No. The nozzle housing 39344 is catalogued for the 98152 alone, because a housing built around a driven brush roll has to carry the brush motor and its mountings. The machines look alike – order from the plate.
One row has no number and two markers. What is that?
The stud screw, CM011012. The factory lists it against this sheet without a callout number, and it is used in two places, so it carries two markers on the drawing. Both open the same product.
