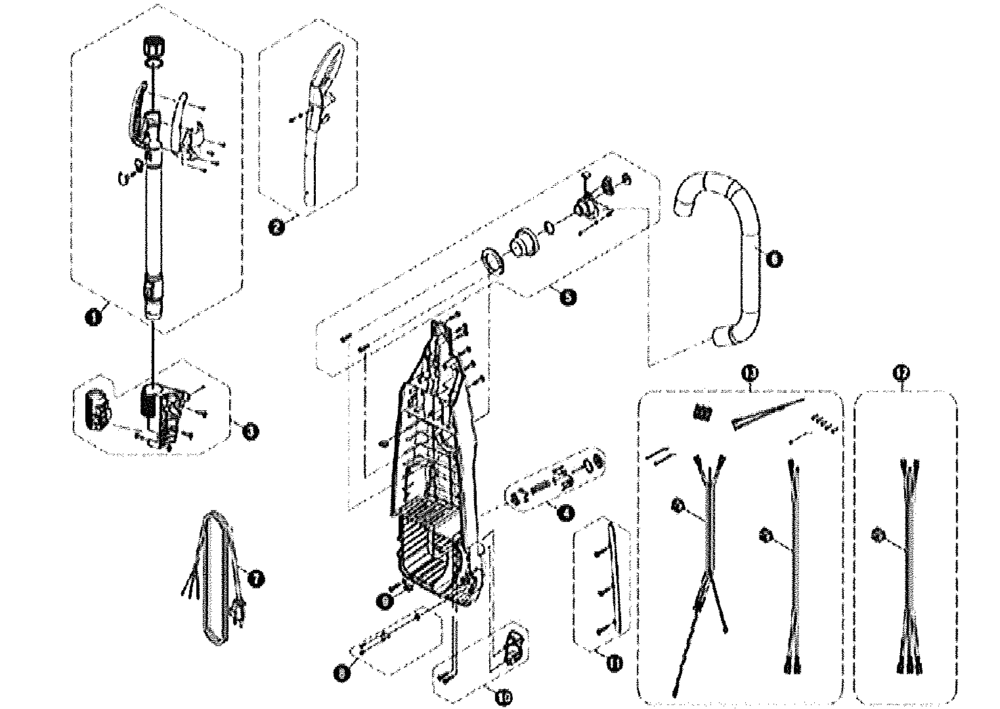

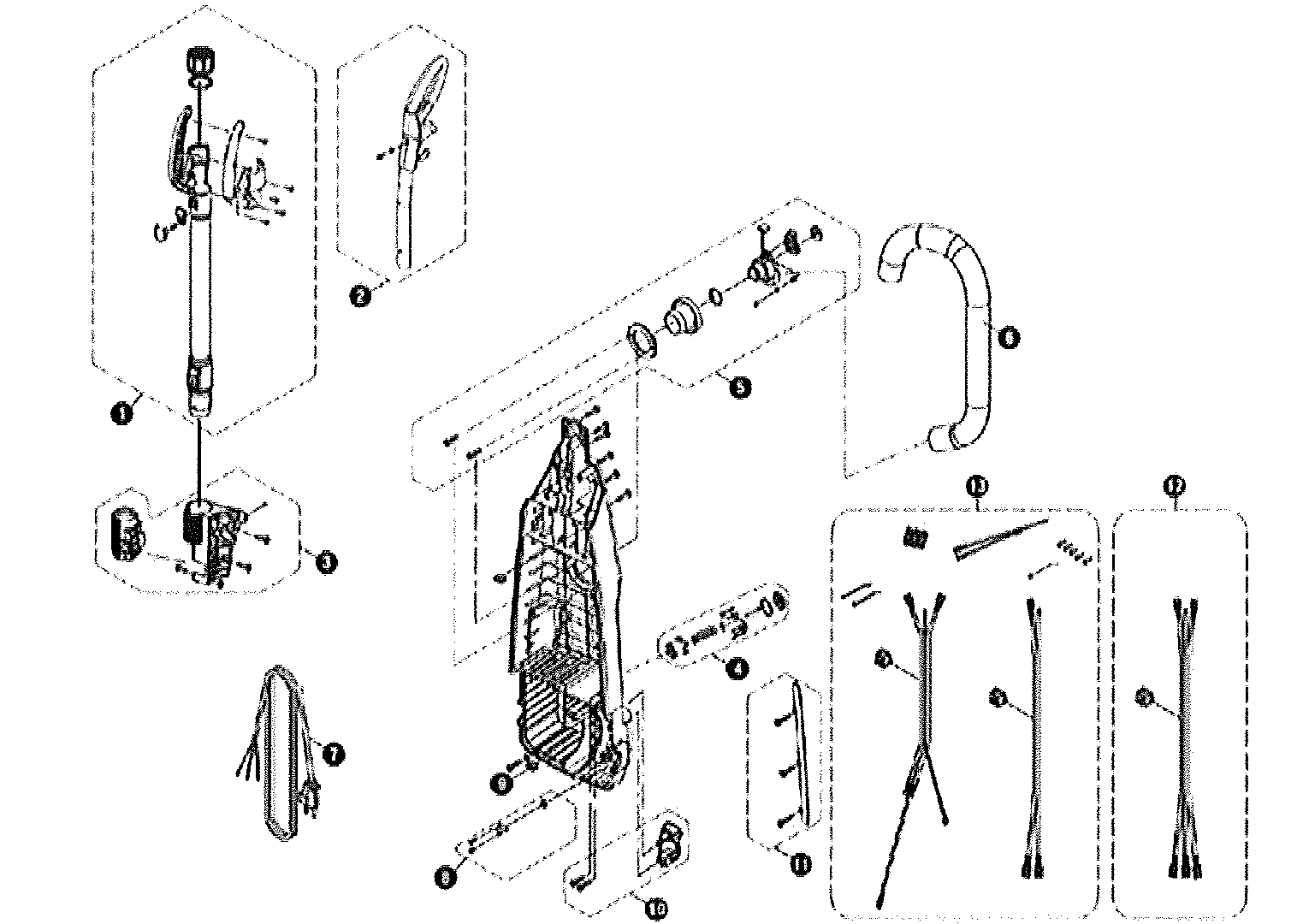

Handle and on-board wand parts for the Tornado CK 14/2 Pro commercial upright, model 98152. This section covers the handle, the hose, the stored wand and tools, the power cord and the wiring that feeds both motors. Hover a red marker on the diagram to see what it is, or click it to open that part.
1. Tornado Wand Assembly 393122. Tornado Handle Assembly 393133. Tornado Wand Retainer Assembly 393144. Pressure Relief Valve Assembly CM0210215. Bag Adapter Assembly 393166. Vacuum Hose 393177. Commercial 50-Foot 16/3 Power Cord CMPS-50C8. Thermal Switch 393429. Tornado Cord Clip 3353210. Tool Retainer 3931911. Wire Harness Cover 3932012. Wire Harness Assembly 3932113. Wire Harness 39343Parts on this diagram
| # | Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|---|
| 1 |  | Wand Assembly | 39312 | 1 | $51.99 | View part |
| 2 |  | Handle Assembly | 39313 | 1 | $66.99 | View part |
| 3 |  | Wand Retainer Assembly | 39314 | 1 | Call 763-535-0770 | View part |
| 4 |  | Relief Valve Assembly | CM021021 | 1 | $10.99 | View part |
| 5 | | Bag Adapter Assembly | 39316 | 1 | $14.99 | View part |
| 6 | | Hose | 39317 | 1 | $15.99 | View part |
| 7 |  | Power Cord 18/3 x 50 ft | CMPS-50C | 1 | $81.99 | View part |
| 8 | | Thermal Switch | 39342 | 1 | $5.99 | View part |
| 9 | | Cord Clip | 33532 | 1 | Call 763-535-0770 | View part |
| 10 | | Tool Retainer | 39319 | 1 | $2.99 | View part |
| 11 | | Wire Harness Cover | 39320 | 1 | Call 763-535-0770 | View part |
| 12 |  | Wire Harness Assembly | 39321 | 1 | $7.99 | View part |
| 13 | | Wire Harness | 39343 | 1 | Call 763-535-0770 | View part |
Prices shown are current manufacturer list. Four part numbers on this sheet carry no published price and are marked call-for-price rather than estimated. Twin City Vacuum has been selling and servicing Tornado equipment since 1956 — call 763-535-0770 with your model and serial number if you want a part confirmed before you order.
Bag housing parts · Brush base parts · All Tornado CK 14/2 Pro parts
Frequently Asked Questions
Which machine does this diagram cover?
The Tornado CK 14/2 Pro, model 98152. Most of these parts are also catalogued for the Powr-Flite Borelli Dual Pro (PV160-W14-U), which is built on the same platform under a different brand.
Why are there two wire harness parts?
Part 39321 is the wire harness assembly common to the family. Part 39343 is listed specifically for the 14/2, because a dual-motor machine has two motors, two switches, a circuit breaker and a thermal switch all sitting in the same path and needs the extra wiring to tie them together.
What does on-board wand mean?
The wand and tools are stored on the machine rather than carried separately, so an operator can go from floor cleaning to above-floor work without fetching anything. It is also why the wand retainer and tool retainer are wear parts here – they are used every shift.
Several rows show Call instead of a price.
Four numbers on this sheet carry no published price in the dealer catalogue: the wand retainer assembly 39314, the cord clip 33532, the wire harness cover 39320 and the wire harness 39343. Rather than print a guess we list them as call-for-price. Ring 763-535-0770 and we will quote them.
My machine runs, stops, then runs again after a rest.
That is the thermal switch, part 39342, working correctly, and the fault is upstream of it. Change the bag, check both filters and look through the hose for a blockage before suspecting the switch itself.
