The consumable side of the Tornado CV 38, model 91451 — bags, filters, the belt set and the three 15-inch roller brushes Tornado builds for this head, plus the short list of optional items the manufacturer publishes separately.
Match the number printed beside an item on the drawing to the same number in the table below it. A red dot names its part on hover, and each row links to the listing.

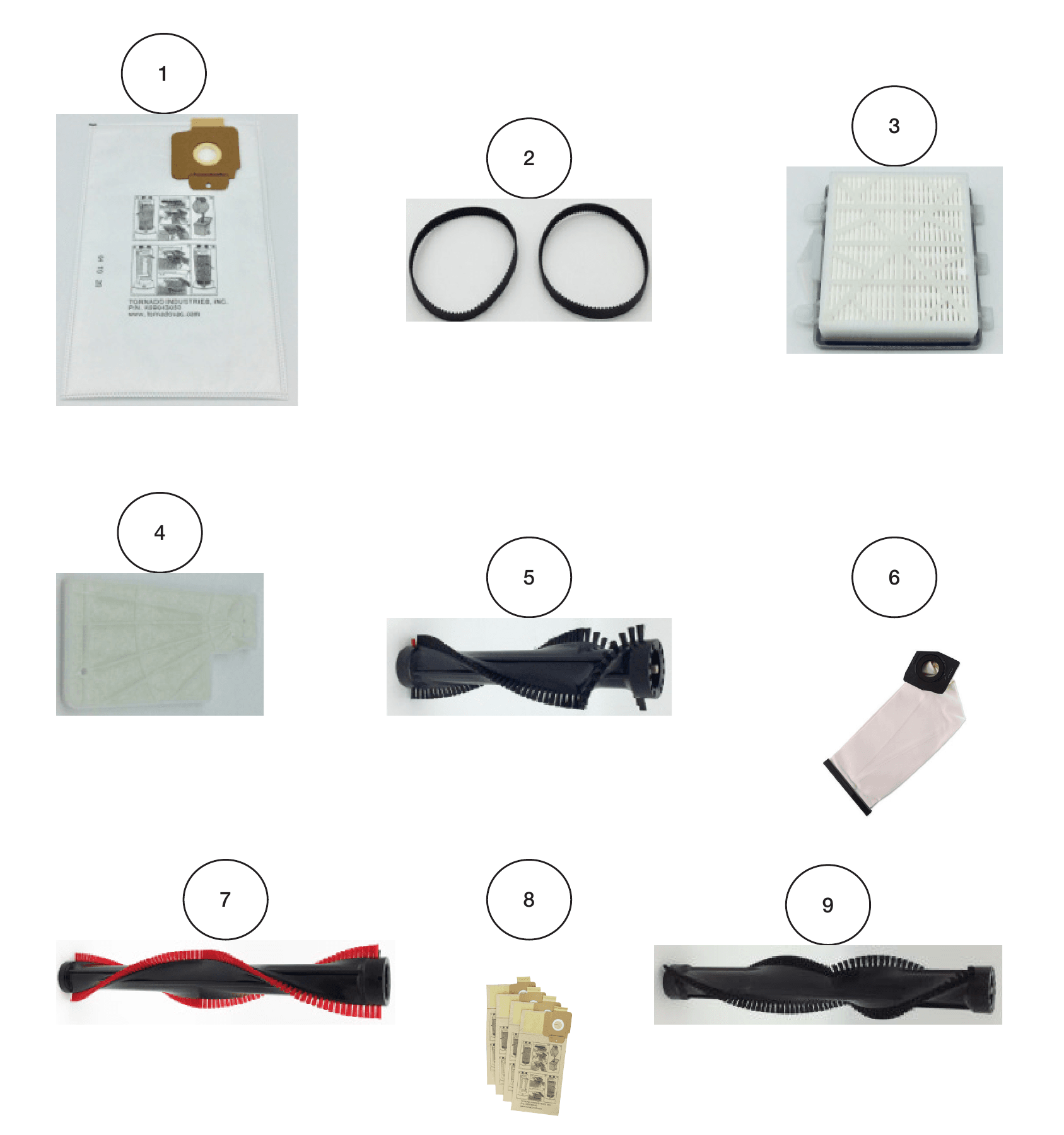

Tornado CV 38 Accessories and Consumables Diagram
1. Tornado CVD Clean Breeze Disposable Filter Bag 10-Pack – K690430502. Belt Set (Front and Back) – K288427403. Tornado Sealed HEPA Filter – K288928604. Tornado Intake Filter – K573161105. Tornado 15-Inch Soft Black Brush Roll – K690664306. Fabric Vacuum Filter Bag – K690430107. Tornado 15-Inch Red-Bristle Brush Roll – K690664408. Tornado Paper Vacuum Bag 10 Pack – K690429409. Tornado 15-Inch Anti-Static Roller Brush – K47624870Almost everything here is shared with the 12-inch CV 30: the same bags, the same sealed HEPA filter, the same motor intake filter, the same belt pair. If a building runs both sizes, one shelf of consumables covers the fleet. The rollers are the exception, and this machine has three of them to choose between rather than the two Tornado lists for the narrow model.
The belt comes as a front-and-back set because the roller is driven through a coupling clutch rather than off the motor directly. Change both, and look at the clutch while the head is open — a slipping clutch and a stretched belt produce the same symptom.
| # | Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|---|
| 1 |  | Tornado CVD Clean Breeze Disposable Filter Bag 10-Pack K69043050 | K69043050 | 1 | $11.99 | View part |
| 2 |  | Belt Set (Front and Back) K28842740 Supplied as a set of two belts, front and back. | K28842740 | 1 | $44.99 | View part |
| 3 |  | Tornado Sealed HEPA Filter K28892860 | K28892860 | 1 | $48.99 | View part |
| 4 |  | Tornado Intake Filter K57316110 | K57316110 | 1 | $2.99 | View part |
| 5 |  | Tornado 15-Inch Soft Black Brush Roll K69066430 15-inch soft black bristle. | K69066430 | 1 | $55.99 | View part |
| 6 |  | Fabric Vacuum Filter Bag K69043010 | K69043010 | 1 | $97.99 | View part |
| 7 |  | Tornado 15-Inch Red-Bristle Brush Roll K69066440 15-inch stiff red bristle. | K69066440 | 1 | $54.99 | View part |
| 8 |  | Tornado Paper Vacuum Bag 10 Pack K69042940 | K69042940 | 1 | $10.99 | View part |
| 9 |  | Tornado 15-Inch Anti-Static Roller Brush K47624870 15-inch anti-static. | K47624870 | 1 | $88.99 | View part |
Tornado CV 38 Product Optional Items
Tornado publishes no diagram for this section. The image filed against it in the parts system is a blank placeholder, not a drawing, so there is nothing to number and nothing to point at. The parts are real, current and orderable, and they are listed in full below.
| Image | Part Description | Part Number | Qty | Price | |
|---|---|---|---|---|---|
 | Tornado CV 30 & CV 38 Foam Exhaust Filter Frame K57316140 The frame the foam filter sits in. Not used with the HEPA cartridge. | K57316140 | 1 | $11.99 | View part |
 | Tornado CV 30 & CV 38 Foam Exhaust Filter 3-Pack K64147650 Foam exhaust filter, three to a pack. Runs in the frame K57316140 in place of the sealed HEPA filter. | K64147650 | 1 | $33.99 | View part |
| Tornado Paper Vacuum Bag 10 Pack K69042940 | K69042940 | 1 | $10.99 | View part |
| Fabric Vacuum Filter Bag K69043010 | K69043010 | 1 | $97.99 | View part |
Notes on this page
The drawing prints no quantities against consumables because they are not assembly positions. The disposable and paper bags are ten-packs, the foam exhaust filter is a three-pack, the belt is a pair, and the rest are single items.
This machine is the single-motor CV 38, model 91451. It is a different vacuum from the CV 38/2 HEPA model 91415, which has its own drawings and its own part numbers, so check the plate before ordering from either page.
Frequently asked questions
Three roller brushes are listed. What is the difference?
All three are 15-inch and all three fit this head. K69066430 is soft black bristle and suits plush or delicate carpet. K69066440 is stiff red bristle and works dense commercial loop pile harder. K47624870 is the anti-static roller, used where static discharge is a nuisance — dry buildings, electronics areas, rooms full of equipment.
What does Tornado mean by Product Optional Items?
It is the name for a short list of parts that are alternatives rather than fitted equipment — in this case the foam exhaust filter and its frame, and the two bag types you can run instead of the standard disposable. Tornado publishes the list without a drawing, so this page gives it as a table.
Why does the optional items section have no diagram?
Because There is no published one. The image filed against that section in the parts system is a blank placeholder rather than a drawing, and we would rather show you an honest table than invent a picture. The parts themselves are real and orderable.
Can I use CV 30 consumables in a CV 38?
Bags, the sealed HEPA filter, the motor intake filter, the belt set and the exhaust filter options are all common to both machines. The roller brushes are not — those are cut to width, and a 12-inch roller will not fit this head.
The mechanical sections are indexed on the Tornado CV 38 parts hub, and the head these rollers fit is on the CV 38 brush head parts page.
