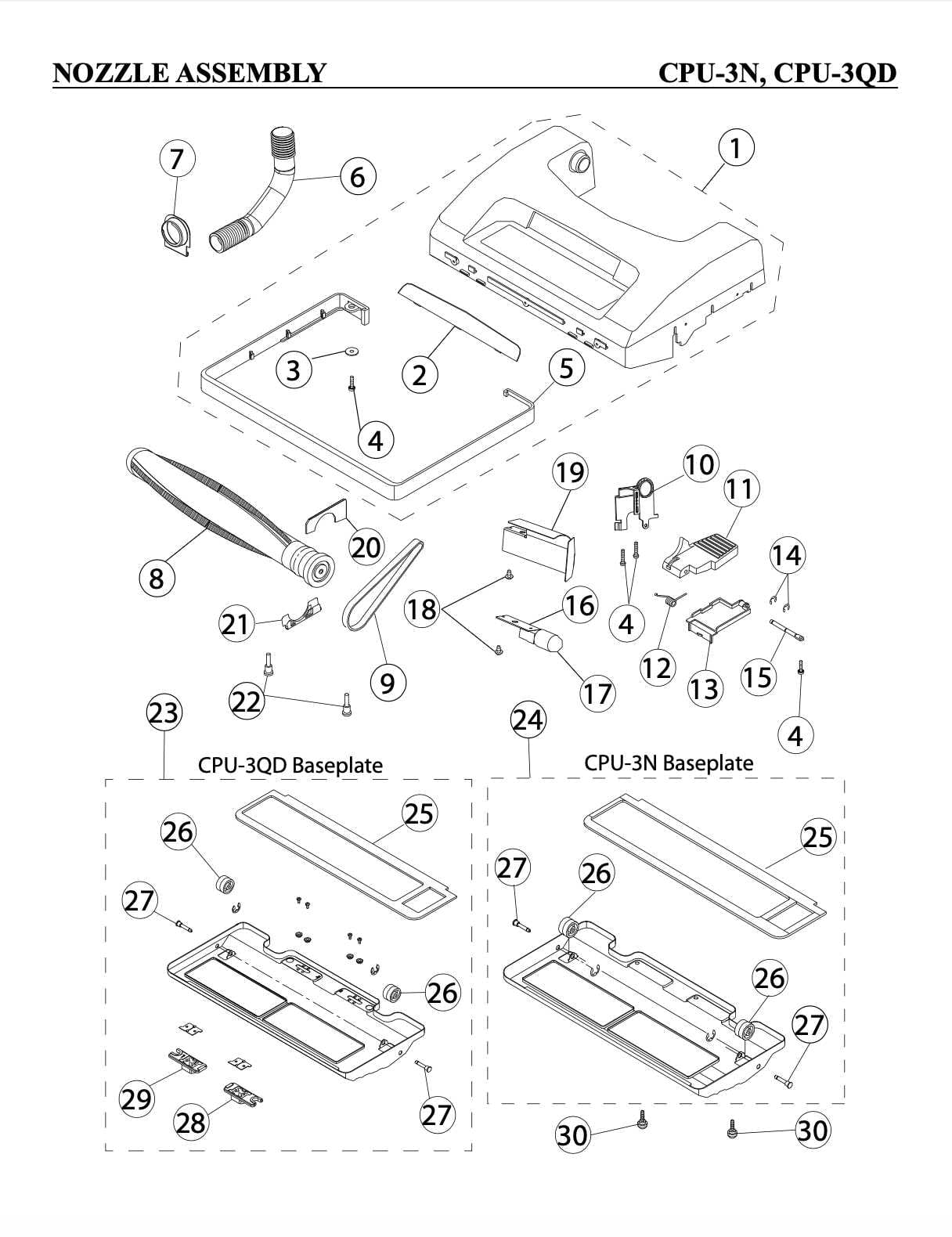

Find genuine CleanMax CPU-3N nozzle assembly parts for the CPU-3N commercial upright. Every numbered part on the diagram below maps to the exploded nozzle-assembly schematic — from the nozzle housing and furniture guard to the headlight socket, foot-pedal linkage, and baseplate. Twin City Vacuum has been selling and servicing CleanMax equipment since 1956; all parts ship from Crystal, MN. Can’t find your part? Call us at 763-535-0770.
Click any numbered part in the diagram below, or any row in the table, to open that part’s page in a new tab.
Find genuine CleanMax CPU-3N nozzle-assembly replacement parts — nozzle housing (C625-0111), headlight lens and socket, foot pedal, pedal frame and spring, belt cover, reflector plate, and the CPU-3N baseplate with wheels and latches. All parts are sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 1 |  | Nozzle Housing with Furniture Guard (Black Replacement Part) | C625-0111 | $37.99 |
| 2 |  | Lens | N19-CL | $3.99 |
| 3 | Not yet listed — call 763-535-0770 | |||
| 4 | Not yet listed — call 763-535-0770 | |||
| 5 |  | Furniture Guard Black (mapping flagged — verify) | A03 | $10.99 |
| 6 | Not yet listed — call 763-535-0770 | |||
| 7 | Not yet listed — call 763-535-0770 | |||
| 8 | Metal Agitator Assembly (shared part — price update pending coordinated pass) | D012-2500 | $57.99 | |
| 9 | Brushroll Belt (shared part — price update pending coordinated pass) | B014-0714 | $4.99 | |
| 10 |  | Pedal Frame | B020-0100B | $2.99 |
| 11 |  | Foot Pedal | 54-016 | $3.99 |
| 12 |  | Foot Pedal Spring | B020-0400 | $2.99 |
| 13 |  | Belt Cover (mapping flagged — verify) | B020-1031 | $2.99 |
| 14 | E-Clip (shared part — price update pending coordinated pass) | A732-0200 | $2.99 | |
| 15 |  | Pedal Shaft | B020-0300 | $2.99 |
| 16 | Light Socket (price unverified) | B625-0114 | $35.70 | |
| 17 |  | 6v Light Bulb | A350-2000 | $2.99 |
| 18 |  | Screw M4x16 (shared part — price update pending coordinated pass) | A732-5300 | $3.28 |
| 19 | Reflector Plate (price pending) | A28 | — | |
| 20 | Not yet listed — call 763-535-0770 | |||
| 21 | Not yet listed — call 763-535-0770 | |||
| 22 | Not yet listed — call 763-535-0770 | |||
| 24 |  | Baseplate Assembly Screw-On Type | C015-1500 | $30.99 |
| 25 |  | Baseplate Assembly CM011007 (mapping flagged — verify) | CM011007 | $32.99 |
| 26 |  | Baseplate Wheel Axle B010 | B010-0500 | $2.99 |
| 27 | Baseplate Latch Left / Baseplate Latch Right (price pending) | CM011008 / CM011009 | — | |
| 30 |  | Baseplate Plate Screw | A732-2000 | $2.99 |
Additional Compatible Parts
These CPU-3N nozzle-area parts are not individually numbered on the diagram above:
- Felt Packing — A09 — $4.99
- Vented Support Fitting — B017-1200 — $2.99
Frequently Asked Questions
What parts are in the CleanMax CPU-3N nozzle assembly?
The CPU-3N nozzle assembly includes the nozzle housing with furniture guard (C625-0111), the headlight lens and 6V bulb with socket, the foot-pedal frame, pedal, spring and shaft, the belt cover, the reflector plate, and the CPU-3N baseplate with its wheels, latches and screws. Each is numbered on the diagram above.
Do CleanMax CPU-3N nozzle parts also fit the CPU-3QD?
The nozzle diagram is shared between the CPU-3N and CPU-3QD, so most nozzle parts are common to both. The baseplate differs: this page shows the CPU-3N baseplate (keys 24–27 and 30). The CPU-3QD uses a different baseplate. If you are unsure which baseplate your machine uses, call 763-535-0770 and we will confirm it.
How do I order a CleanMax CPU-3N nozzle part or get help?
You can add any listed CPU-3N nozzle part directly to your cart on its product page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has been servicing CleanMax equipment since 1956 and can help confirm the right part for your machine.
Looking for other CleanMax CPU-3N assemblies? Browse the full CleanMax CPU-3N parts list, or call Twin City Vacuum at 763-535-0770 — 5415 West Broadway, Crystal, MN 55428.
