Genuine Tornado parts for the Tornado Tempest cordless wide-area carpet sweeper, Model TV400-W26-U. Seven factory parts breakdowns cover the whole machine, with 200 orderable parts listed and priced. Twin City Vacuum has been selling and servicing Tornado equipment since 1956.
Tornado Tempest parts diagrams
Seven factory sheets cover the whole machine. Click a diagram to open its parts page, then click any numbered dot to go straight to that part.
Battery, Charger & Electronics14 parts — the lithium battery pack and charger, PCB, wiring harnesses and the electronics hardware. Battery and charger ship under hazardous-materials rules.
Battery Housing & Controls25 parts — battery housing and latch, on/off switch, brush height adjustment knob and bushings, microswitch and springs.
Cover & Debris Container21 parts — main cover, hinges and gasket, hopper and bin liners, fixing strap and the main skirt plates.

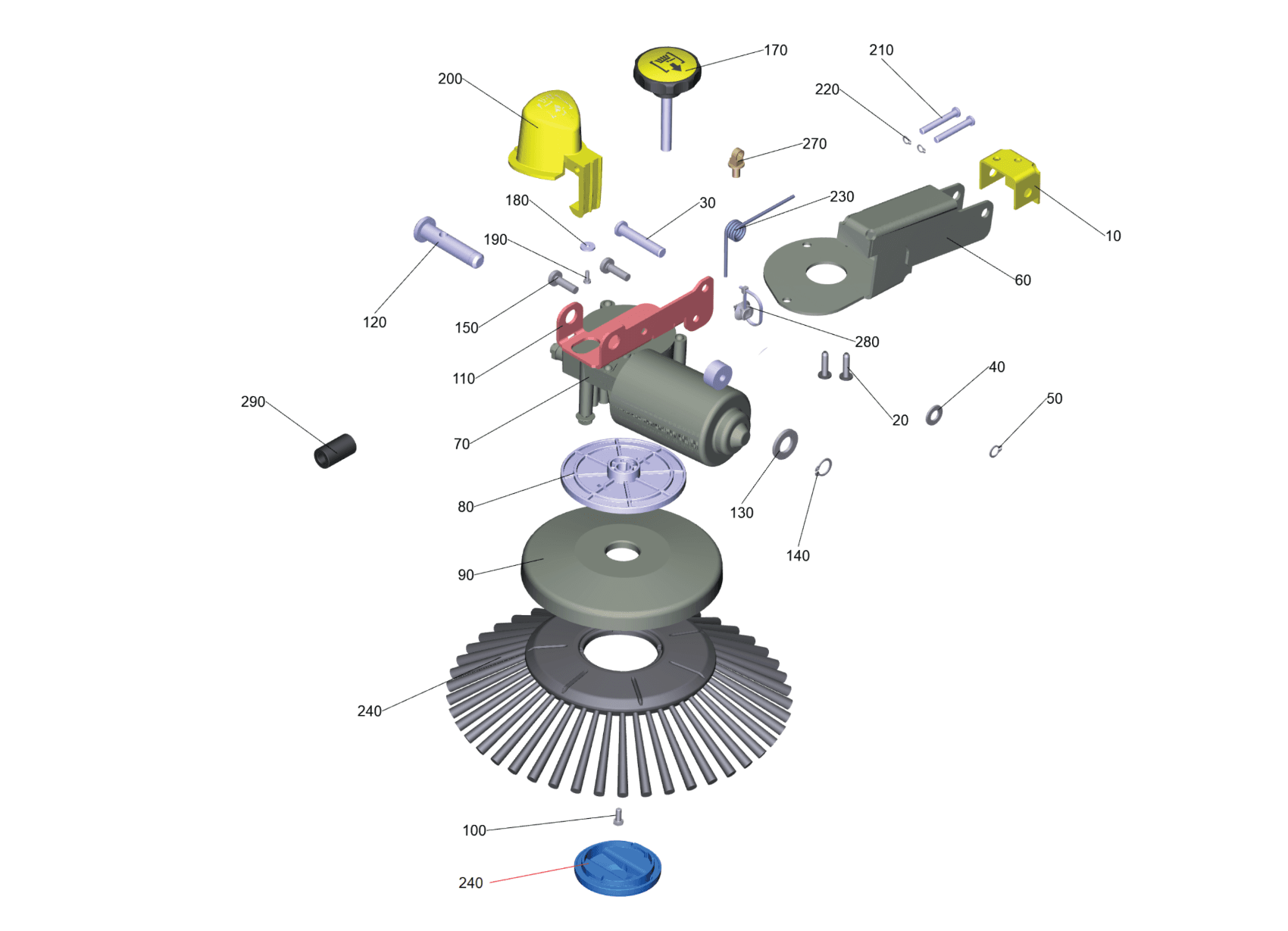

Side Broom27 parts — side brush and motor, drive disc, arm and its height adjustment, deflector plate and hardware.

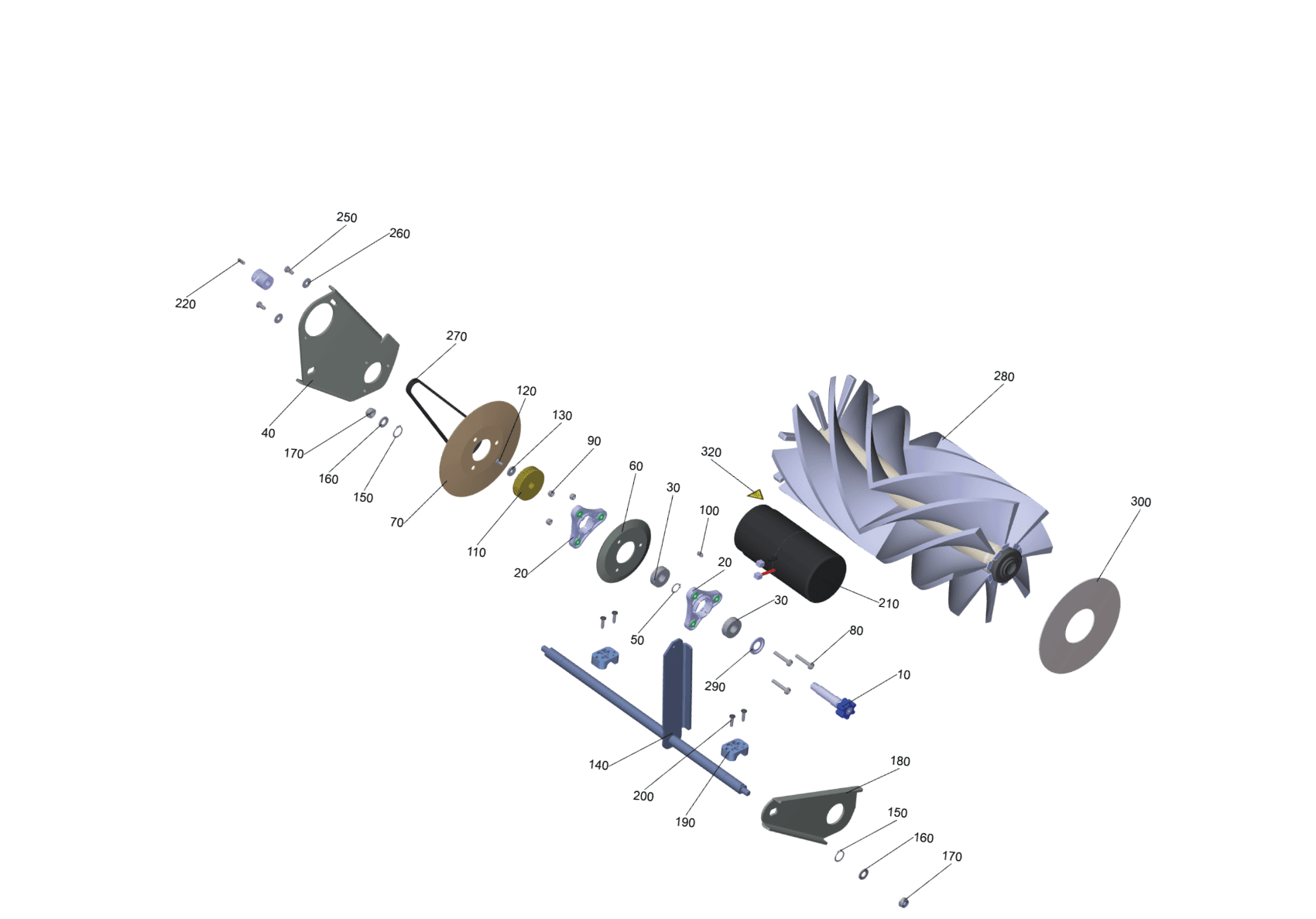

Brushroll29 parts — roller brush, brush motor and belt, bearings, axle, end plates, springs and clips.

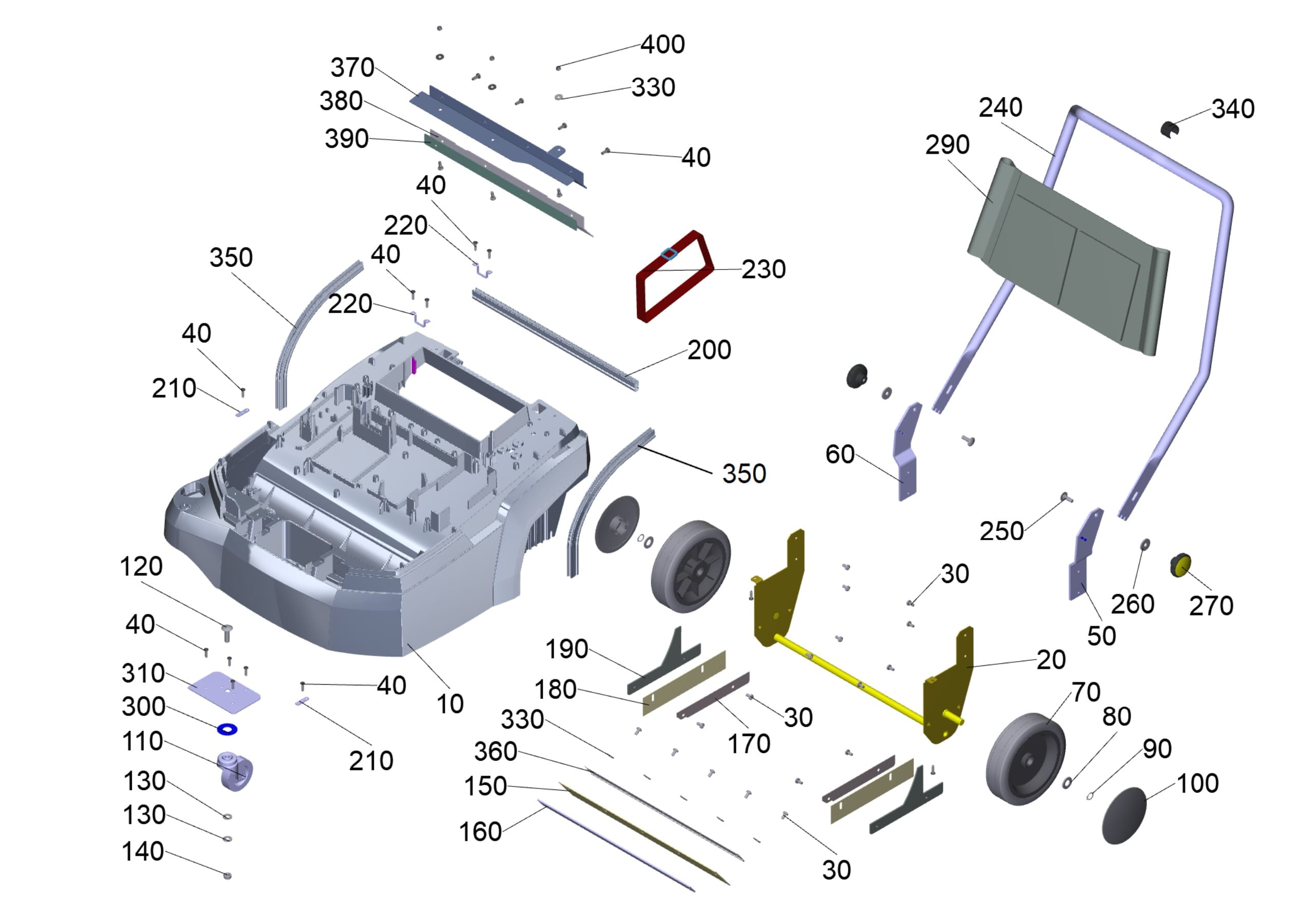

Handle & Frame35 parts — bottom housing, rear axle and wheels, front caster, front and side skirts, hopper seals, push handle and brackets.

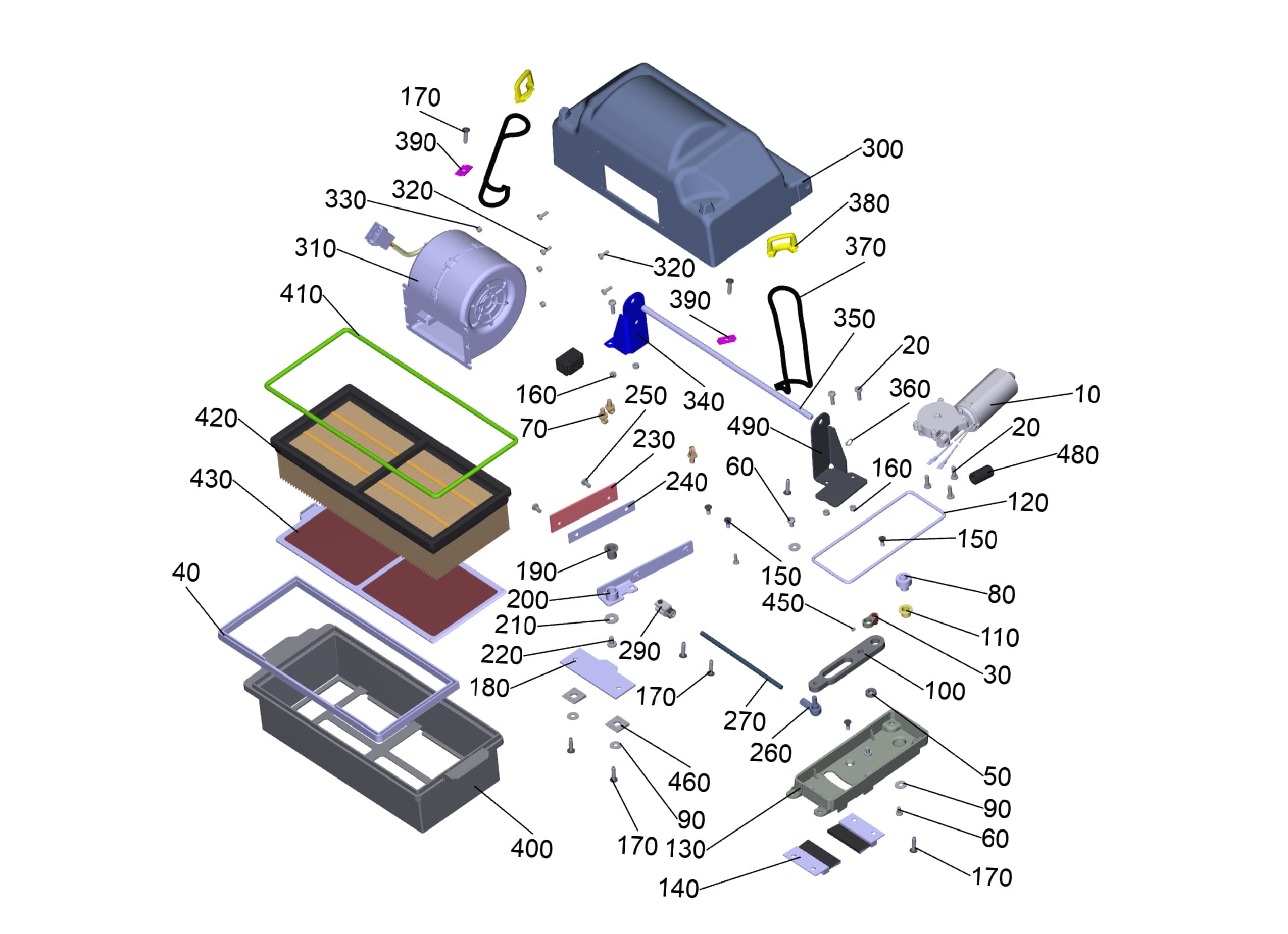

Filter, Blower & Shaker49 parts — PTFE filter and pre-filter, gaskets and housing, vacuum motor and air duct, and the automatic filter shaker mechanism.Finding the right Tornado Tempest part
Work from the diagrams rather than from descriptions. Tornado lists a great many parts on this machine simply as Washer, Nut, Screw or Seal, and the sizes are not interchangeable even where the description is identical — the Tempest alone uses separate part numbers for washers at the wheel, the caster, the push handle, the hinge and the battery housing. Find the part on the sheet, take the number beside it, and match that number to the table. If you are holding a part you have already removed and cannot place it, call us on 763-535-0770 and we will identify it with you.
Browse everything in one list in the Tornado Tempest parts category, or see the Tornado Tempest TV400-W26-U machine. Manufacturer information is at tornadovac.com.
Frequently Asked Questions
What model number is the Tornado Tempest?
TV400-W26-U. It is Tornado’s cordless wide-area carpet sweeper with a 26 inch cleaning path. All the parts listed across these seven pages are catalogued by Tornado against that model number.
How many parts does the Tempest have?
the parts breakdown list 200 orderable parts across the seven assemblies shown above. Every one of them has its own page here with current pricing where Tornado publishes a price. We have not created listings for the plain decals and labels, which are rarely ordered — call us if you need one.
Which Tempest parts wear out first?
The brushroll, the skirts and the filters. The roller brush and the front and side skirts are the mechanical wear parts, and the PTFE filter and pre-filter are the filtration consumables. After those, the drive belt, the side broom and the battery are the parts most often replaced.
Some parts show “Call” instead of a price. Why?
There is no published a price for every part number in the dealer system we buy from, and we will not invent one. Those parts are listed with a Call price. Ring 763-535-0770 with the part number and we will quote it and confirm availability.
Do you stock Tornado Tempest parts?
Yes. We have been a Tornado dealer since 1956 and stock Tempest parts at our Crystal store. Order here, or call 763-535-0770 and we will confirm the part against your machine before it ships. You can also bring the machine in to 5415 West Broadway, Crystal, MN 55428.
