This page covers the filter, blower and shaker parts for the Tornado Tempest TV400-W26-U cordless wide-area carpet sweeper — the PTFE flat-pleated filter and pre-filter, their gaskets and housing, the vacuum motor and air duct, and the automatic filter shaker that keeps the filter clear in service. Tornado splits this section across two parts breakdowns, and both are reproduced below.
Use the diagrams to find what you need. Every numbered part carries a clickable red marker, and the numbers match the first column of the table under each diagram. A few parts appear on both breakdowns because the two assemblies meet; where that happens it is the same single part number in both places.
Tornado Tempest Filter and Blower Parts
170. Screw M5 x 20 – K73031080170. Screw M5 x 20 – K73031080170. Screw M5 x 20 – K73031080170. Screw M5 x 20 – K73031080390. Bungee Strap Metal Holder – K50979700390. Bungee Strap Metal Holder – K50979700300. Air Duct Cover – K50321870320. Filter and Blower Screw M4 x 12 – K73060580320. Filter and Blower Screw M4 x 12 – K73060580330. Filter and Blower Nut – K73114300380. Bungee Strap Grip – K50342940370. Bungee Strap – K69076750310. Vacuum Motor – K64840020410. Filter Top Gasket – K53650840350. Hinge Shaft – K5110170020. Filter and Blower Screw M5 x 16 – K7306077020. Filter and Blower Screw M5 x 16 – K73060770360. Filter Housing Spring Clip – K73430140160. Adjustment Knob Nut – K73114210160. Adjustment Knob Nut – K73114210250. Screw M5 x 10 – K7306071010. Filter Shaker Motor – K64542220340. Air Duct Metal Holder – K50979650420. PTFE Flat-Pleated Filter – K6907461070. Cable Tie with Clip – K66506050230. Prefilter Stripper – K50321230480. Ferrite Sleeve – K6574326060. Screw M5 x 8 – K7306067060. Screw M5 x 8 – K73060670430. Pre-Filter – K57452800240. Filter Cleaner Support Plate – K50964200120. Filter and Blower Seal – K53650850190. Bearing with Collar – K6403050040. Filter Gasket – K5365076080. Filter and Blower Bolt – K53160280200. Filter Cleaner Plate – K40409900450. Threaded Pin M4 x 5 – K73073540210. Washer – K73122760110. Filter and Blower Bushing – K69875240290. Fork Head – K74620170220. Screw M6 x 10 – K7306087030. Pivot Point – K40595750180. Wiper Plate – K40588380100. Connecting Link – K5098567050. Bearing 687 ZZ – K64222140460. Washer (2 Fitted) – K7312078090. Washer (4 Fitted) – K7312278090. Washer (4 Fitted) – K73122780400. Filter Housing – K50321980130. Filter and Blower Cap – K55002560140. Shaker Assembly Seal – K69051920260. Angle Joint – K64012430270. Filter Cleaning Bar – K50985720

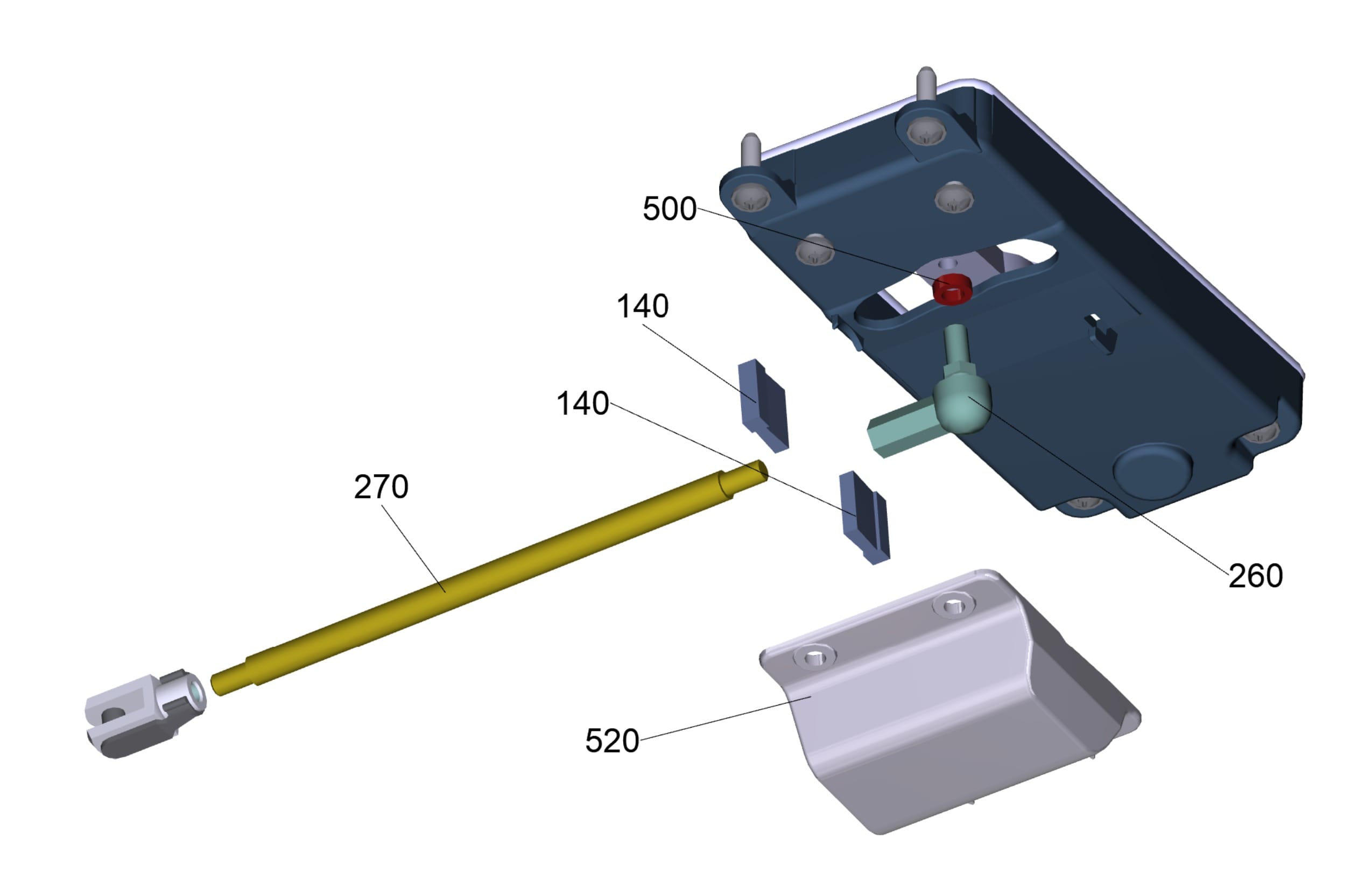

Tornado Tempest Filter Shaker Assembly Parts
The shaker assembly breakdown shows the filter cleaning mechanism in more detail. Three of its parts — the angle joint, the filter cleaning bar and the shaker assembly seal — also appear on the filter and blower diagram above, under the same part numbers.
500. Shaker Assembly Bushing – K51124480140. Shaker Assembly Seal – K69051920140. Shaker Assembly Seal – K69051920270. Filter Cleaning Bar – K50985720260. Angle Joint – K64012430520. Shaker Bar Cover – K55002550| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 140 |  | Shaker Assembly Seal | K69051920 | Call |
| 260 | | Angle Joint | K64012430 | Call |
| 270 | | Filter Cleaning Bar | K50985720 | Call |
| 500 | | Shaker Assembly Bushing | K51124480 | $2.99 |
| 520 | | Shaker Bar Cover | K55002550 | Call |
Where a price is shown it is current. Parts marked Call have no published price in Tornado dealer system and we would rather quote you than invent a number — ring 763-535-0770 with the part number. Browse the full Tornado Tempest parts range, or see the Tornado Tempest TV400-W26-U machine. Manufacturer information is at tornadovac.com.
Frequently Asked Questions
How do I find the right filter or blower part on these diagrams?
Find the part on the diagram and note the number printed beside it, then match that number to the first column of the table below that diagram. Every numbered part carries a clickable red marker that opens the part in a new tab. The filter, blower and shaker are shown on two separate Tornado breakdowns, so check both tables if you do not find your number in the first.
My suction drops off during a shift. Where do I start?
Start with the filter. Run the shaker and see whether airflow recovers — if it does, the filter is simply loading and the machine is working as designed. If it does not recover, check that the shaker actually runs and that the cleaning bar sweeps the full width of the filter. Only after those check out is it worth looking at the vacuum motor.
Which filter parts are consumables?
The main PTFE flat-pleated filter and the pre-filter are the true consumables, and the gaskets that seal them should be renewed with them. The cleaning elements — the cleaner plate, the wiper plate and the prefilter stripper — wear more slowly but do wear, and they are worth inspecting whenever the filter is out.
Why do some parts show “Call” instead of a price?
There is no published a price for every part number in the dealer system we buy from, and we will not invent one. Call Twin City Vacuum at 763-535-0770 with the part number and we will quote it, confirm availability and check it against your machine before anything ships.
Do you stock these parts?
We stock Tornado Tempest parts at our Crystal store and have been a Tornado dealer since 1956. Order here on the site, or call 763-535-0770 and we will confirm the part against your machine before it ships. You are also welcome to bring the machine in to 5415 West Broadway, Crystal, MN 55428.
