CleanMax CMBP-6CL Upper Body Parts

CleanMax CMBP-6CL Upper Body Parts replacement parts for Model CMBP-6CL. Can’t find your part? Call us at 763-535-0770.

Click on any part in the diagram below or in the table to go directly to that part’s product page.

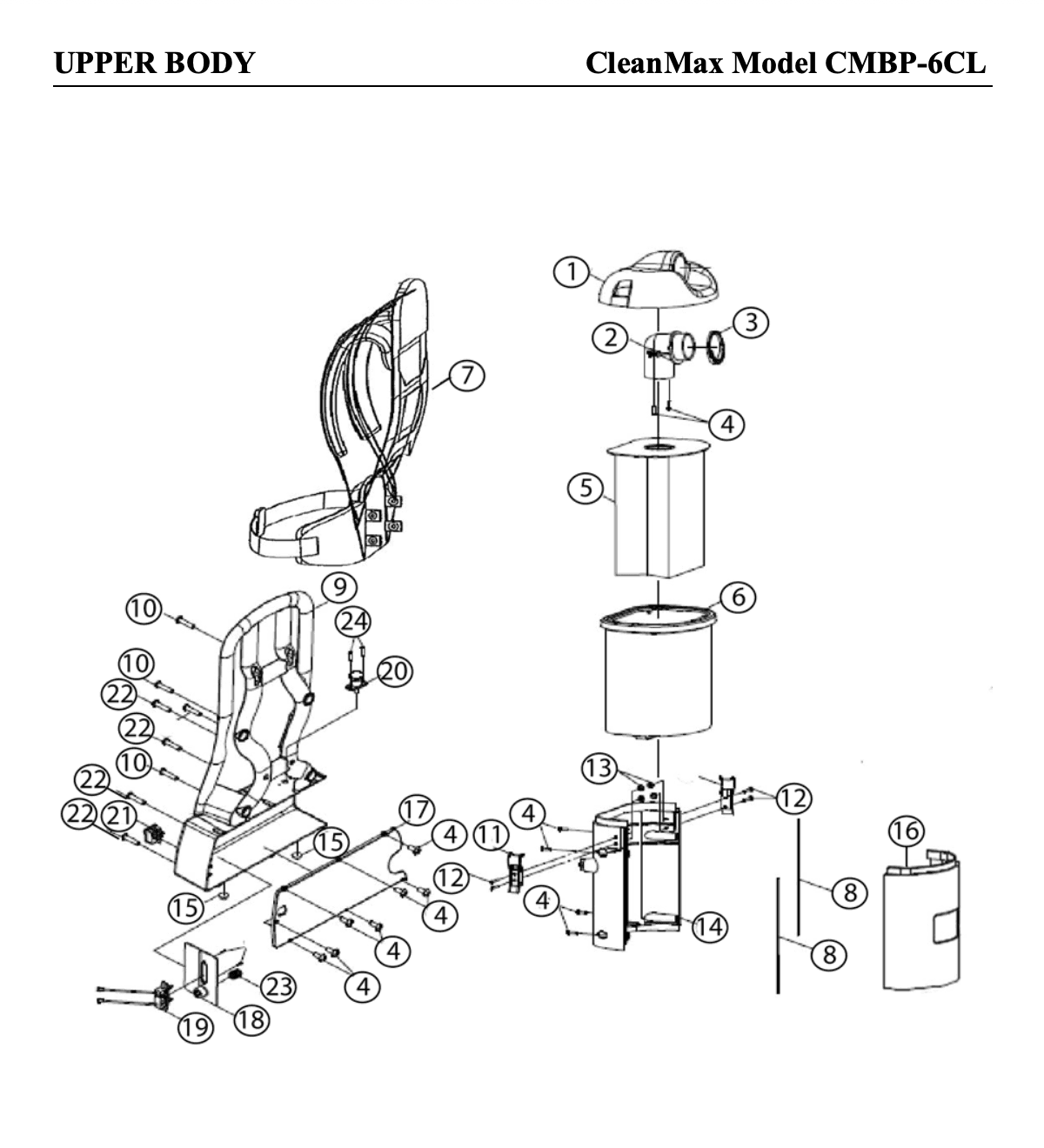

CleanMax CMBP-6CL Upper Body Parts schematic

Genuine CleanMax CMBP-6CL cordless backpack vacuum upper body parts — the top housing, filters, motor cover, switch and control components, and the upper-frame hardware of the cordless 6-quart backpack. Twin City Vacuum has sold and serviced CleanMax equipment since 1956 and sources every part directly from Tacony. Call 763-535-0770 or visit 5415 West Broadway, Crystal, MN 55428.

#ImagePart DescriptionPart NumberLink
07Deuter Shoulder Harness X1152X1152View Part
09CleanMax CMBP-6CL – Frame Harness – X1202X1202View Part
12CleanMax CMBP-6CL - Latch Rivet - X9758 part number CleanMax CMBP-6CL – Latch Rivet – X9758View Part
13CleanMax CMBP-6CL – Washer #6 SAE Flat Zinc – 0157501575-CMBP6CLView Part
15CleanMax CMBP-6CL – Rubber Foot – X1260X1260View Part
17CleanMax CMBP-6CL – Battery Box Cover – X1203X1203View Part
18CleanMax CMBP-6CL – Terminal Plate – X1204X1204View Part
19CleanMax CMBP-6CL – Terminal Block – X1201X1201View Part
20CleanMax CMBP-6CL – Spring Loaded Plunger – X1207X1207View Part
21CleanMax CMBP-6CL – Rocker Switch W/Cover DPST 20A – PX87PX87View Part
22CleanMax CMBP-6CL – Screw #4 x .5 – X1198X1198View Part
23CleanMax CMBP-6CL – Lock Spring 29mm x 12mm od – X1206X1206View Part
24CleanMax CMBP-6CL – Screw 8-16 Plastite 3/8 – X1263X1263View Part
Not Shown. CleanMax CMBP-6CL - Lithium Ion 36V Battery - X1200 part number X1200Not Shown. CleanMax CMBP-6CL – Lithium Ion 36V Battery – X1200X1200View Part
Not Shown. CleanMax CMBP-6CL - Battery Charger w/Cord 36V 5A Lithium Ion - X1194 part number X1194Not Shown. CleanMax CMBP-6CL – Battery Charger w/Cord 36V 5A Lithium Ion – X1194X1194View Part
Screw #10 x 3/4 inch A352-8100A352-8100View Part
Screw #8 x 5/8 inch A732-8300A732-8300View Part
Metal Lid Latch A352-3300 part number A352-3300Metal Lid Latch A352-3300A352-3300View Part
Inlet Seal B352-4800 part number B352-4800Inlet Seal B352-4800B352-4800View Part
Back Plate B352-0443 part number B352-0443Back Plate B352-0443B352-0443View Part
Bag Compartment Seal B352-6100 part number B352-6100Bag Compartment Seal B352-6100B352-6100View Part
Cloth Shake-Out Bag C352-1400 part number C352-1400Cloth Shake-Out Bag C352-1400C352-1400View Part
Paper Vacuum Bags 10-Pack C352-2500 part number C352-2500Paper Vacuum Bags 10-Pack C352-2500C352-2500View Part
Hose Inlet Elbow B352-0600 part number B352-0600Hose Inlet Elbow B352-0600B352-0600View Part
Top Cover B352-0500 part number B352-0500Top Cover B352-0500B352-0500View Part

Frequently Asked Questions

What upper body parts fit the CleanMax CMBP-6CL cordless backpack?

The CMBP-6CL upper body covers the top housing, filters, motor cover, the power switch and control components, and the upper-frame hardware. Match each item number on the diagram above to the numbered table below to order the right part.

How do I keep my CMBP-6CL running at full suction?

As with any backpack vacuum, keep the filters clean and replace them on schedule — a clogged filter is the most common cause of weak suction. If suction stays low with clean filters, check the motor cover seal and airway components shown on the diagram above.

Are CMBP-6CL parts the same as the corded CMBP-6.2?

No — the CMBP-6CL is the cordless model with its own upper-body assembly and battery-related components, so order by the Tacony part number listed here rather than assuming a corded CMBP-6.2 part fits.

How do I order CleanMax CMBP-6CL upper body parts or get help?

Add any part directly to your cart from the table on this page, or call 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced CleanMax equipment since 1956 and can confirm the right part for your CMBP-6CL.
