Tornado 98168 Marathon 1200 tank assembly replacement parts for Model 98168. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.

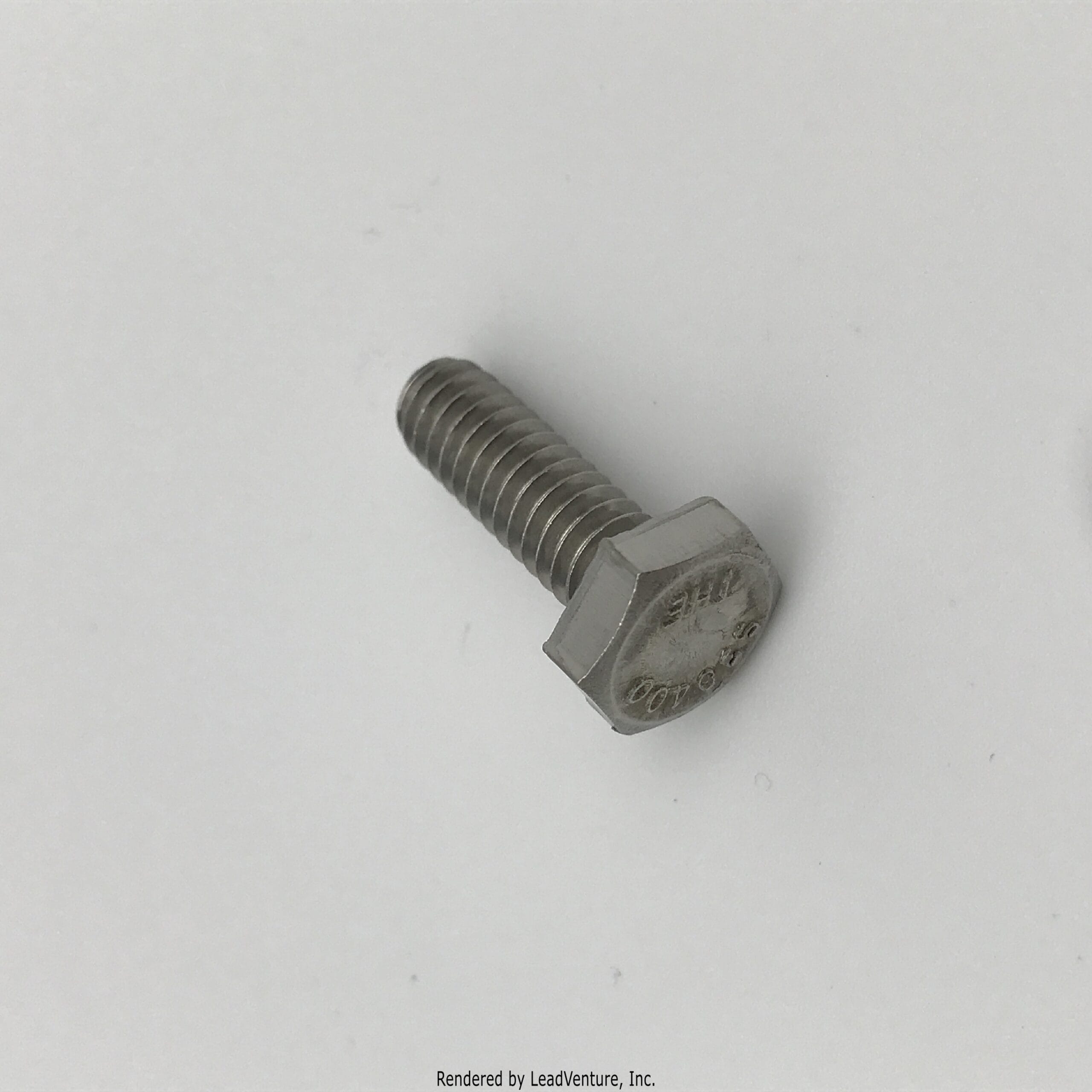

01. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Lock Washer – 0157402. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw #10-32 x 3/8″ – 0326103. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Gasket – 0682504. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Wheel Shaft Bushing – 1107705. Tornado 98168 12″ Gallon Self Contained Carpet Extractor PVC Male Adapter – 1508806. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Lock Nut – 1509207. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hose Clamp – 1609108. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 1/4-20 x 3/4″ – 1716009. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 1/4-20 x 4-1/4″ – 1764410. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Spacer – 3007011. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Washer – 1888512. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Washer – 1888613. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Intake Filter – 1909714. Tornado 98168 12″ Gallon Self Contained Carpet Extractor 3 Stage Vacuum Motor – X103815. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Gasket – X907916. Tornado 98168 12″ Gallon Self Contained Carpet Extractor 6″ Clear Lid w/Black Ring – PX10317. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Standpipe 16-3/4″ – 1913918. Tornado 98168 12″ Gallon Self Contained Carpet Extractor O-Ring – 1914019. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Recovery Tank (Order w/19241) – X385720. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Standpipe Mounting Clamp – 1921721. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 1/4-20 x 1/2″ – 1924022. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Recovery Tank Retaining Bracket – 1927224. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Tank Frame Member 11″ – 1931625. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Tank Frame Member (Sides) – 1931726. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Tank Frame Member – 1931827. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Recovery Tank Internal Pipe Assembly – 3105028. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Recovery Tank External Pipe Assembly – 3105129. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Gasket – 3141630. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 10-32 x 5/8″ – X911831. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Aluminum Coupler 3/8″ MPT x 1-5/32″ – 3217733. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Lower Bladder Mounting Plate – 3217934. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Swivel Elbow 3/8″ Tube (Nylon) – 3218935. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nylon Stem Adapter 3/8″ I.D. Tube x 3/8″ MPT – 3230836. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hose Bellow 1-1/2″ x 23-1/2″ – 1662037. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Tank Frame Member 12″ – 1922032. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Inline Strainer – 32178Find genuine Tornado 98168 Marathon 1200 tank assembly replacement parts for Model 98168. This diagram covers recovery and vacuum — the recovery tank and its retaining bracket, the 6″ clear lid with black ring and its gasket, the 16-3/4″ standpipe and mounting clamp, the internal and external recovery pipe assemblies, the 3-stage vacuum motor and its intake filter and gaskets, the 11″, 12″ and side tank frame members, the lower bladder mounting plate, the inline strainer, and the nylon and aluminum fittings that carry solution forward. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
Frequently Asked Questions
My vacuum motor is loud or has lost power. What should I check first?
The intake filter and the gaskets, before the motor. A clogged intake filter starves a healthy 3-stage motor and makes it scream; a failed gasket at the lid or the motor mount lets it pull air instead of water. Replace those, and only replace the motor if the noise and the weak lift survive a clean filter and fresh gaskets.
Water is not being picked up even though the motor runs. Why?
Look at the standpipe and the recovery pipe assemblies. A standpipe that has come loose at its mounting clamp, or a cracked internal pipe assembly, short-circuits the airflow so the motor pulls air from inside the tank instead of from the nozzle.
The clear lid will not seal. Do I replace the lid or the gasket?
Almost always the gasket. The 6″ clear lid with black ring rarely warps; the gasket under it flattens and hardens with heat and detergent. Fit a new gasket first — it is the cheap part and it fixes the majority of seal complaints.
What does the inline strainer do and how often should it be replaced?
It catches grit before it reaches the pump and the spray tips. It is not a scheduled-replacement item, but it should be pulled and cleaned whenever spray pressure drops, and replaced if the mesh is torn — a torn strainer sends debris straight into the solenoid valve and the jets.
Browse every assembly for this machine on the Tornado 98168 parts hub, or call 763-535-0770 and we will identify your part from the serial number. Twin City Vacuum, 5415 West Broadway, Crystal, MN 55428.
