Tornado 98168 Marathon 1200 brush / spray head assembly replacement parts for Model 98168. Can’t find your part? Call us at 763-535-0770.
Click on any numbered part in the diagram below to go directly to that part’s product page.

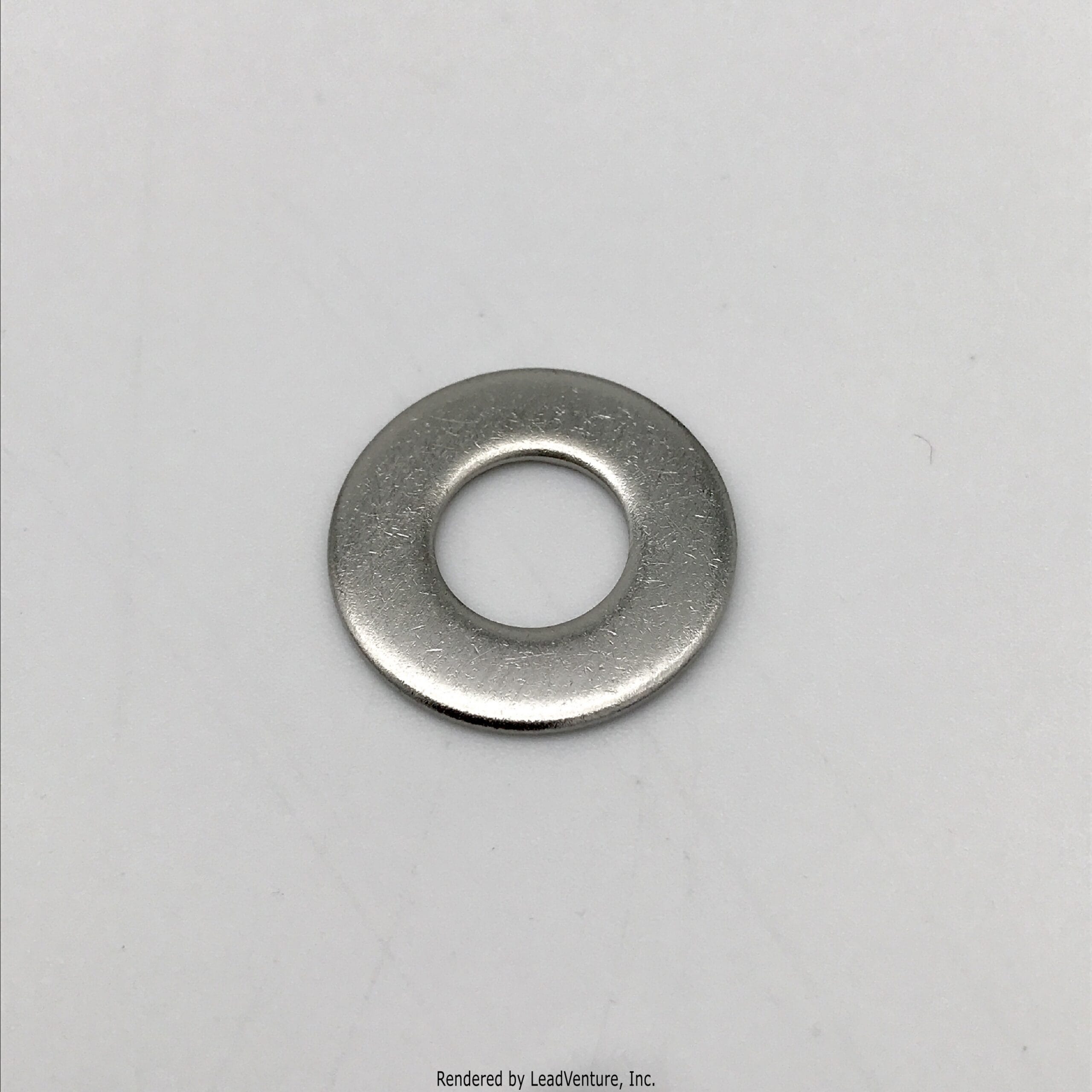

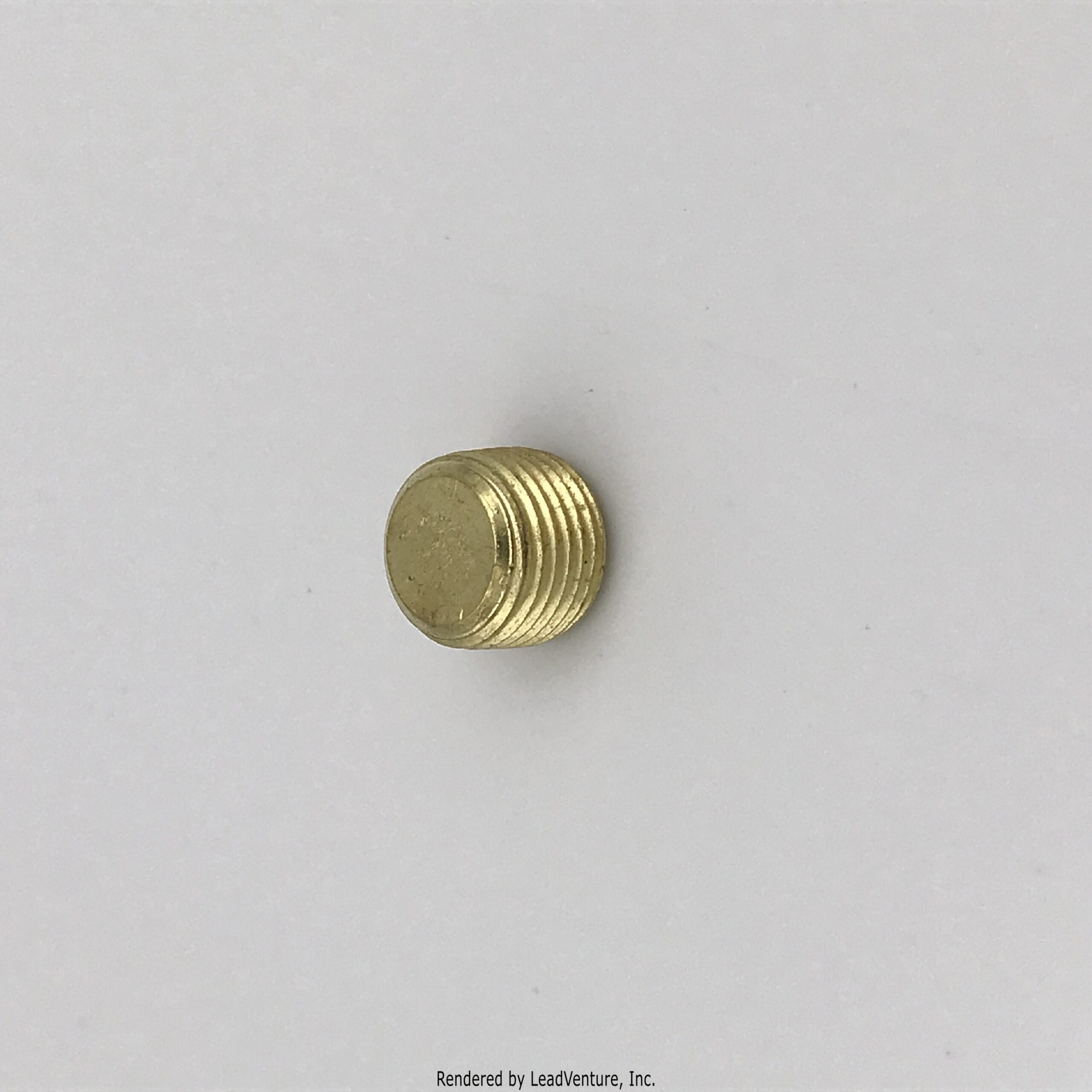

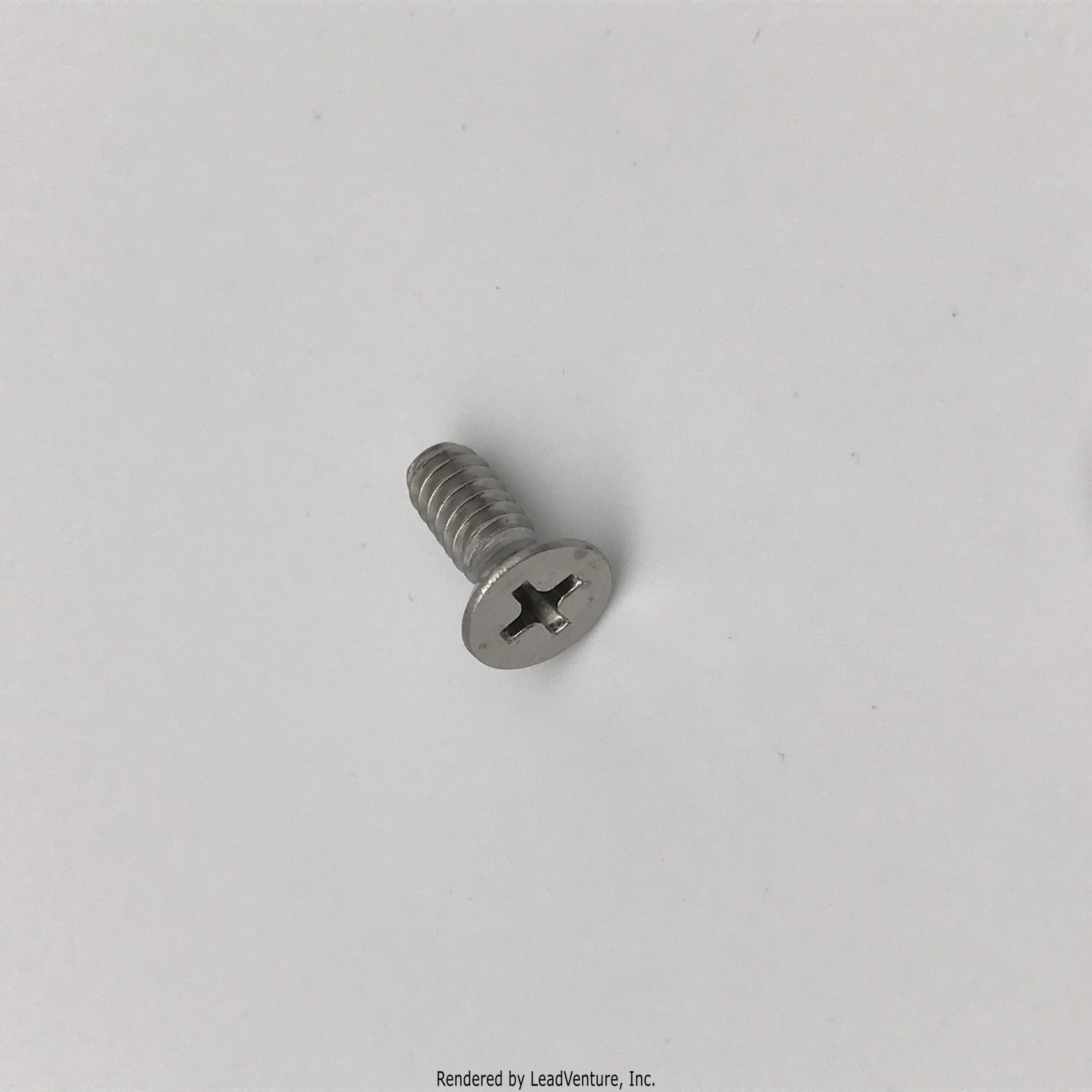

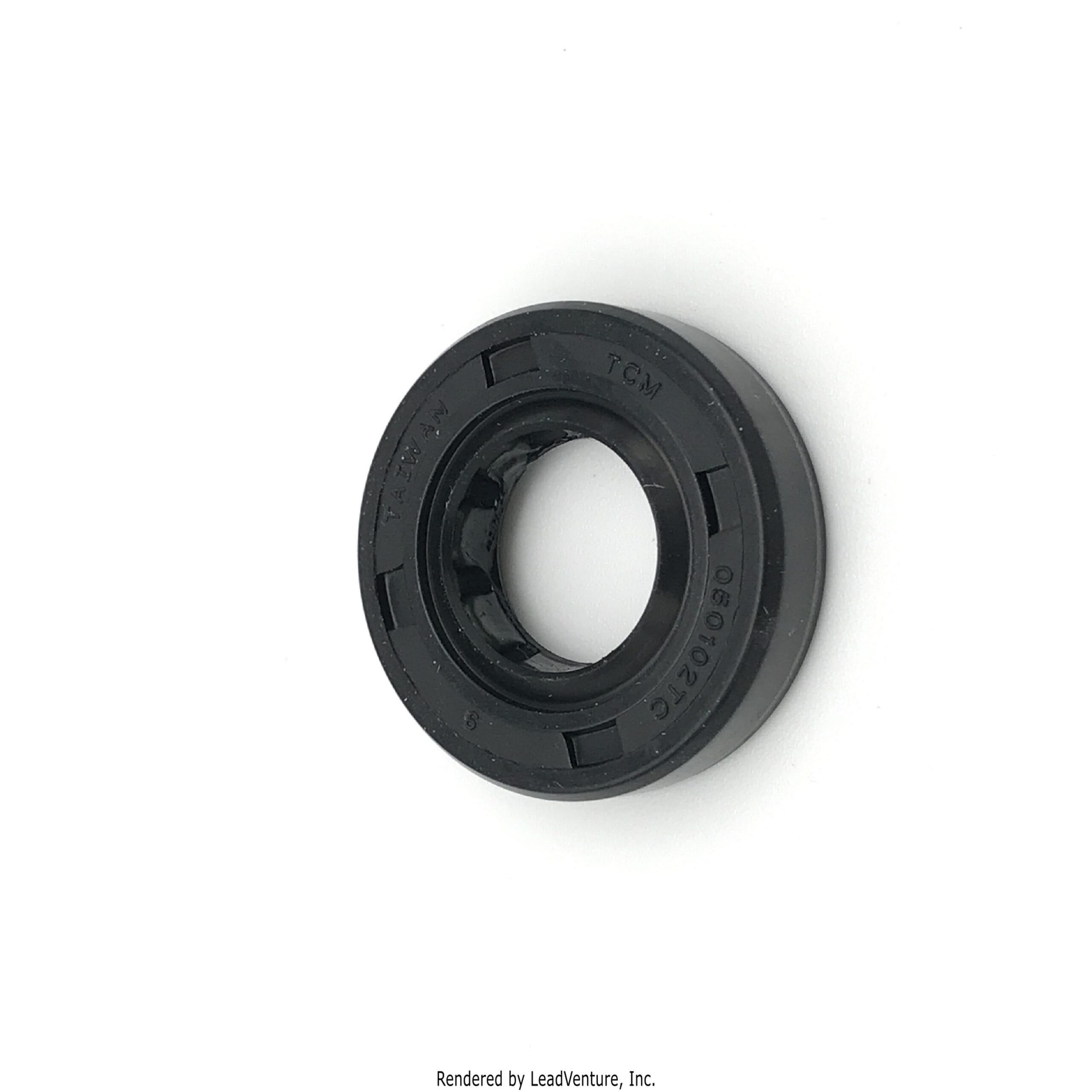

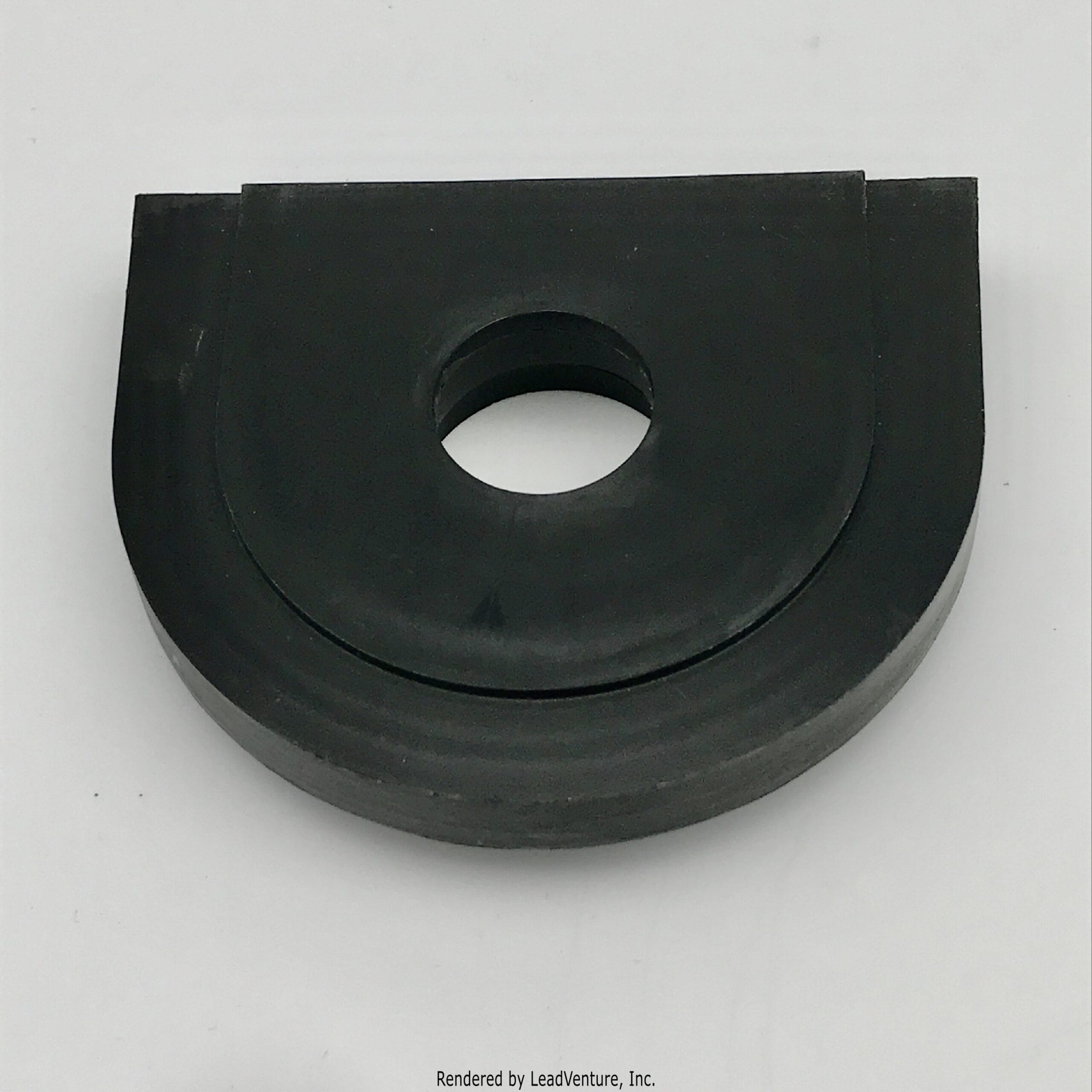

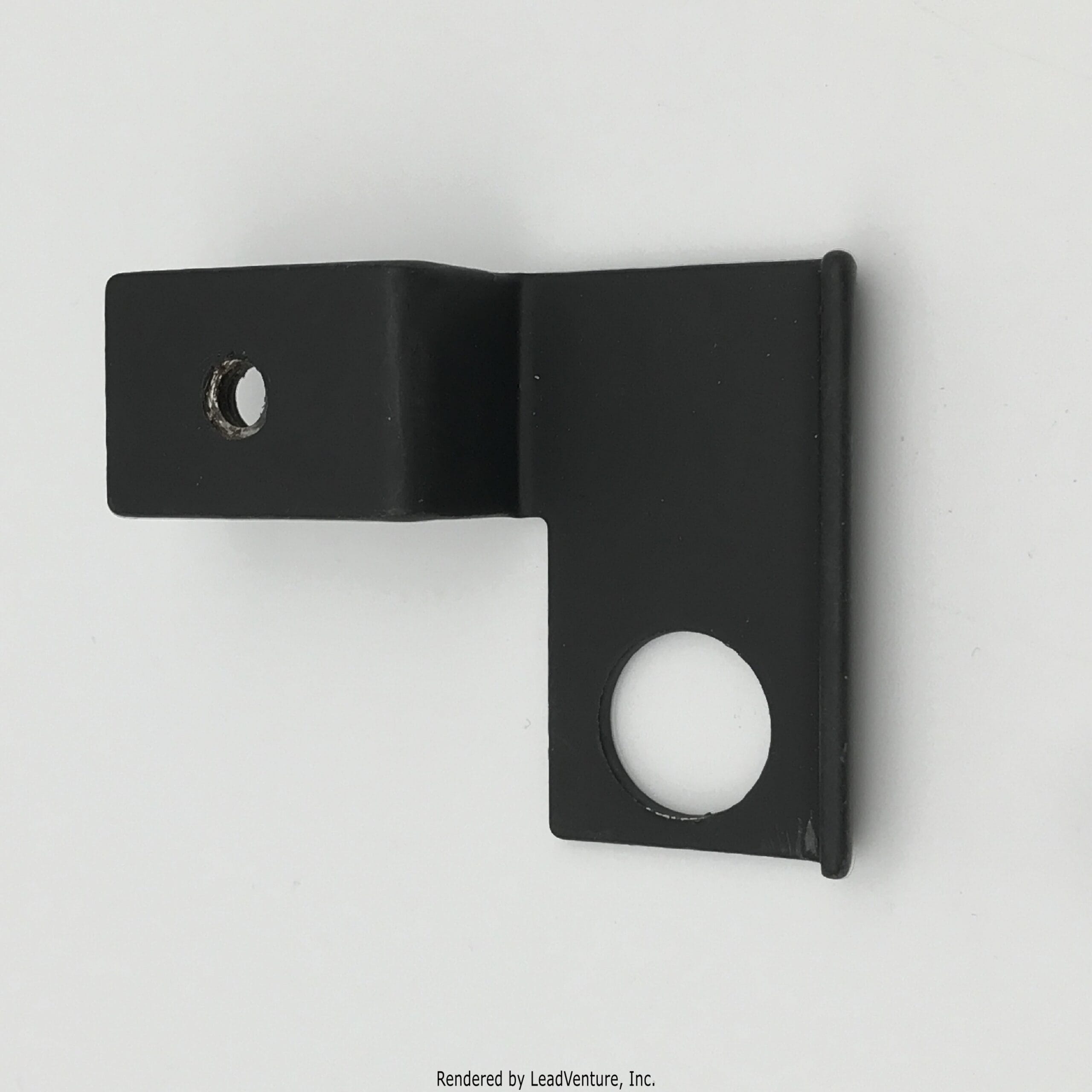

01. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Lock Washer – 0171302. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Kep Nut – 7BF00803. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Bearing 608-2RS – 0520904. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nut – 0528205. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw 1/4-20 x 3/4″ – 1716006. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw #10-24 x 1/2″ – 1795707. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Washer – 1888508. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nut – 1914509. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Brass Plug Fitting 1/8″ MPT – 1914910. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Manifold Retaining Bracket Weldment – 1915211. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nozzle and Body 1/8″ MPT 95° – X913912. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Shroud Latch Lever Clamp – 1915613. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Brush Bearing Block – 1915714. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Bearing Seal – 1915815. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Carpet Brush Roller 17″ – 1915916. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Brush Shaft – 1916017. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Brush Pulley w/#10-32 Set Screw – 1916118. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Base Plate Shroud Gasket – 1916419. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Screw #10-24 x 1/2″ – 1916520. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Spacer – 1919021. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Washer – 1919122. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Shroud Lever Latch – 1919223. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Bolt 1/4-20 x 1″ – X828224. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Brush Shroud Assembly – 3175425. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Bearing Block Gasket – 1922826. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Belt – 1923327. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Shroud Latch Lever Cap – 1927528. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Brush Cover Plate – 3095929. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Motor Pulley w/(2) 8-32 x 1/4″ Set Screws –30. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Nylon Connector QD F 3/8 Tube x 1/4” Thread – 3218631. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Spraybar Manifold – 3218732. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Swivel Elbow 3/8″ Tube (Nylon) – 3218933. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Lock Washer – 3224534. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Hose 3/8″ O.D. x 2″ Tube – 3225835. Tornado 98168 12″ Gallon Self Contained Carpet Extractor Motor w/Pulley – 32495Find genuine Tornado 98168 Marathon 1200 brush and spray head replacement parts for Model 98168. This diagram covers everything that touches the carpet — the 17″ carpet brush roller, its brush shaft, 608-2RS bearings, bearing seals, bearing blocks and bearing block gasket, the drive belt, the brush pulley and the motor with pulley, the brush shroud assembly and its base plate gasket, the shroud latch lever, clamp and cap, the brush cover plate, and the spraybar manifold with its 95° nozzle and body, brass plug fitting and nylon swivel elbows. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
Frequently Asked Questions
The brush has stopped turning but the motor runs. What broke?

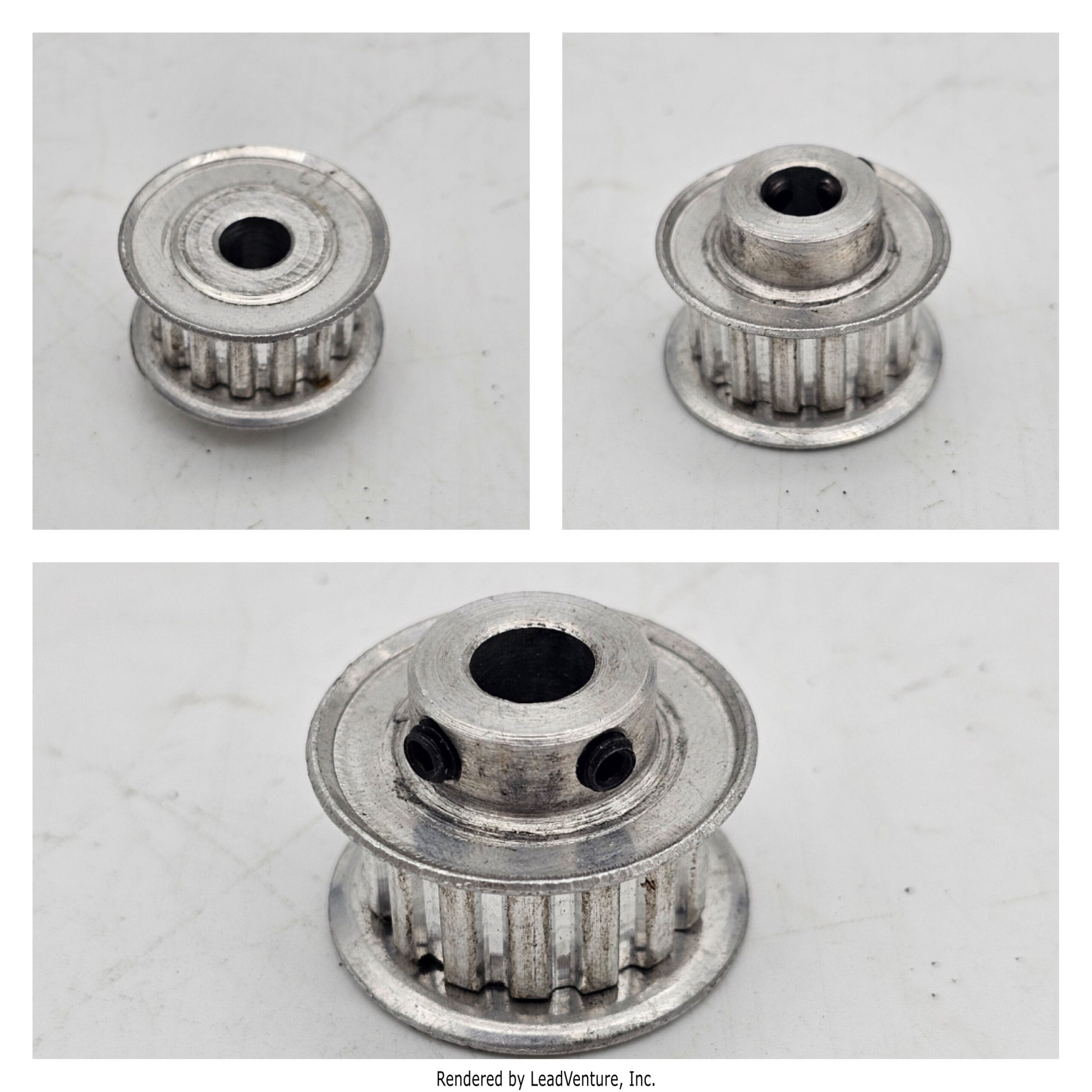

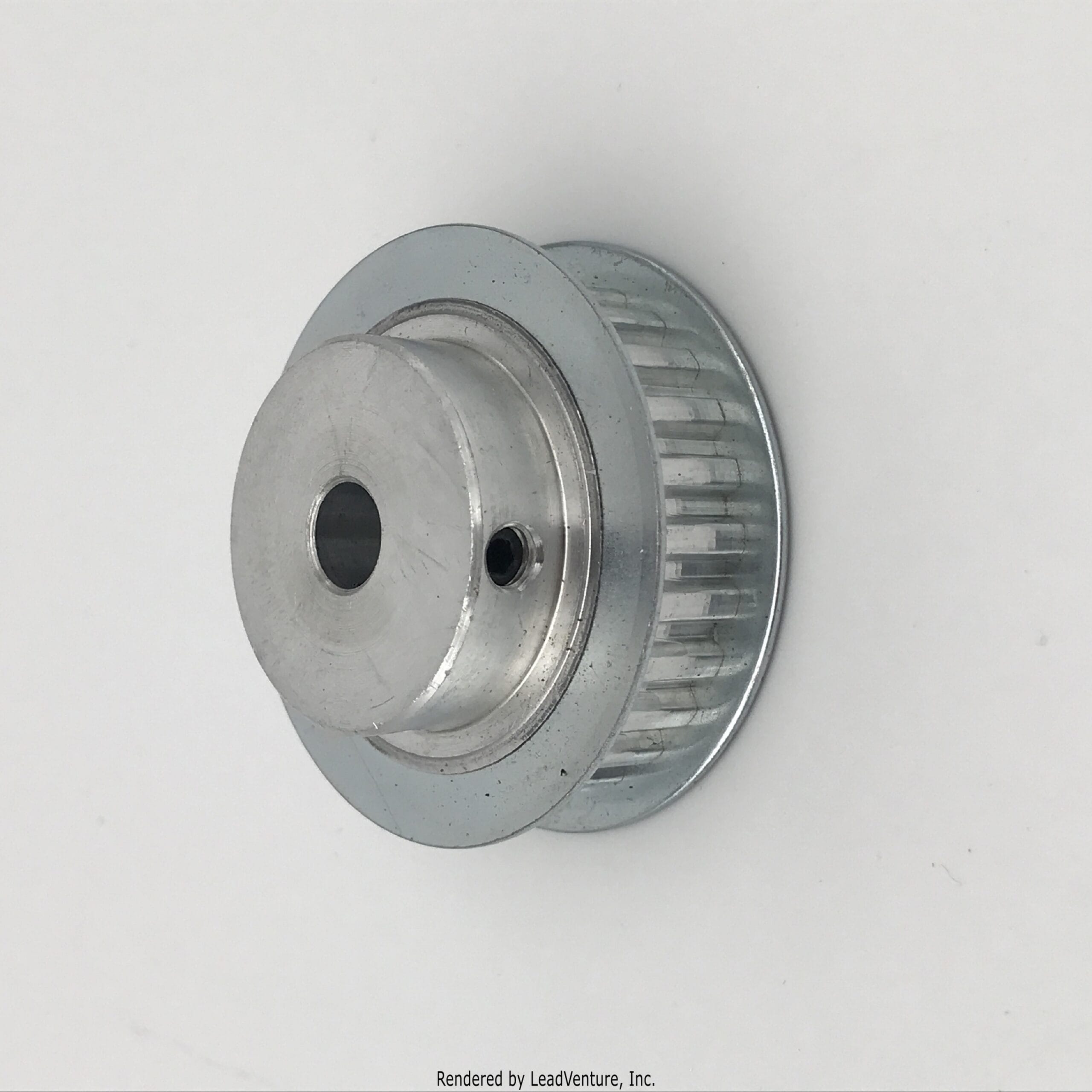

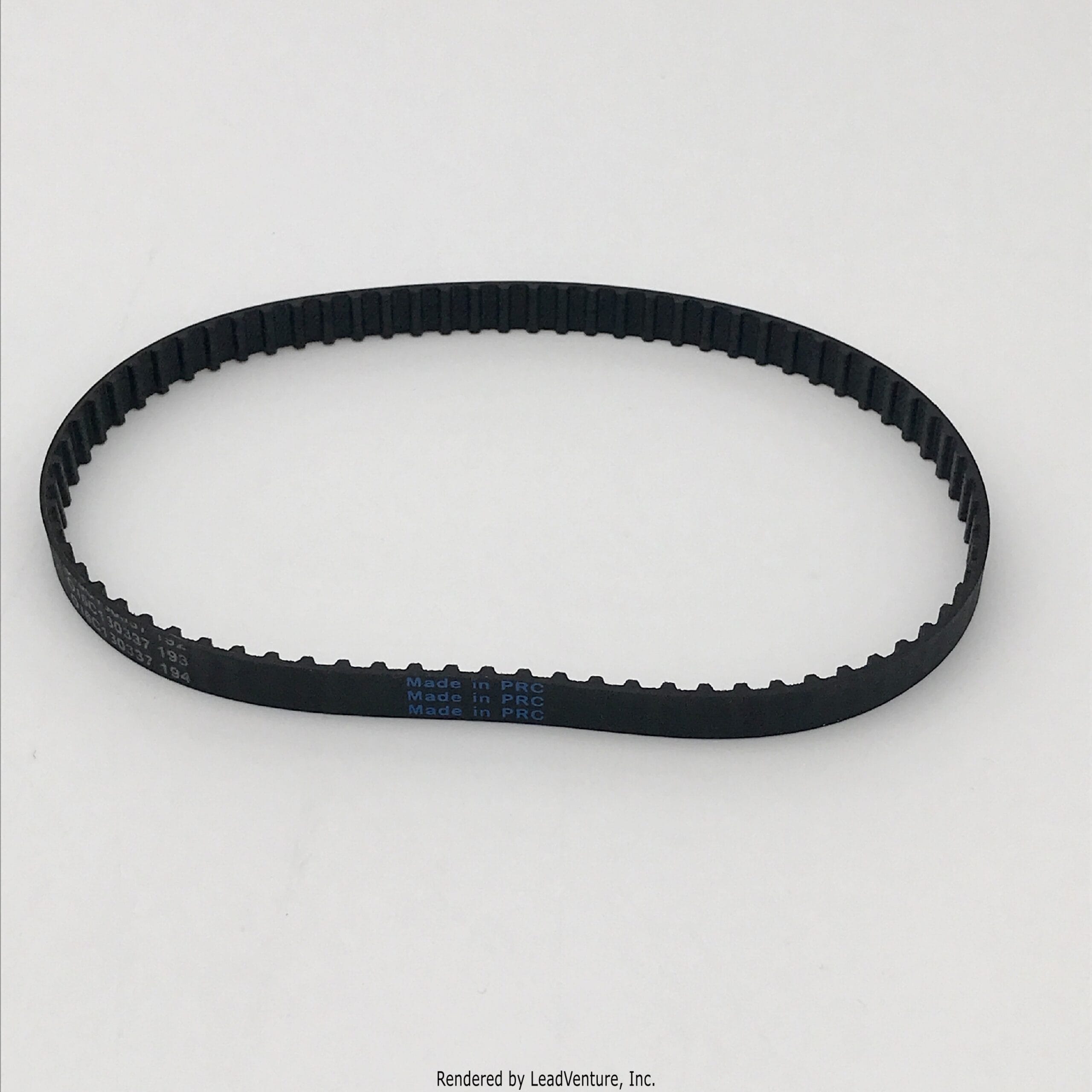

The belt, in most cases. If the belt is intact, check the set screws in the brush pulley and the motor pulley — a loose set screw lets the pulley spin on its shaft and looks exactly like a slipping belt. Seized 608-2RS bearings are the third possibility and they announce themselves with noise first.

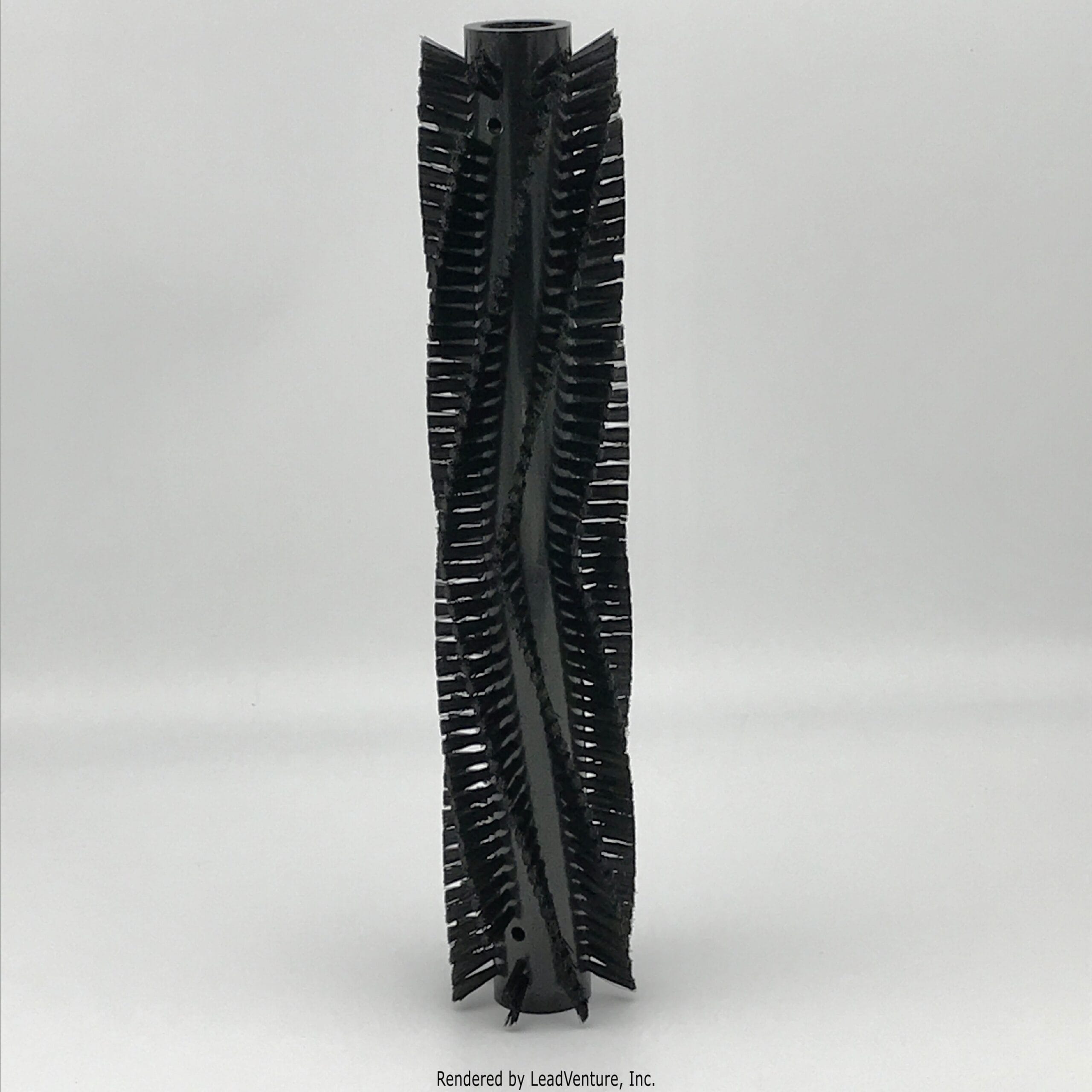

How do I know when the 17″ brush roller needs replacing?
Look at the bristle tips. When they are rounded, splayed or noticeably shorter than the row ends, the brush is no longer agitating — it is just dragging. A worn roller also lets the machine leave streaks that no amount of extra passes will clear.
One section of my spray bar is not spraying. Where is the blockage?

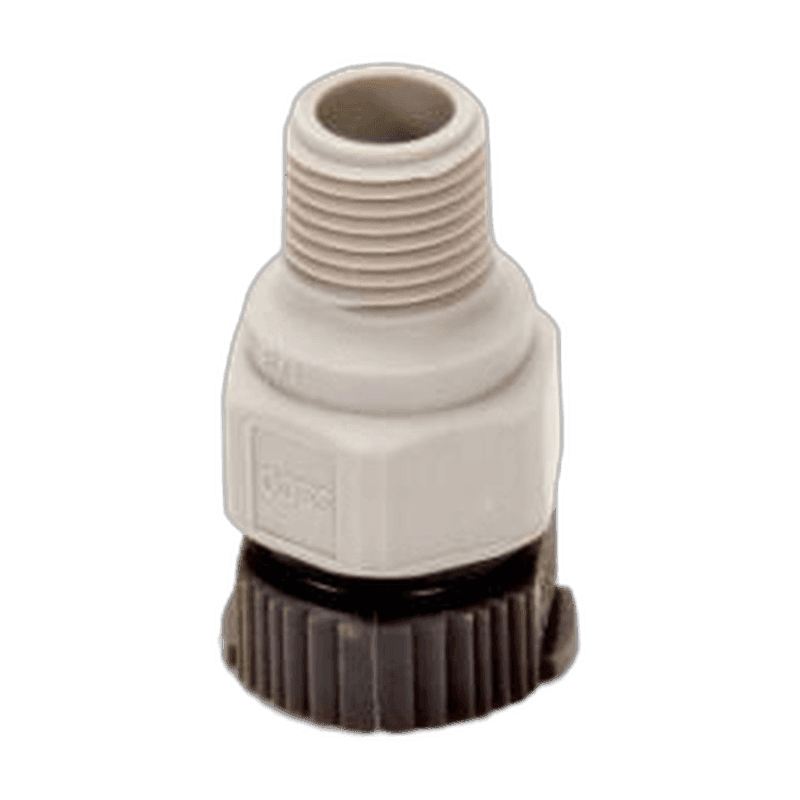

Usually the 95° nozzle and body itself, or the brass plug fitting at the end of the spraybar manifold. Pull and soak the jet before replacing it; if flow is still uneven with a clean jet, check the inline strainer on the tank diagram, since grit that gets past it lands here.
Why does my machine leave a wet stripe on one side?

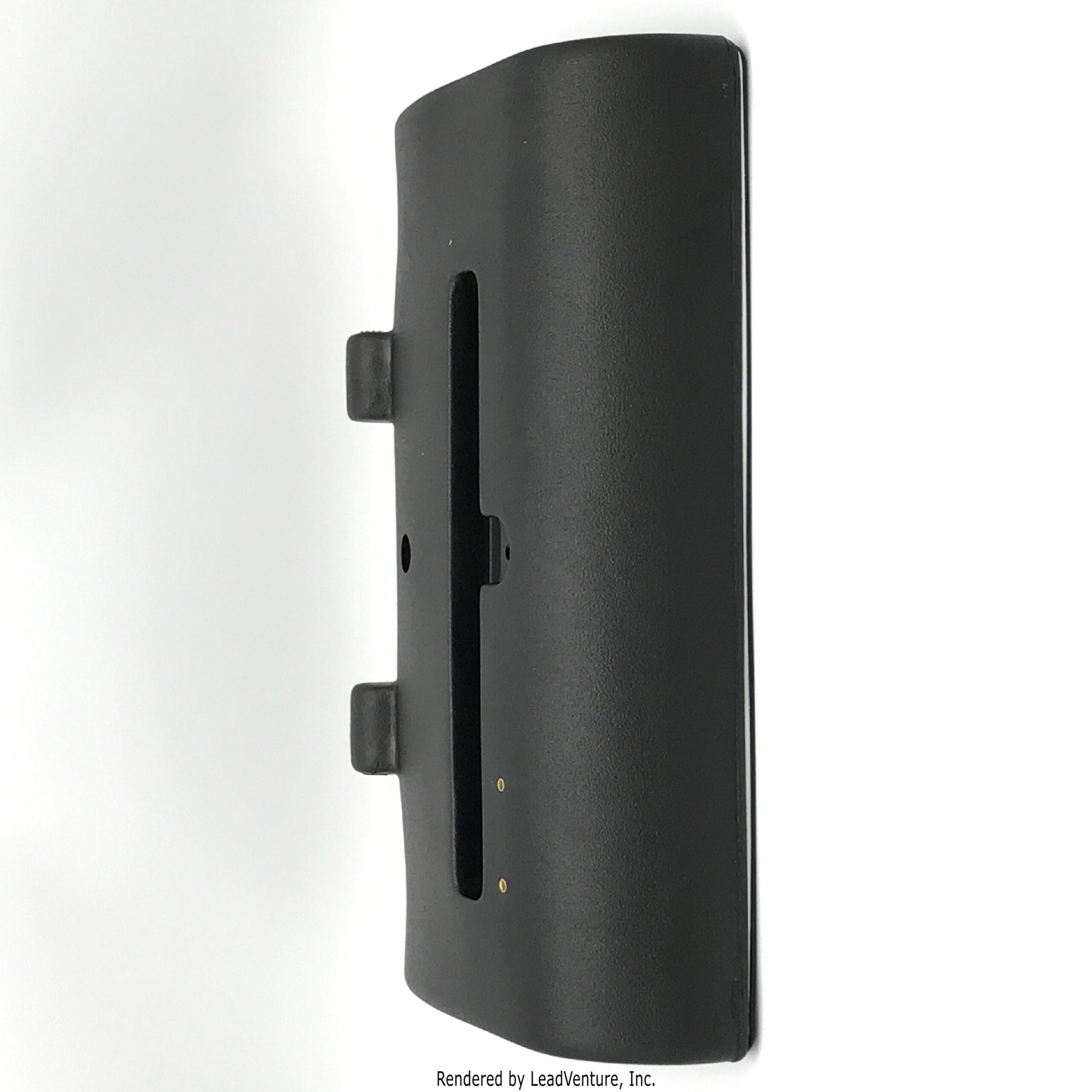

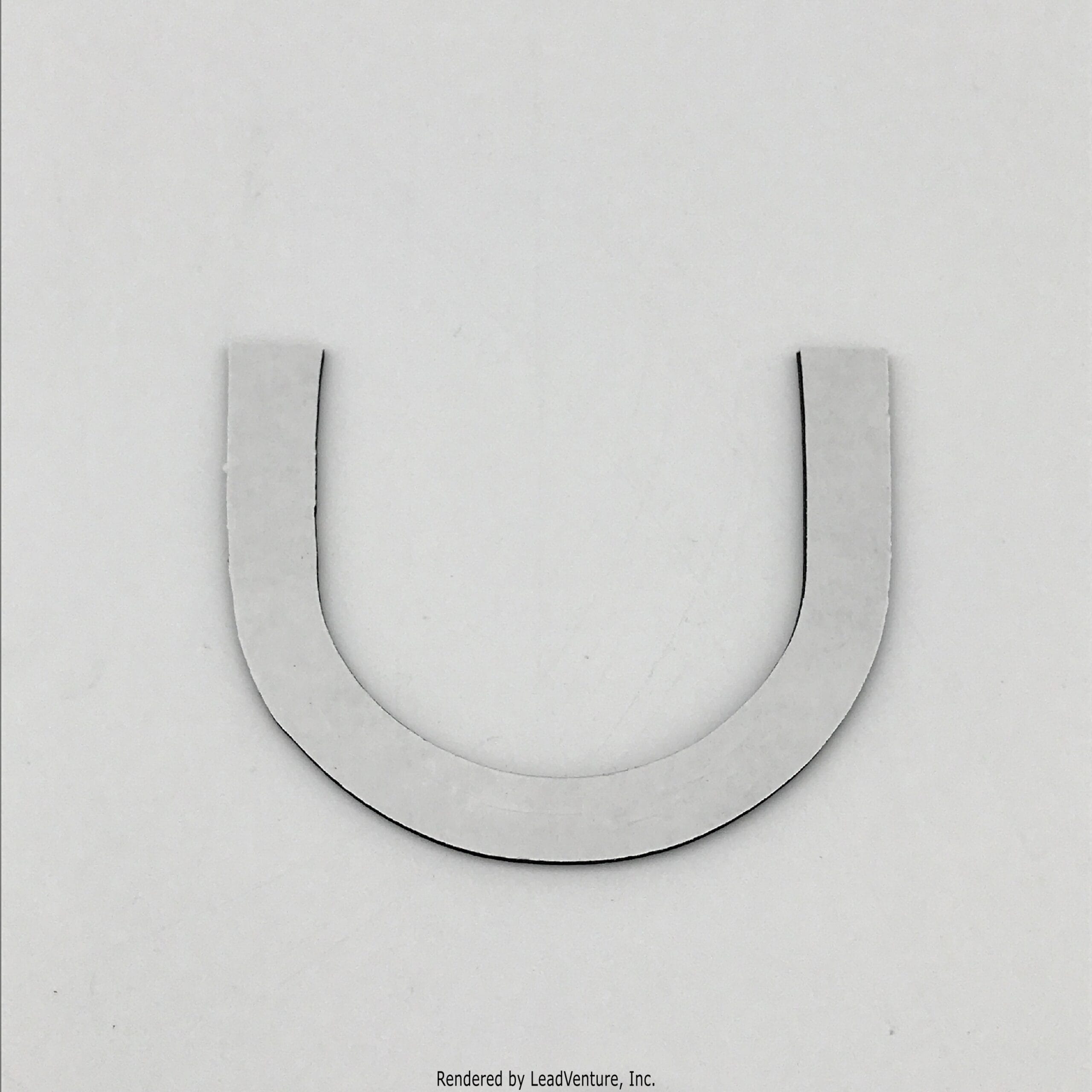

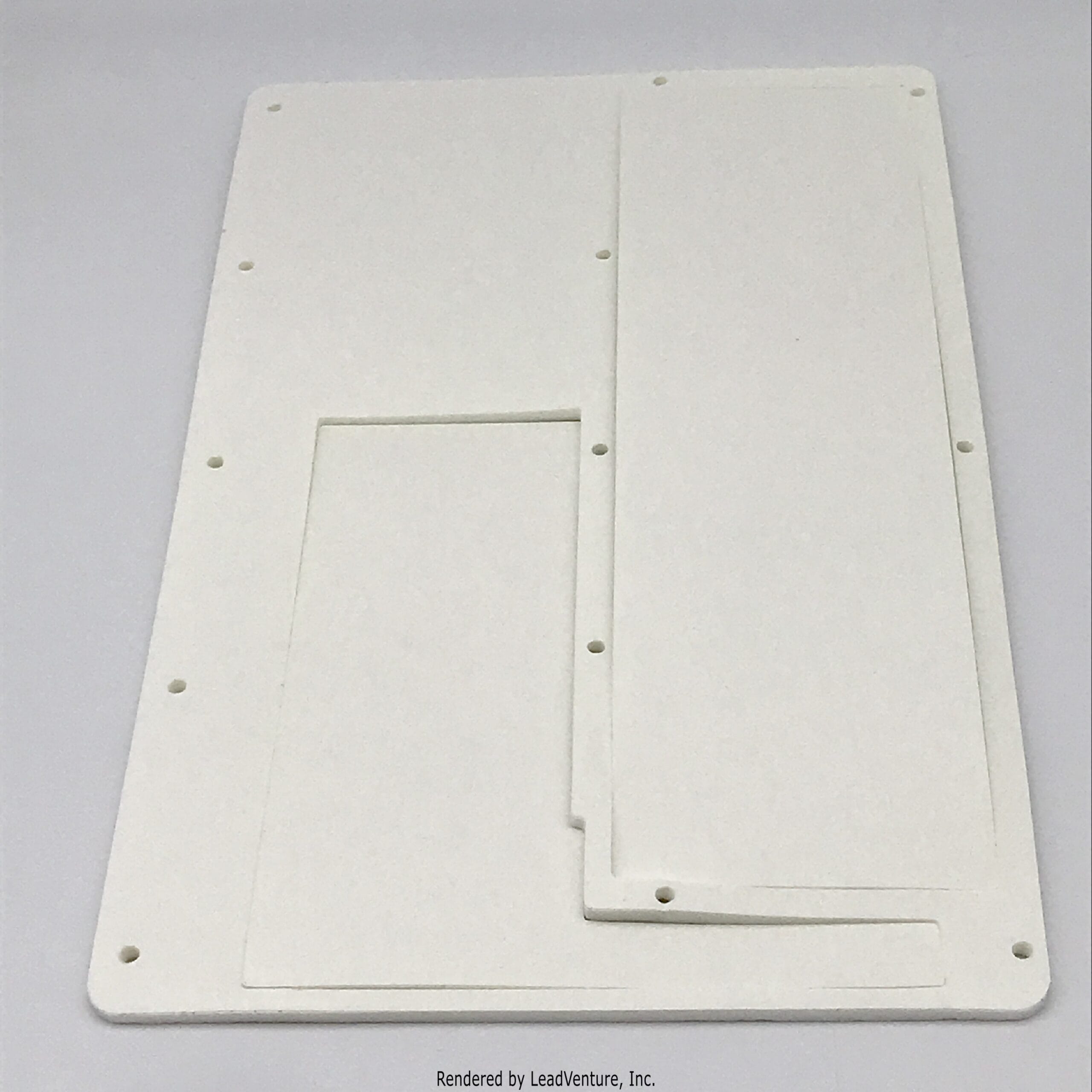

That is nearly always the base plate shroud gasket or a worn bearing block letting the shroud sit unevenly. Check the gasket for a flat spot and the bearing blocks for play before assuming the vacuum motor is at fault.
Browse every assembly for this machine on the Tornado 98168 parts hub, or call 763-535-0770 and we will identify your part from the serial number. Twin City Vacuum, 5415 West Broadway, Crystal, MN 55428.
