CleanMax CM-WAV Handle & Main Body Parts

CleanMax CM-WAV Main Body Parts replacement parts for Model CM-WAV. Can’t find your part? Call us at 763-535-0770.

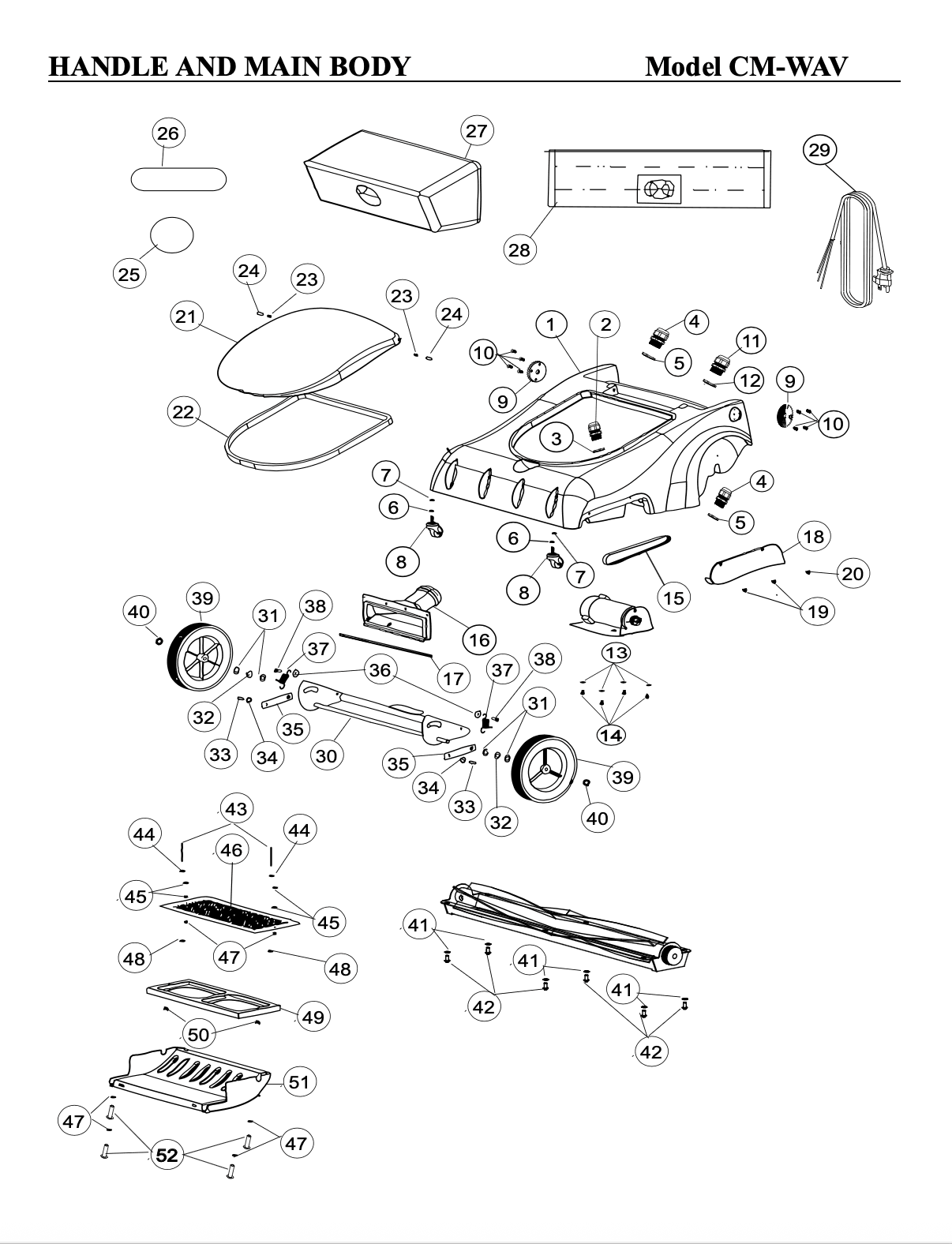

Click on any part in the diagram below or in the table to go directly to that part’s product page.

CleanMax CM-WAV Main Body Parts schematic

Find genuine CleanMax CM-WAV wide-area vacuum main body and handle-mount parts here — the chassis, strain reliefs, mounting brackets, belt cover, filter chute and gasket, front wheel, brush drive belt, and the screws and washers that hold the body together. Twin City Vacuum has sold and serviced CleanMax equipment since 1956 and sources every part directly from Tacony. Call 763-535-0770 or visit 5415 West Broadway, Crystal, MN 55428.

#ImagePart DescriptionPart NumberLink
01Chassis – 33036-VView Part
02Strain Relief 1in – 3008430084View Part
03Nut Lock for Strain Relief 1in – 3008530085View Part
04Strain Relief 1/2in – PD8View Part
05Nut Conduit 1/2 - X8008N part number Nut Conduit 1/2 – X8008NView Part
06Washer-lock - 03536 part number 03536-CMWAVWasher-lock – 0353603536-CMWAVView Part
07Washer - 03321 part number 03321-CMWAVWasher – 0332103321-CMWAVView Part
08Front Wheel 31209 part number 31209Front Wheel 3120931209View Part
09Bracket Grooved Handle - 19798 part number 19798Bracket Grooved Handle – 1979819798View Part
10Screw 8-32X1/2in – 3311433114View Part
11Strain Relief 33191 part number 33191Strain Relief 3319133191View Part
12Strain Relief Lock Nut 3319233192View Part
13Washer-plain 1/4 - 00851 part number 00851-CMWAVWasher-plain 1/4 – 0085100851-CMWAVView Part
14Screw 1/4-20 X 1/2 – 3320233202View Part
15Brush Drive Belt 19802 part number 19802Brush Drive Belt 1980219802View Part
16Filter Chute 3319333193View Part
17Chute Gasket 33502 part number 33502Chute Gasket 3350233502View Part
18Belt Cover 33057A part number 33057ABelt Cover 33057A33057AView Part
19Screw 1/4-20 X 1/2in – 1516215162-CMWAVView Part
20Screw #12 X 3/4in - X9425 part number X9425Screw #12 X 3/4in – X9425X9425View Part
21Lid CLEANMAX Green – B353-4120B353-4120View Part
22Gasket Hood - 30079B part number 30079BGasket Hood – 30079B30079BView Part
23Spring - 15357 part number 15357-CMWAVSpring – 1535715357-CMWAVView Part
24Lid Hinge Pin 19864 part number 19864Lid Hinge Pin 1986419864View Part
25Round Lid Decal – B207-0300B207-0300View Part
26Logo Decal – B207-0200B207-0200View Part

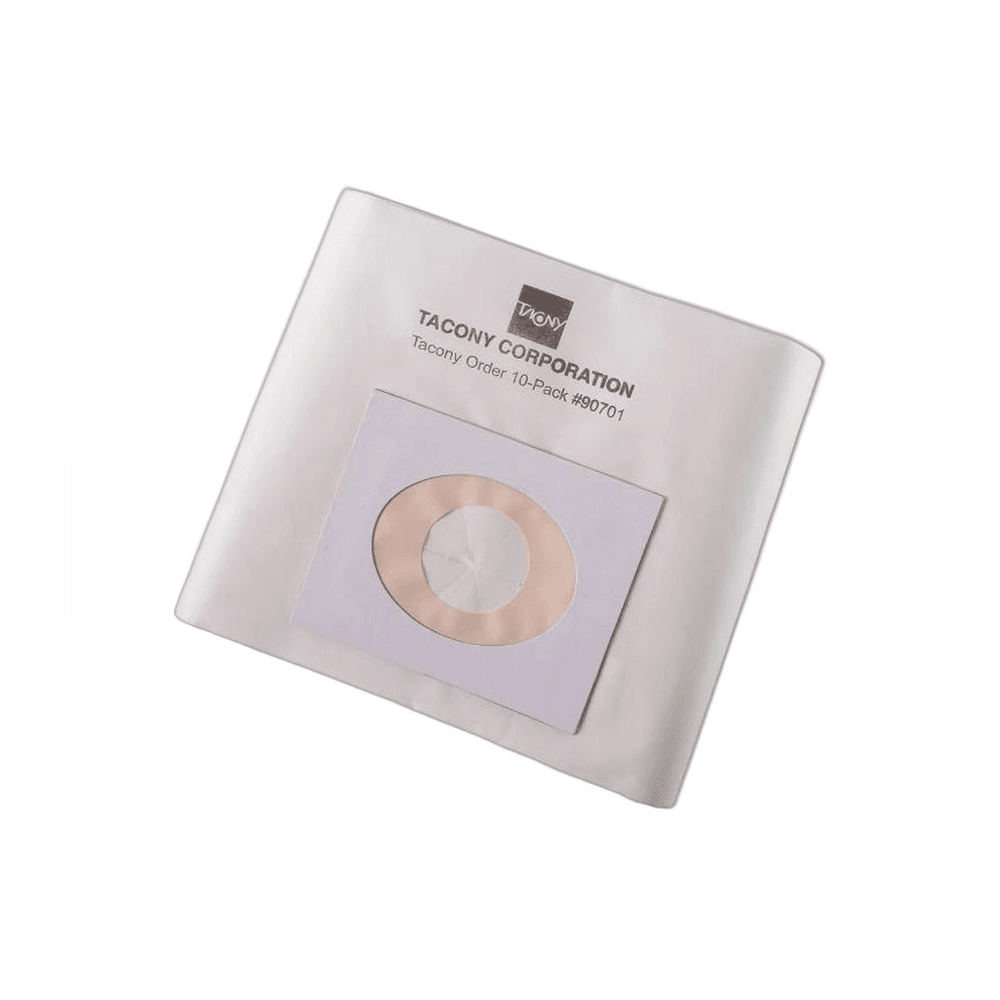

28Paper Bag 90701 part number 90701Paper Bag 9070190701View Part
29Power Cord 19473 part number 19473Power Cord 1947319473View Part
30Brush Level Axle 30491 part number 30491Brush Level Axle 3049130491View Part
31Plain Washer .563 ID 19616 part number 19616Plain Washer .563 ID 1961619616View Part
32Curved Spring 1/2 in. 19818 part number 19818Curved Spring 1/2 in. 1981819818View Part
33Pivot Sleeve .5 in. 30461 part number 30461Pivot Sleeve .5 in. 3046130461View Part
34Screw 1/4-20 x 1-1/8 1999919999View Part

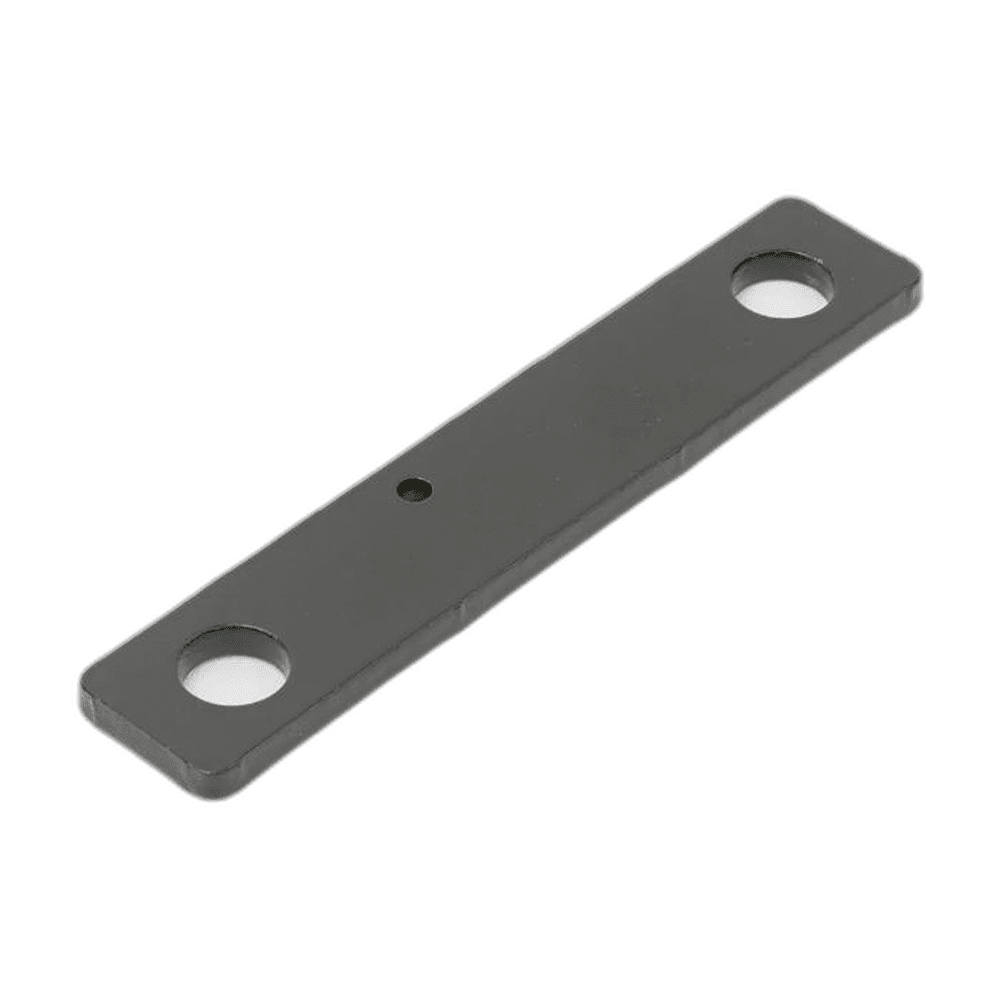

35Wheel Pivot Arm 19841 part number 19841Wheel Pivot Arm 1984119841View Part
36Pivot Sleeve 30464 part number 30464Pivot Sleeve 3046430464View Part
37Tension Spring 3046630466View Part
38Socket Shoulder Bolt 3061730617View Part
39in. Plastic Hub Wheel 1979719797View Part
40Snap Ring - 30507 part number 30507Snap Ring – 3050730507View Part
41Washer 1/4ID Tooth - 7CY002 part number Washer 1/4ID Tooth – 7CY002View Part
42Screw 1/4-20 X 1/2 - 00086 part number 00086-CMWAVScrew 1/4-20 X 1/2 – 0008600086-CMWAVView Part
43Screw #10-32 3in Long – 3363033630View Part
44Washer-sealing – 1138511385-CMWAVView Part
45Nut Hex #10-32 - 01604 part number 01604-CMWAVNut Hex #10-32 – 0160401604-CMWAVView Part
46Vac Cover - 30080 part number 30080Vac Cover – 3008030080View Part
47Washer Plain - 11219 part number 11219Washer Plain – 1121911219View Part
48Nut Hex Lock - 30358 part number 30358Nut Hex Lock – 3035830358View Part
49Filter Exhaust – 1985519855View Part
50Wing Nut 19975 part number 19975Wing Nut 1997519975View Part
51Cover Exhaust – 19854G19854GView Part
52Thumb Screw #10-24 x 1/2 3001830018View Part

Frequently Asked Questions

What main body parts fit the CleanMax CM-WAV wide area vacuum?

The CM-WAV main body includes the chassis, strain reliefs and lock nuts, handle mounting brackets, belt cover (33057A), filter chute (33193) and chute gasket (33502), front wheel (31209), brush drive belt (19802), and the fasteners that secure them. Use the numbered diagram above to match each part to its position.

How do I know which screw or washer I need for my CM-WAV?

Match the item number on the schematic diagram to the same number in the table below it — each row gives the exact part description and Tacony part number. If you are unsure, call 763-535-0770 with your machine and we will confirm the right fastener.

Where do the filter chute and belt cover sit on the CM-WAV?

The filter chute (33193) and chute gasket (33502) form part of the main body airway, and the belt cover (33057A) encloses the brush drive belt. All three appear on the diagram above and can be added to your cart from the table.

How do I order CleanMax CM-WAV main body parts or get help?

Add any part directly to your cart from the table on this page, or call us at 763-535-0770. Our staff at 5415 West Broadway, Crystal, MN 55428 has serviced CleanMax equipment since 1956 and can confirm the right part for your CM-WAV.

Looking for other CleanMax CM-WAV parts? Browse the complete CleanMax CM-WAV parts diagrams, or call 763-535-0770. Learn more at CleanMax.
