Click on any numbered part in the diagram below to go directly to that part’s product page.
1. Tornado Decal 33047
2. Swirl Logo Decal 5 in 30811
3. Screw #10-24 x 1/2 in (11240 / X9370) – Series J
4. Lid Hinge Bracket X2090
6. Latch Release Spring 15357
5. Lid Hinge Pin 19864
7. Molded Lid 19832
8. Hood Gasket 30079B
9. Wide Area Vacuum Intake Filter 19834
10. Hose Clamp 33107
11. Motor, Vacuum, WAV 30092C
12. Motor Gasket 30090

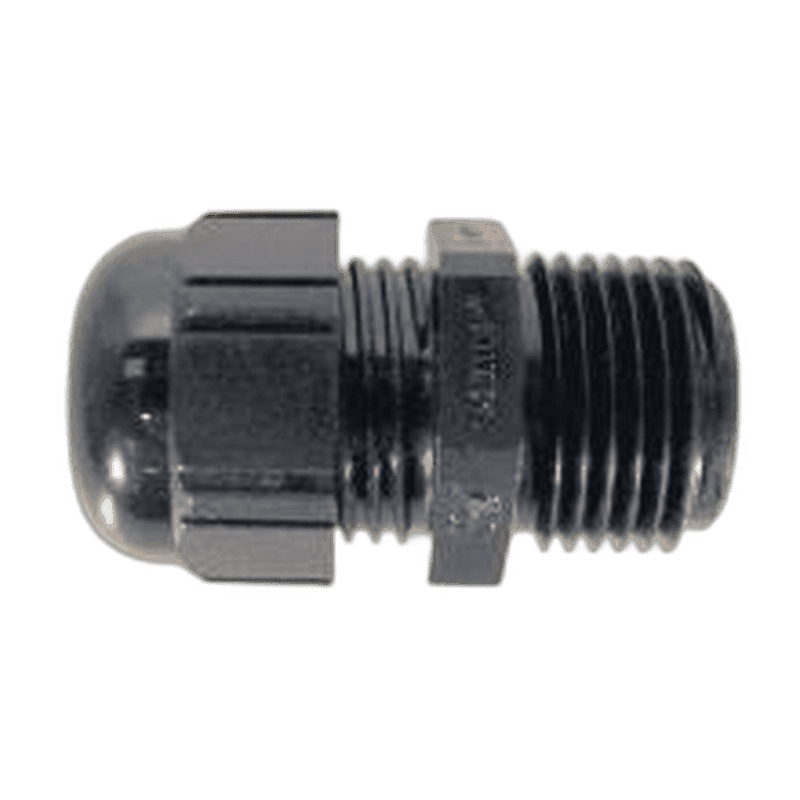

14. Strain Relief PD8
13. Power Cord 19473
61. Screw #10-32 x 3" 33630
19. Strain Relief 33191
20. Lock Nut (For Strain Relief 33191) 33192
15. Steel Conduit Lock Nut 1/2 in X8008N
16. Qualified Made In The USA Label X1003
17. Strain Relief 1" 30084
18. Strain Relief Nut 1" 30085
21. Plastic Grooved Bracket 19798P
22. Screw 8-32 x 1/2" Flat Socket Cap X2708
23. Main Chassis 33036-V
58. Washer 03321
24. Brush Drive Belt 19802
53. Plain Washer .563 ID 19616
25. Belt Cover 33057A
57. Lock Washer 03536
26. Screw 1/4-20 x 1/2 in 15162
56. Front Wheel 31209
28. Screw #12 x 3/4" X9425
54. Curved Spring 1/2" 19818
29. Motor Mounting Screw #10-16 x 3/4 30620
30. Brush Level Axle 30491
31. Pivot Sleeve 30464
55. Level Adjustment Label 30618
52. Wide Area Vacuum HEPA Bags 90701H (10-Pack)
32. Tension Spring 30466
51. Wide Area Vacuum Reusable Cloth Filter Bag 19816
33. Socket Shoulder Bolt 30617
34. 10 in. Plastic Hub Wheel 19797
50. Screw #10 x 3/4 in 33195

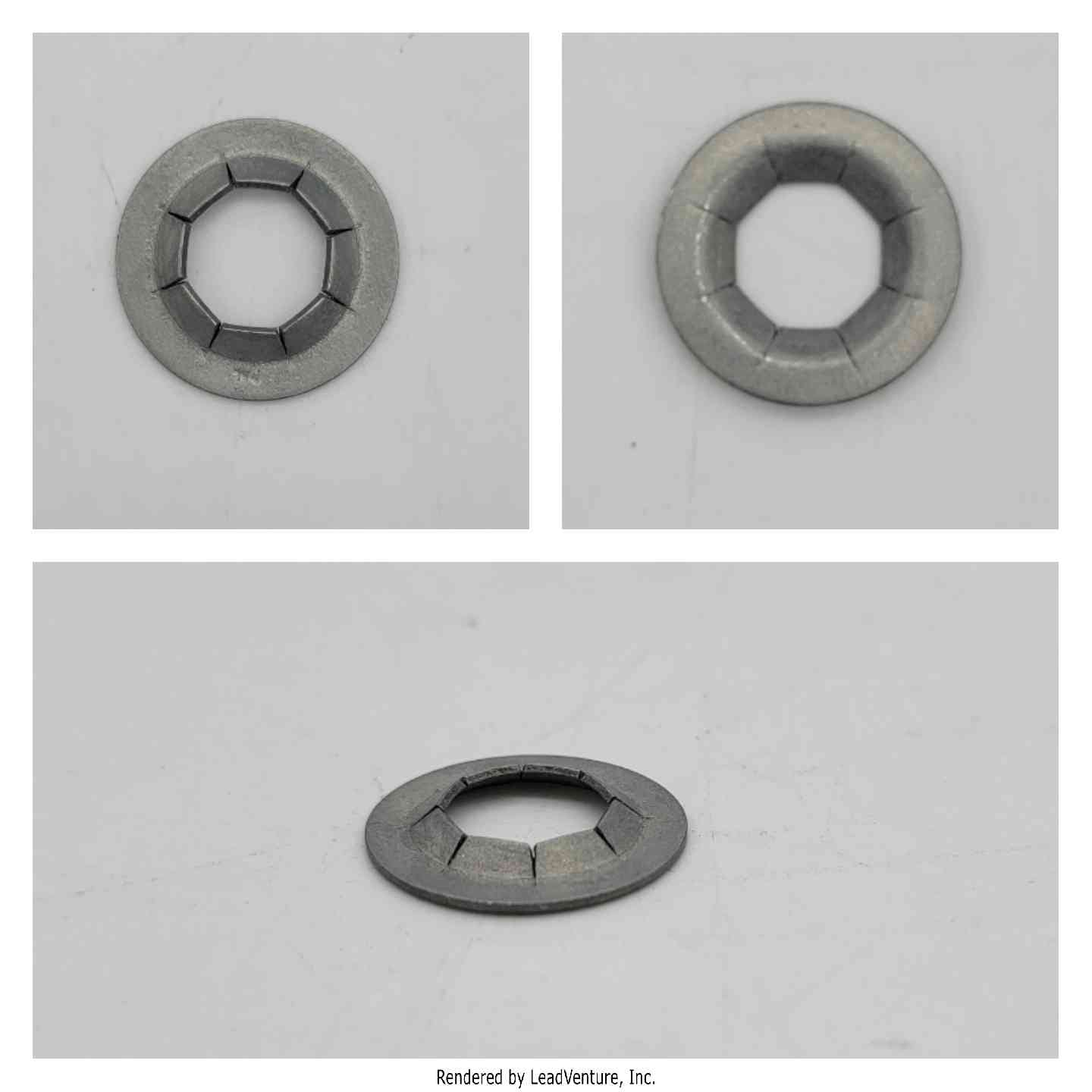

35. Starlock Washer 02-0254-0000
49. Filter Chute 33193
47. Washer 11385
48. Chute Gasket 33502
36. Screw 1/4-20 x 1-1/8" 19999
46. Nut 01604
37. Pivot Sleeve .5 in. 30461
45. Wide Area Vacuum Exhaust Filter X3819
38. Wheel Pivot Arm 19841
44. Wing Nut 19975
39. Thumb Screw #10-24 x 1/2 30018
43. Exhaust Cover 19854G
62. Washer X1428
42. Wide Area Vacuum Brush Roll Assembly 19870

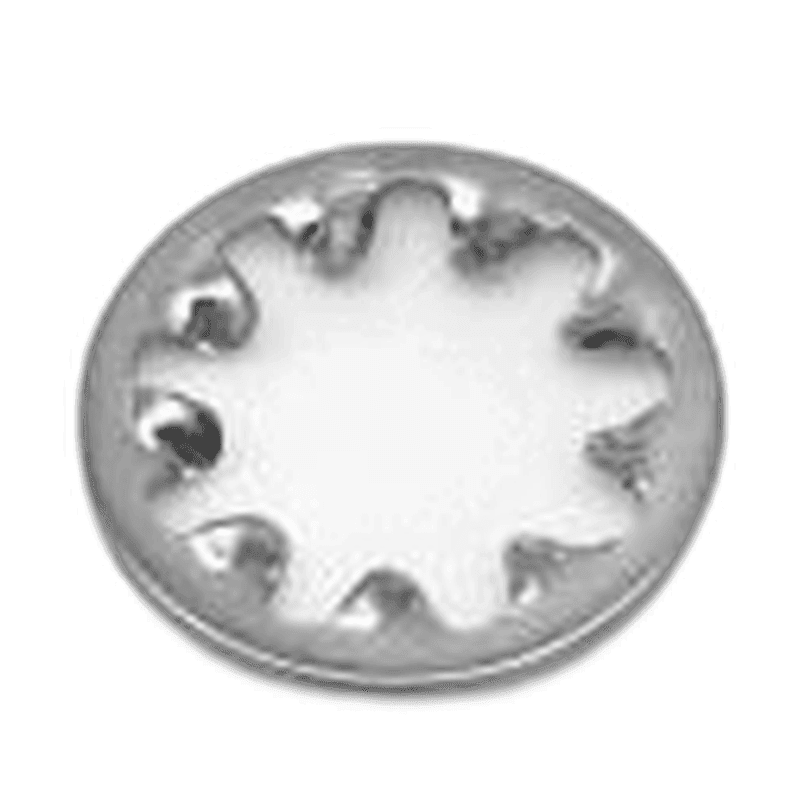

41. Internal Tooth Lock Washer 7CY002Tornado 93030 base assembly parts
Find genuine Tornado 93030 base assembly parts for Model 93030 — the hood and housings, the bag and filter compartment, the drive belt and belt cover, the wheels and pivot hardware, the power cord, switch and circuit breaker, and the machine decals. This is the largest of the six Series J sheets, with 62 numbered callouts. Twin City Vacuum has been selling and servicing Tornado equipment since 1956. All parts sourced directly from Tacony. Call 763-535-0770 or stop by 5415 West Broadway, Crystal, MN 55428.
Includes the five vacuum-motor parts that also appear on the Vacuum Motor diagram.
Frequently Asked Questions
Which Tornado 93030 base assembly parts wear out first?
On the base assembly the drive belt, the bags and filters, and the front wheels are the usual wear items. The belt and belt cover sit on this sheet, as do the cloth filter bag and the HEPA bags. If suction has dropped off, change the bag and the intake filter before condemning the motor.
Where are the bags and filters on the Tornado 93030 diagram?
They are on this base assembly sheet. The reusable cloth filter bag is callout 51 (part 19816), the HEPA bags are callout 52 (part 90701H), and the exhaust filter is callout 45 (part X3819). The intake filter sits on the vacuum motor sheet as callout 3 (part 19834).
My Tornado 93030 brush stopped turning — is the part on this sheet?
Start here with the drive belt and belt cover, which are on the base assembly. If the belt is intact, the fault is usually the brush motor or its pulley, which are on their own sheets, or the brush roll bearings on the brush roll sheet.
Do these base assembly parts fit the earlier series?
The numbering on this sheet follows the current Series J edition. Many base assembly parts carry across Series D through J unchanged, but some were superseded. Call 763-535-0770 with the serial number from the machine’s data label and we will confirm the correct part before you order.
