Genuine Tornado parts for the Tornado TV 2 SS dry canister vacuum, Model 93282 — 32 parts covering the whole machine, from the tank and top covers down to the motor, the wheels and the full tool set. Twin City Vacuum has been selling and servicing Tornado equipment since 1956.
Find your part on the diagram, note the number beside it, and match that number to the first column of the table underneath. Every dotted part opens in a new tab. Can’t find your part? Call us at 763-535-0770.
Tornado TV 2 SS Main Assembly Parts

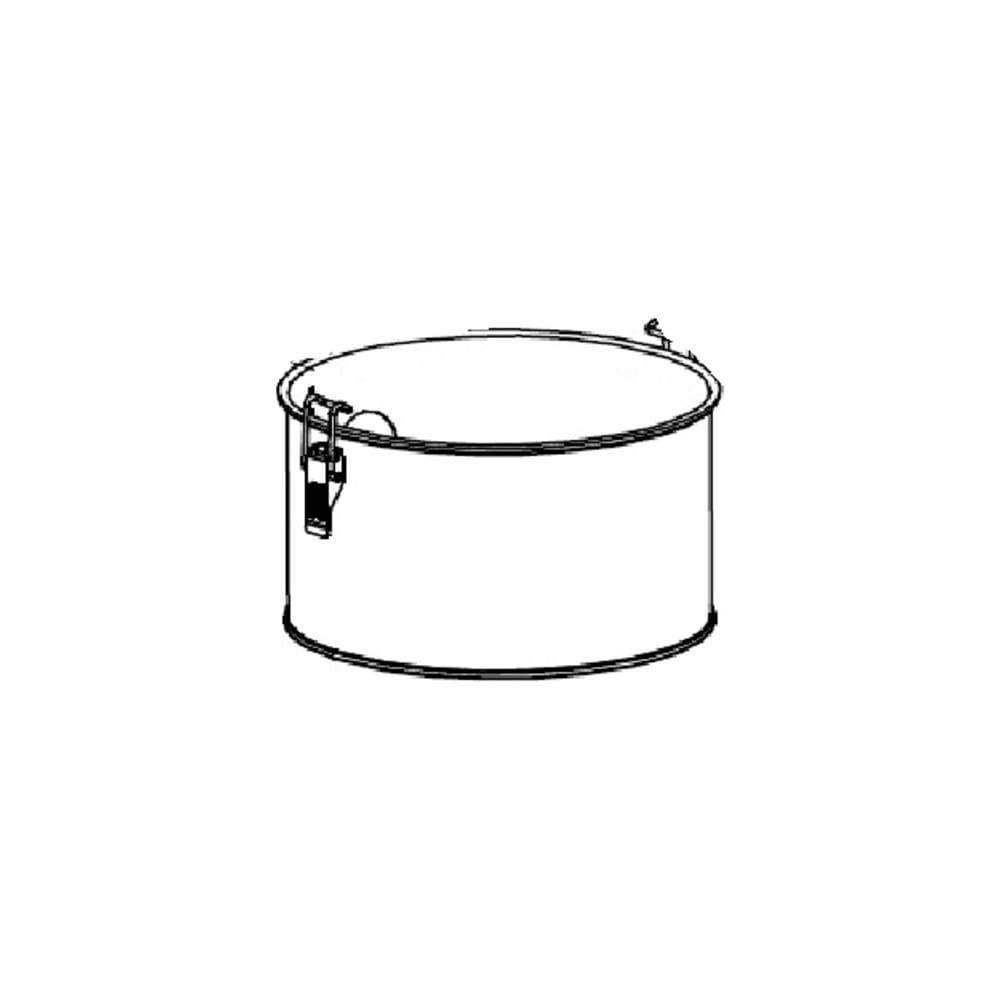

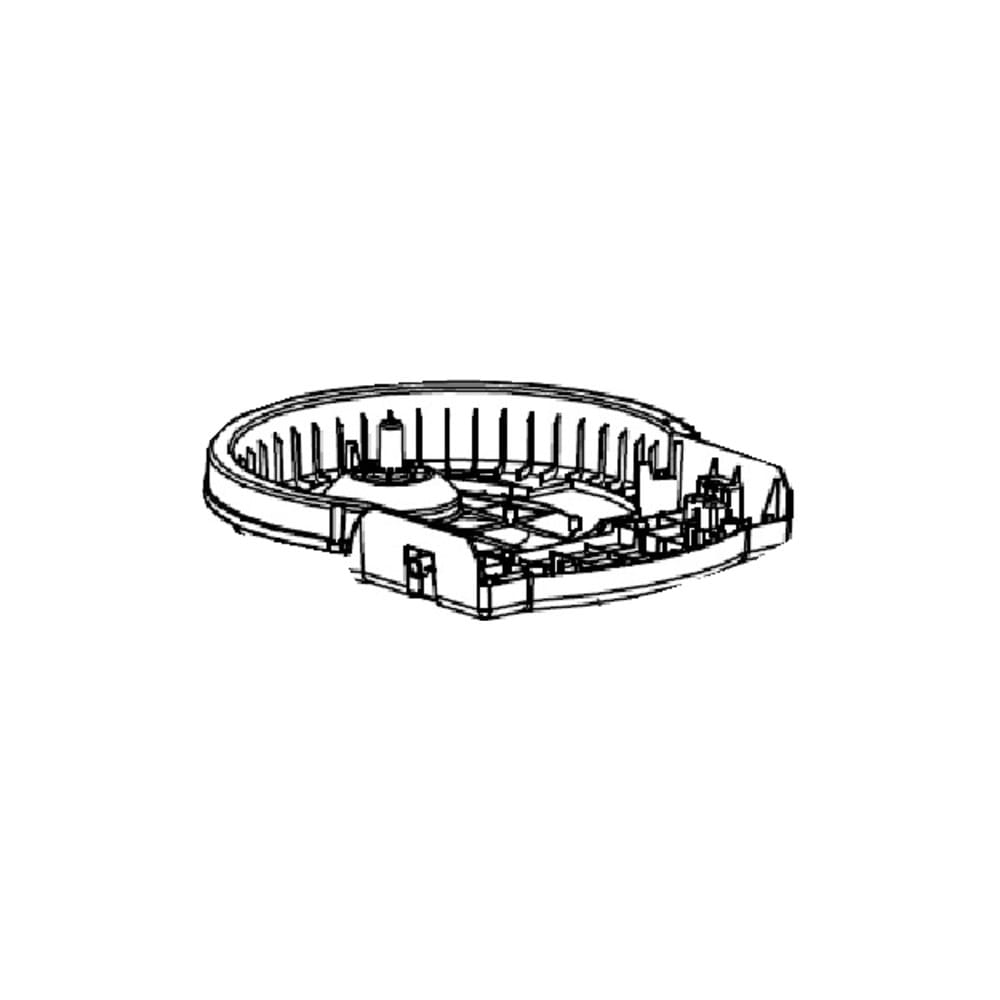

7. Pleated HEPA 12 Filter Kit – 900368. Motor Chamber Seal – 392569. Motor Chamber – 392571. Upper Top Cover Kit – 3925010. Knob – 3925811. On/Off Switch Assembly Kit – 3925912. Power Cord 18/3 40 ft – 3926013. Cord Holder Assembly – 3926114. Control Board Assembly – 392622. Lower Top Cover Kit – 3925116. Insulation, Upper – 3926417. Motor Mount – 392653. Clean Breeze Disposable Filter Bag 10-Pack – 9002518. Vacuum Motor 1200W – 3926619. Motor Cover Assembly Kit with Screw – 392674. Tank Assembly Kit – 3925220. Insulation, Lower – 3926821. Insulation Plate – 392696. Handle Set with Screws – 392545. Hose Inlet Assembly Kit – 3925322. Wheel Kit – 3927023. Caster Assembly – 3927124. Base Assembly with Screws – 3927212A. Power Cord 230V – 3927314A. Control Board Assembly 230V – 3927418A. Vacuum Motor 230V – 3927530. Reusable Cloth Shake-Out Bag – 90035

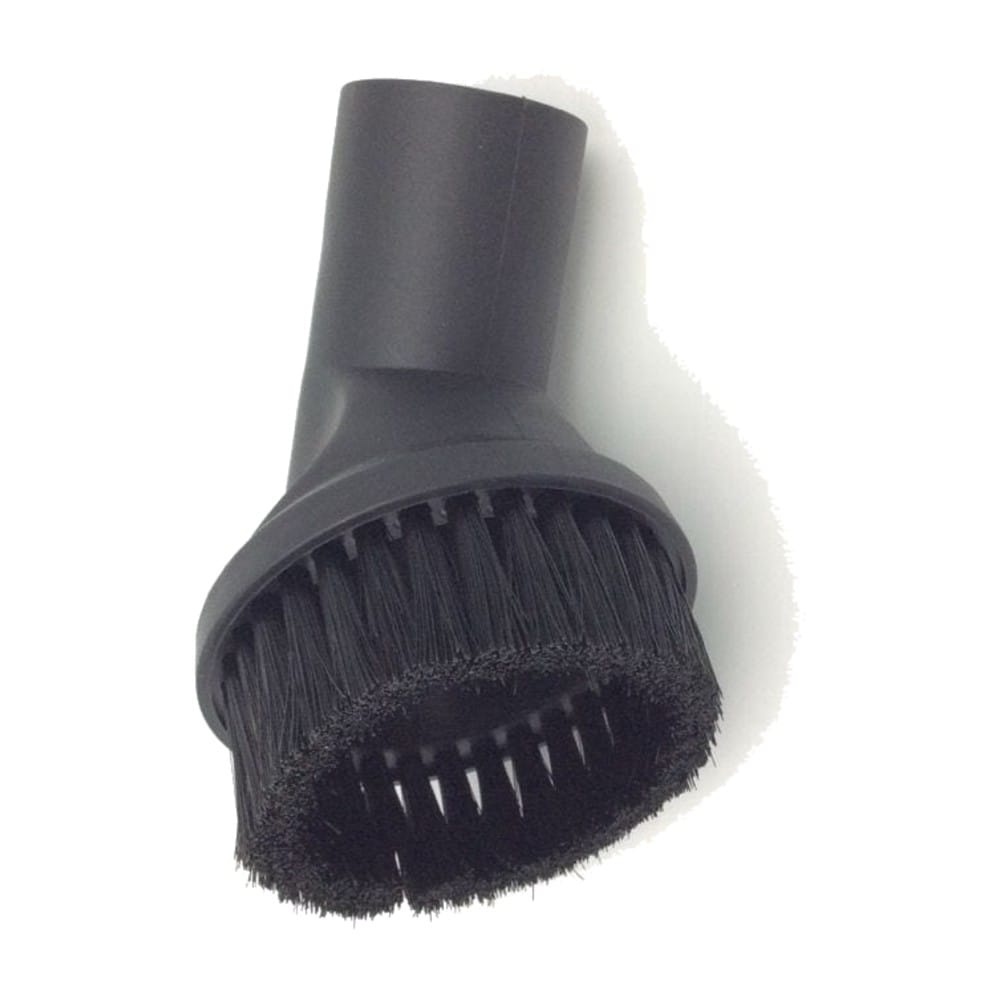

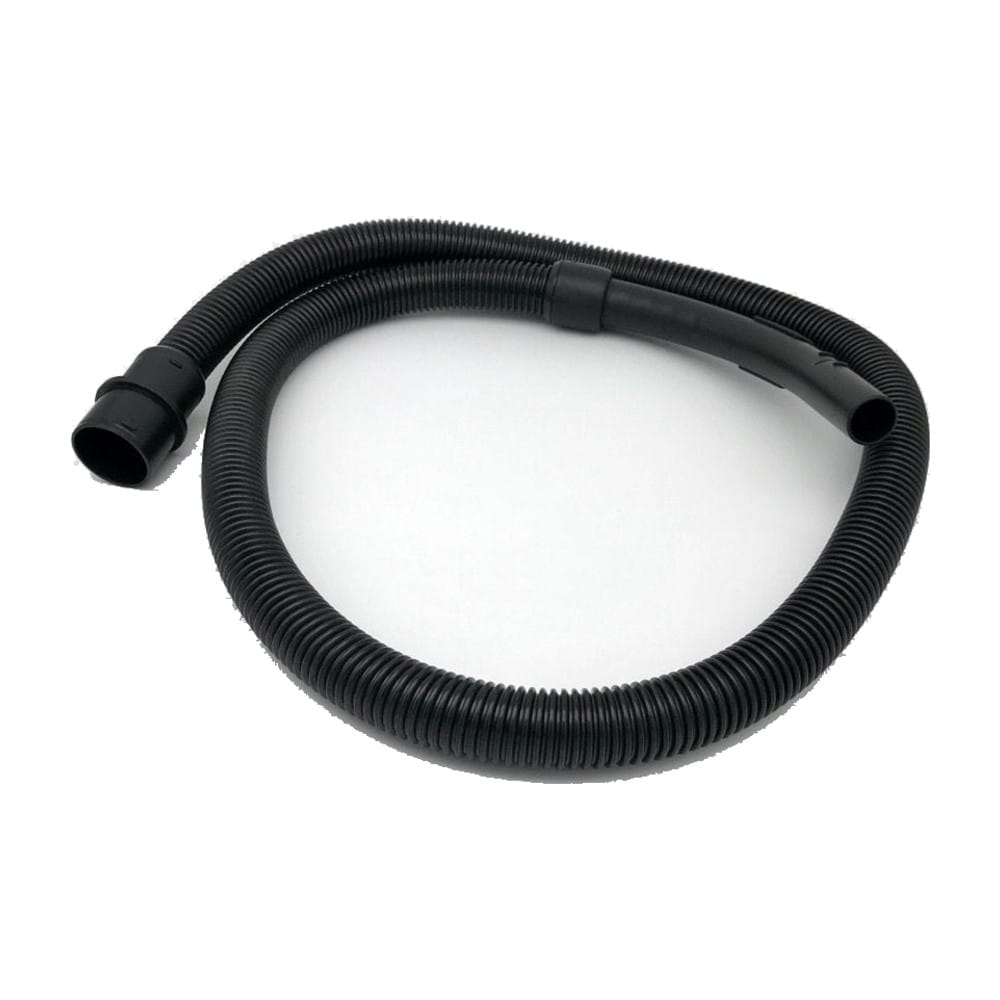

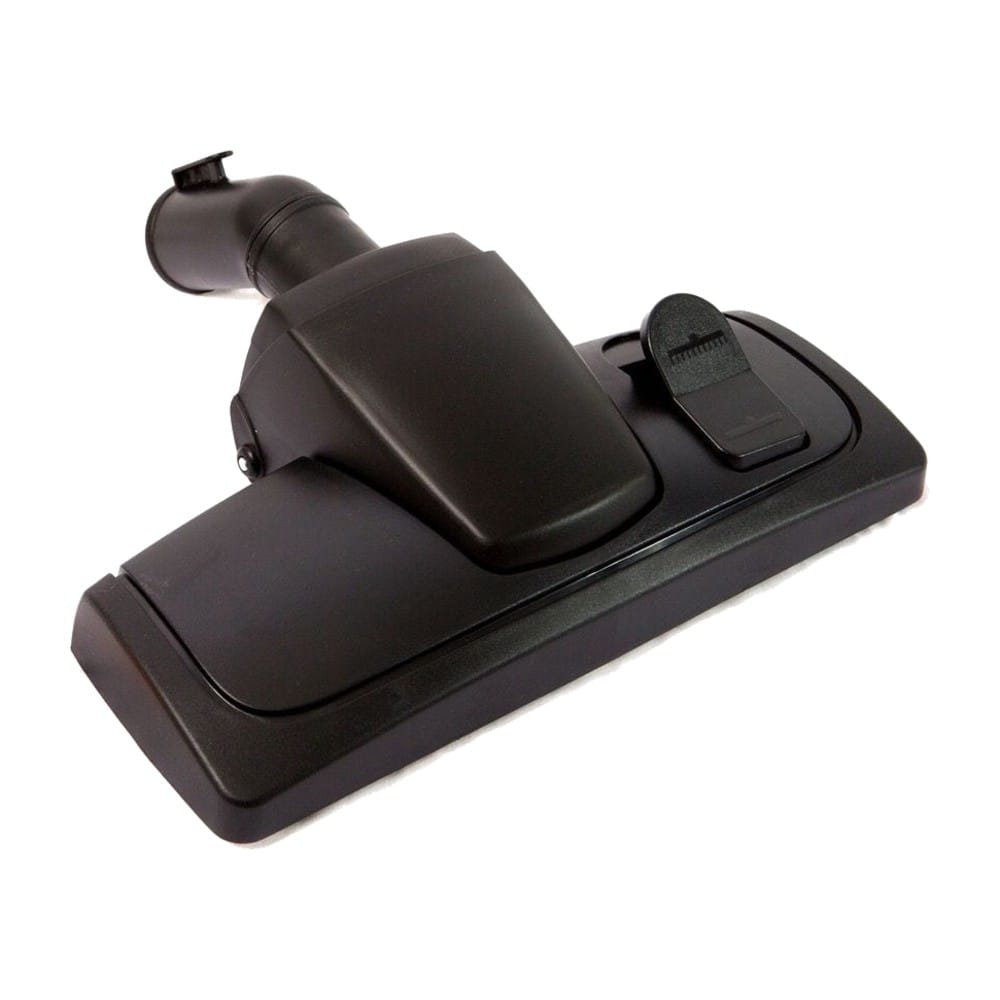

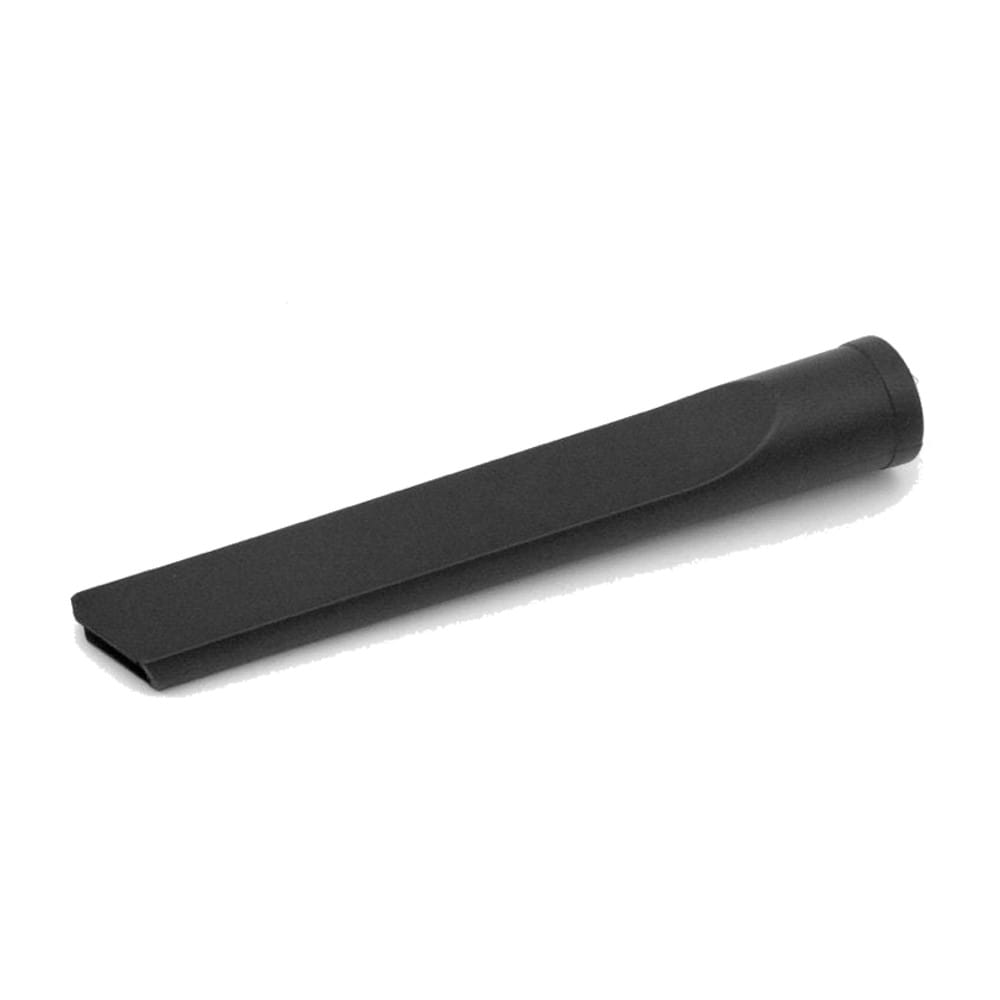

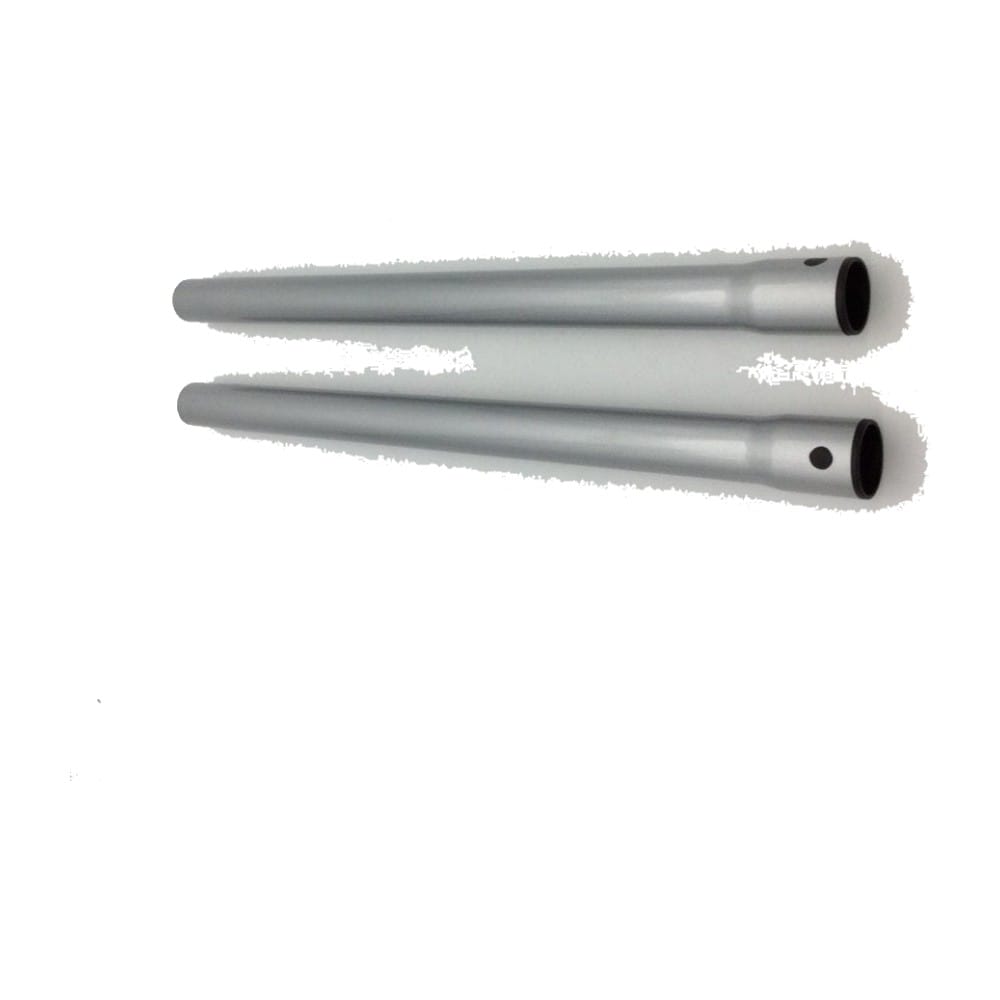

Five rows carry no dot. The extension wand, hose, floor tool, crevice tool and dusting brush are listed in the parts list as parts of this machine but are not drawn on the main assembly artwork, so there is no marker to click — the rows are here because the parts are real, and they link through in the usual way.
120-volt and 230-volt machines differ in three places. The power cord, the control board and the vacuum motor each have a separate part number for the 230-volt build, listed here as the A rows. Check the rating plate on your machine before ordering any of those three, or call us and read it to us.
Tornado TV 2 SS Accessories and Consumables

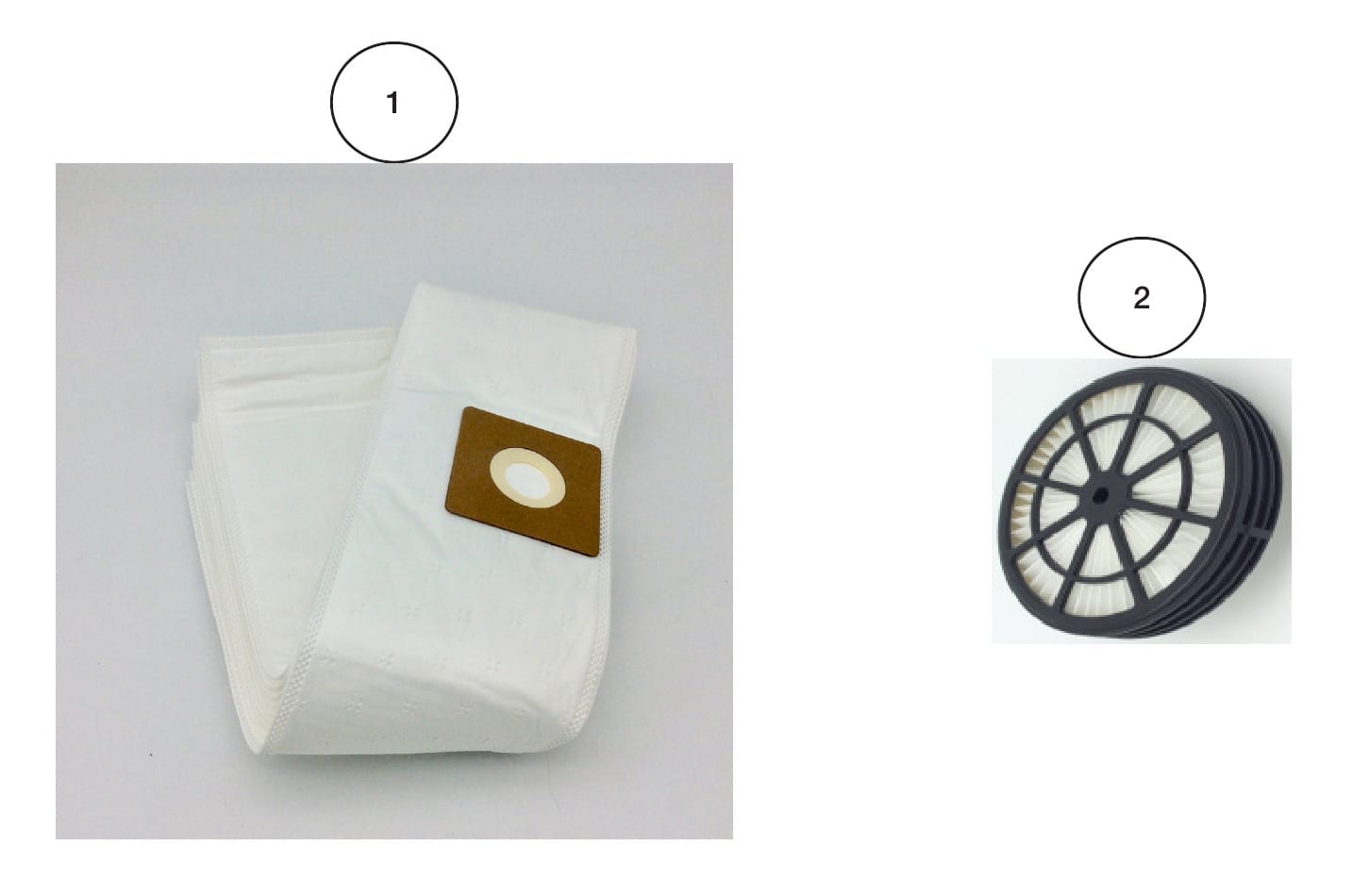

The drawing shows the two running consumables — the Clean Breeze disposable bag and the pleated HEPA filter — on their own sheet as well as on the main assembly. They are the same two part numbers in both places, so order once.
| # | Image | Part Description | Part Number | Price |
|---|---|---|---|---|
| 1 |  | Clean Breeze Disposable Filter Bag 10-Pack | 90025 | $41.99 |
| 2 |  | Pleated HEPA 12 Filter Kit | 90036 | $17.99 |
Tornado also publishes a wiring diagram for this machine. It carries no orderable part numbers, so there is no table for it — if you need the wiring layout for a repair, call us at 763-535-0770 and we will look it up with you.
Where a price is shown it is current. Parts marked Call have no published price in the dealer catalogue and we would rather quote you than invent a number. Browse the full Tornado TV 2 SS parts range, or see all Tornado vacuum parts. Manufacturer information is at tornadovac.com.
Frequently Asked Questions
How do I find the right Tornado TV 2 SS part on this diagram?
Find the part on the diagram and note the number printed beside it, then match that number to the first column of the table below. Every numbered part that The drawing marks on the drawing carries a clickable red dot that opens the part in a new tab. If the number you are looking at is not in the table, call us at 763-535-0770 with your model number and we will identify it.
Do these parts also fit the Simplicity Brio?
Twenty of the thirty-two do. Tornado builds the Tornado TV 2 SS and the Simplicity Brio on the same platform and catalogues those twenty under a single part number for both machines — the motor, the control board, the motor chamber and its seal, the insulation, the caster, the base and the whole tool set. Those listings are titled without a brand because they are genuinely one part for two machines. The other twelve, including the upper top cover, the tank, the handle, the wheels and the bags, are specific to the TV 2 SS.
My machine is 230 volt. Are the parts the same?
Mostly, but not all. The TV 2 SS is built in a 120-volt and a 230-volt version, and three parts differ between them: the power cord, the control board and the vacuum motor. The 120-volt machine takes 39260, 39262 and 39266; the 230-volt machine takes 39273, 39274 and 39275. Read the rating plate on your machine before ordering any of those three.
Why do some rows show “Call” instead of a price?
There is no published a price for every part number in the dealer catalogue we buy from, and we will not invent one. Nine parts on this machine are in that position. Ring 763-535-0770 with the part number and we will quote it and confirm availability.
Which parts wear out first on a TV 2 SS?
The consumables: the Clean Breeze disposable bags and the pleated HEPA filter. After those, the hose and the floor tool take the most handling, and the wheels and caster are the mechanical parts most likely to need replacing. The motor is a long-life item — check the bag, the filter and the seals before suspecting it.
Do you stock Tornado TV 2 SS parts?
We stock Tornado parts at our Crystal store and have been a Tornado dealer since 1956. Order here, or call 763-535-0770 and we will confirm the part against your machine before it ships. You are also welcome to bring the machine in to 5415 West Broadway, Crystal, MN 55428.
