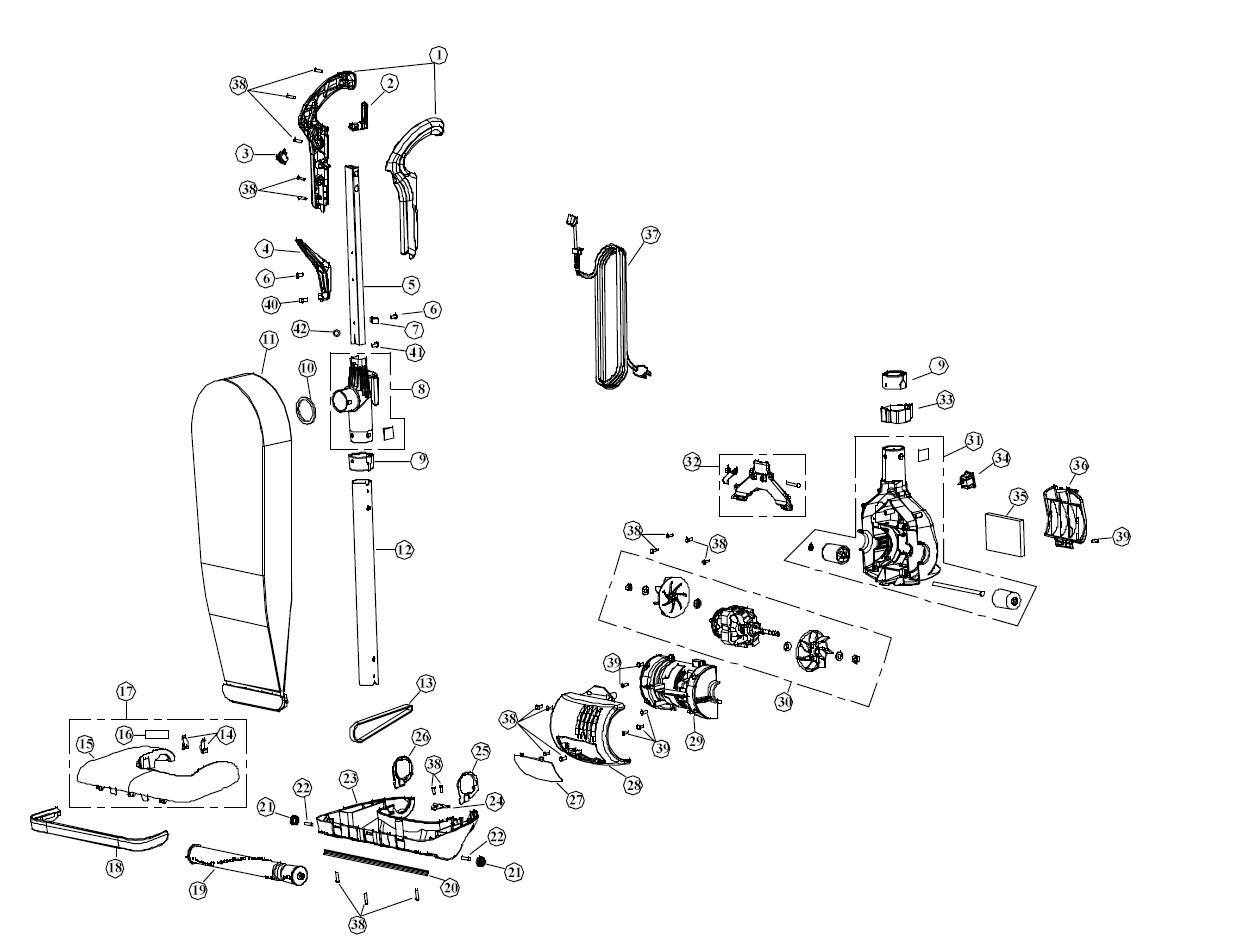

The main assembly breakdown for the Tornado CK-LW 13/1 ProLite commercial upright, covering model 97130 (115V) and model 97131 (230V). Hover a red marker on the diagram to see what it is, or click it to open that part. Every number below is taken from the factory breakdown for this machine.
1. Handle Assembly C431-4400C2. Upper Cord Hook B431-48143. Main Switch A428-20144. Front Cord Hook B431-49145. Handle Tube B431-4700B6. Screw #10 x 1/2 in A090-02006. Screw #10 x 1/2 in A090-02007. Cable Clamp A090-01008. Bag Mount Assembly D431-43009. Rubber Collar B431-42149. Rubber Collar B431-421410. Bag Mount Gasket B211-4414B11. Cloth Vacuum Bag Assembly D431-060012. Tube B431-400013. Flat Brushroll Belt B014-0814B14. Upright Stop with Spring Clips B016-1400B15. Yellow Nozzle Cover B017-3697B16. Nozzle Label B206-840017. Nozzle Cover Assembly D017-390018. Black Furniture Guard B029-0414B19. Wooden Brush Roll B012-300020. Squeegee B015-2414B21. Front Wheel B010-141421. Front Wheel B010-141422. Axle B010-090022. Axle B010-090023. Base B016-1314C24. Belt Guard B014-000025. Left Pivot B016-060026. Right Pivot B016-040027. Headlight Lens B018-021528. Yellow Lens Holder B051-069729. Motor Cover B051-0514B30. Motor Assembly — 120V D113-3300 / 230V 3972531. Motor Housing Assembly D051-000032. Duct Cover Assembly D051-040033. Lower Cord Clip B431-4114B34. Male Plug A028-021435. Foam Filter B015-020036. Filter Cover B051-0114C37. Power Cord 18/3 x 50 ft SJT A434-083138. Screw #8-18 x 5/8 in A732-831438. Screw #8-18 x 5/8 in A732-831438. Screw #8-18 x 5/8 in A732-831438. Screw #8-18 x 5/8 in A732-831438. Screw #8-18 x 5/8 in A732-831438. Screw #8-18 x 5/8 in A732-831438. Screw #8-18 x 5/8 in A732-831439. Screw #8 x 7/16 Hi-Lo A732-841439. Screw #8 x 7/16 Hi-Lo A732-841439. Screw #8 x 7/16 Hi-Lo A732-841440. Screw #8 x 1-1/4 in A090-030041. Screw 10-24 x 1 in A090-040042. Nyloc Nut A090-0500Parts on this diagram
Prices shown are current manufacturer list. Two part numbers carry no published price and are marked call-for-price rather than estimated. Twin City Vacuum has been selling and servicing Tornado equipment since 1956 — call 763-535-0770 with your model and serial number if you want a part confirmed before you order.
Accessories and consumables for this machine · All Tornado CK-LW 13/1 ProLite parts
Frequently Asked Questions
Which machines does this diagram cover?
The Tornado CK-LW 13/1 ProLite in both voltages – model 97130 (115V) and model 97131 (230V). Most of these parts also fit the Powr-Flite PF62EC, which is built on the same platform under a different brand. The main switch goes further still, fitting the Simplicity F3400, F3500 and F3500C and the Riccar SupraLite RSL3 and RSL3C as well.
My machine is 230 volt. Which parts are different?
The motor, and only the motor. The 115V machine takes part D113-3300 and the 230V machine takes part 39725. Everything else on this breakdown is common to both.
Why do two parts show Call instead of a price?
The manufacturer does not publish a price for the nozzle label (B206-8400) or the 230V motor (39725) in the dealer catalogue. Rather than print a guess, those two are listed as call-for-price. Ring 763-535-0770 and we will quote them and confirm availability.
Some numbers appear at several places on the drawing. Is that right?
Yes. The fasteners in particular are used in more than one location, so the same part number carries several markers – callout 38 appears at seven positions. Each marker opens the same product because it is the same part.
The light bulb has no number on the diagram. How do I order it?
The factory lists it against this machine without giving it a callout, so there is no marker for it. It is the last row in the table, part number A350-0000B.
